Allen-Bradley 1734-IB2 Installation Instructions Manual

Point i/o input modules series c
Hide thumbs Also See for 1734-IB2:

Advertisement

Table of Contents

See also: User Manual
Installation Instructions
POINT I/O Input Modules
Catalog numbers 1734-IB2, 1734-IB4, 1734-IB8, Series C

Table of Contents

Topic
Page
2
3
3
4
5
6
7
7
8
9
10
11
12
18
20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1734-IB2 and is the answer not in the manual?

Questions and answers

Related Manuals for Allen-Bradley 1734-IB2

Summary of Contents for Allen-Bradley 1734-IB2

  • Page 1: Table Of Contents

    Installation Instructions POINT I/O Input Modules Catalog numbers 1734-IB2, 1734-IB4, 1734-IB8, Series C Table of Contents Topic Page Important User Information Environment and Enclosure Preventing Electrostatic Discharge North American Hazardous Location Approval European Hazardous Location Approval Before You Begin About the Module...

  • Page 2: Important User Information

    2 POINT I/O Input Modules Important User Information Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication SGI-1.1 available from your local Rockwell Automation sales office or online at http://www.rockwellautomation.com/literature/) describes some important differences between solid-state equipment and hard-wired electromechanical devices.

  • Page 3: Environment And Enclosure

    POINT I/O Input Modules Environment and Enclosure ATTENTION: This equipment is intended for use in a Pollution Degree 2 industrial environment, in overvoltage Category II applications (as defined in IEC 60664-1), at altitudes up to 2000 m (6562 ft) without derating. This equipment is considered Group 1, Class A industrial equipment according to IEC/CISPR 11.

  • Page 4: North American Hazardous Location Approval

    4 POINT I/O Input Modules North American Hazardous Location Approval The following information applies when Informations sur l’utilisation de cet operating this equipment in hazardous équipement en environnements dangereux: locations: Products marked "CL I, DIV 2, GP A, B, C, D" are suitable for Les produits marqués "CL I, DIV 2, GP A, B, C, D"...

  • Page 5: European Hazardous Location Approval

    POINT I/O Input Modules European Hazardous Location Approval The following applies when the product bears the Ex Marking This equipment is intended for use in potentially explosive atmospheres as defined by European Union Directive 94/9/EC. DEMKO certifies that this equipment has been found to comply with the Essential Health and Safety Requirements relating to the design and construction of Category 3 equipment intended for use in Zone 2 potentially explosive atmospheres, given in Annex II to this Directive.

  • Page 6: Before You Begin

    6 POINT I/O Input Modules Before You Begin You can use these Series C POINT I/O™ Input Modules with DeviceNet and PROFIBUS adapters. If you are using RSLogix 5000 software, version 11 or higher, you can also use the modules with ControlNet and Ethernet adapters. Use this diagram to identify the external features of the module.

  • Page 7: About The Module

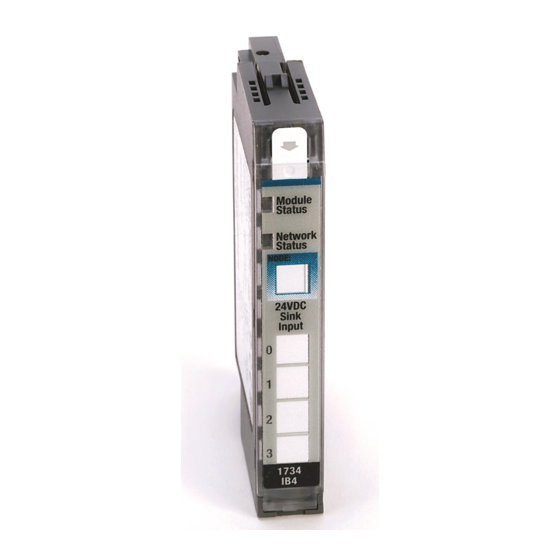

    POINT I/O Input Modules About the Module The POINT I/O sink input modules are available in two-input, four-input, and eight-input options. They install on mounting bases that mount on a DIN rail. All wiring is made to a Removable Terminal Block (RTB) mounted on the mounting base. Install the Mounting Base To install the mounting base on the DIN rail, proceed as follows: ATTENTION: This product is grounded through the DIN rail to chassis ground.

  • Page 8: Install The Module

    8 POINT I/O Input Modules Install the Module The module can be installed before or after base installation. Make sure that the mounting base is correctly keyed before installing the module into the mounting base. In addition, make sure the mounting base locking screw is positioned horizontal referenced to the base. WARNING: When you insert or remove the module while backplane power is on, an electrical arc can occur.

  • Page 9: Install The Removable Terminal Block

    POINT I/O Input Modules Install the Removable Terminal Block A Removable Terminal Block (RTB) is supplied with your wiring base assembly. This allows the mounting base to be removed and replaced as necessary without removing any of the wiring. To insert the Removable Terminal Block, proceed as follows: 1.

  • Page 10: Remove A Mounting Base

    10 POINT I/O Input Modules Remove a Mounting Base To remove a mounting base, you must remove any installed module, and the module installed in the base to the right. Remove the Removable Terminal Block, if wired. 1. Unlatch the RTB handle on the I/O module. 2.

  • Page 11: Communicate With Your Module

    These messages are mapped into the processor’s memory. This POINT I/O input module produces 1 Byte of input data (scanner Rx). It does not consume I/O data (scanner Tx). Default Data Map for 1734-IB2 Message size: 1 Byte Produces (Rx)

  • Page 12: Wire The Module

    12 POINT I/O Input Modules Wire the Module 1734-IB2 1734-IB4 1734-IB8 Module Module Module Module status Status Status Status Network Network Network Network status Status Status Status NODE: NODE: NODE: 24VDC 24VDC 24VDC Sink Sink Sink Input Input Input Status of...
  • Page 13 WARNING: To comply with the CE Low Voltage Directive (LVD), this equipment must be powered from a source compliant with the following: Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV). Wiring for 1734-IB2 – Sink Input In 0 In 1...
  • Page 14 14 POINT I/O Input Modules Wiring for 1734-IB4 – Sink Input In 1 In 0 2-wire 3-wire In 2 In 3 Prox Prox Prox Prox V = 12/24V DC C = Common Channel Input Common Voltage Connect common on 3-wire proximity switches.12/24V DC is supplied through the internal power bus. Publication 1734-IN051H-EN-E - April 2013...
  • Page 15 POINT I/O Input Modules Wiring for 1734-IB8 – Sink Input 3-wire 3-wire Prox Prox In 1 In 0 2-wire 2-wire Prox Prox In 2 In 3 3-wire 3-wire Prox Prox In 4 In 5 V = 12/24V DC 2-wire 2-wire C = Common Prox Prox...
  • Page 16 16 POINT I/O Input Modules Wiring Example for 1734-IB8 Using 2-Wire Proximity Switches Module Module Status Status Network Network Status Status DeviceNet System Power DeviceNet Power 1734 1734 OB8E Prox Prox Prox Prox Prox Prox Prox Prox 24V DC return 24V DC 45724 Terminal block with bus connector strip...
  • Page 17 POINT I/O Input Modules Wiring Example for 1734-IB8 Using 3-Wire Proximity Switches Module Module Status Status DeviceNet Network Network Status Status System Power DeviceNet Power 1734 1734 OB8E Prox Prox Prox Prox Prox Prox Prox Prox 24V DC return 24V DC Terminal block with bus connector strip Terminal block with...

  • Page 18: Interpret Status Indicators

    18 POINT I/O Input Modules Interpret Status Indicators Refer to the following diagram and table for information on how to interpret the status indicators. 1734-IB2 1734-IB4 1734-IB8 Module Module Module Module status Status Status Status Network Network Network Network status...
  • Page 19 POINT I/O Input Modules Indicator Status for Modules Status Description Module status No power applied to device. Green Device operating normally. Flashing green Device needs commissioning due to missing, incomplete, or incorrect configuration. Flashing red Recoverable fault. Unrecoverable fault – may require device replacement. Flashing red/green Device is in self-test mode.

  • Page 20: Specifications

    20 POINT I/O Input Modules Specifications POINT I/O Input Module – 1734-IB2, 1734-IB4, 1734-IB8 Attribute Value Inputs per module 1734-IB2 – 2 (1 group of 2), sinking 1734-IB4 – 4 (1 group of 4), sinking 1734-IB8 – 8 (1 group of 8), sinking...
  • Page 21 Attribute Value Indicators, module status 1 green/red, logic side Indicators, input status 1734-IB2 – 2 yellow, logic side 1734-IB4 – 4 yellow, logic side 1734-IB8 – 8 yellow, logic side POINTBus current, max 75 mA @ 5V DC Power dissipation @ 28.8V DC, max 1734-IB2 –...
  • Page 22 22 POINT I/O Input Modules Environmental Specifications Attribute Value Temperature, operating IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), IEC 60068-2-14 (Test Nb, Operating Thermal Shock): -20...55 °C (-4...131 °F) Temperature, surrounding air, 55 °C (131 °F) max.
  • Page 23 POINT I/O Input Modules Certifications Certification (when Value product is marked) c-UL-us UL-listed Industrial Control Equipment, certified for US and Canada. See UL File E65584. UL Listed for Class I, Division 2 Group A,B,C,D Hazardous Locations, certified for U.S. and Canada. See UL File E194810. European Union 2004/108/EC EMC Directive, compliant with: EN 61326-1;...
  • Page 24 RA-DU002, available at http://www.rockwellautomation.com/literature/. Allen-Bradley, Rockwell Automation, POINT I/O, and TechConnect are trademarks of Rockwell Automation, Inc. Trademarks not belonging to Rockwell Automation are property of their respective companies. Publication 1734-IN051H-EN-E - April 2013 Supersedes Publication 1734-IN051G-EN-E - August 2011 Copyright ©...
