A.3.13 Sun Keyboard and Mouse
AMP Inc. Part No. 749179-1
FOXCONN Part No. MH11083-K2-HT

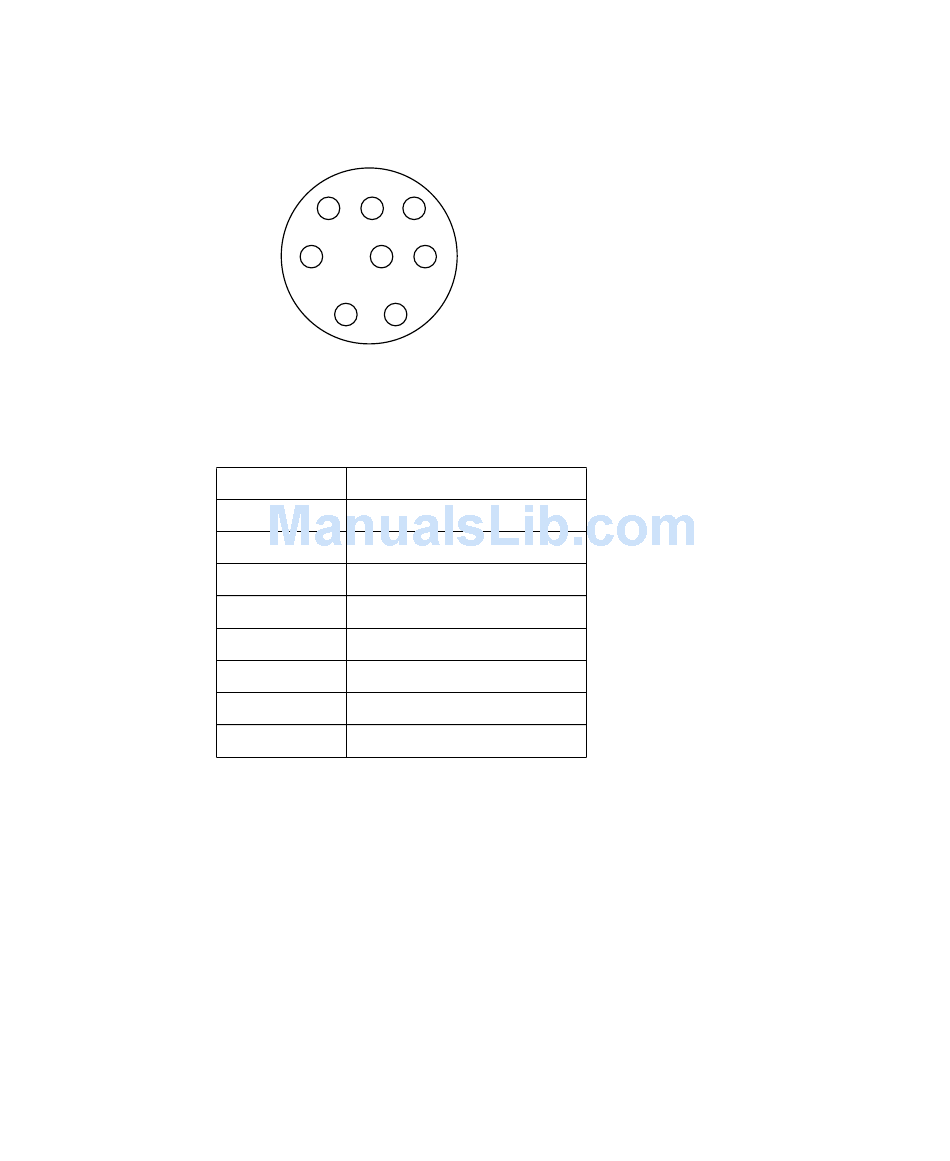

Mini DIN Connector
TABLE A-24
Pin #
1
2
3
4
5
6
7
8
8 7 6
5 4 3
2 1
Sun Keyboard/Mouse Connector Pinouts
Signal
GND
GND
VCC KBD
MS in
SUN_KBD_OUT
VCC KBD
POWER_ON_L
VCC
Appendix A Jumpers, Headers, Connectors, and Adapters
J0902
A-25
