A.3.12 EtherNet Transceiver Connector
Stewart Inc. Part No. SS-6488S-A-NF-SB02
MAXCONN Part No. MJHS-R-88
Twisted pair connection. Auto-configuration determines either 10BASE-T or
100BASE-T operation.
TABLE A-23
Pin #
1
2
3
4
5
6
7
8
A-24 SPARCengine Ultra AX i OEM Technical Manual • May 1999
1 8

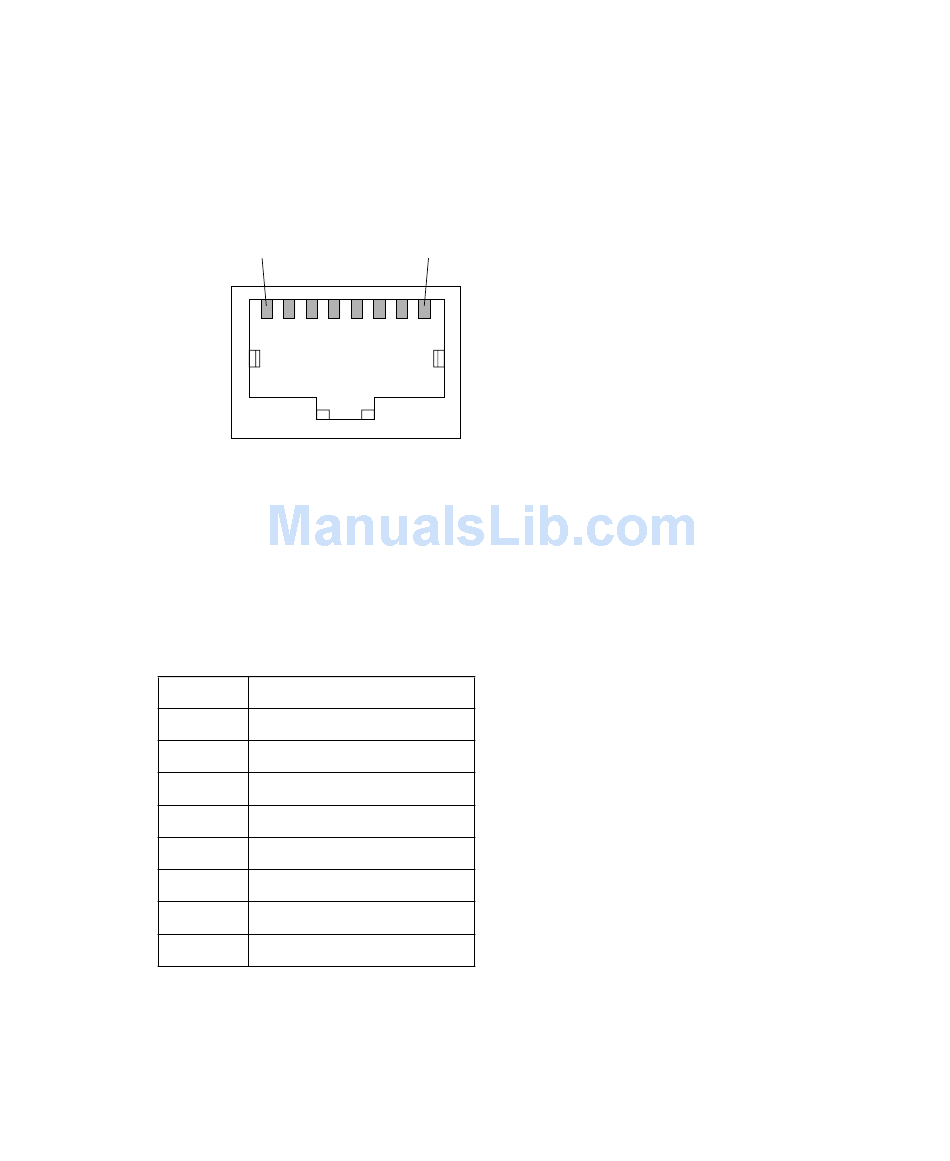

Type RJ-45 Connector
Signal Name
Transmit Data +
Transmit Data -
Receive Data +
Presence Detect Tx
Presence Detect Tx
Receive Data -
Presence Detect Rx
Presence Detect Rx
J2301
TP
