Parallel Port Female Connector J0901; Table A-22 Parallel Port Connector Pinouts - Sun Microsystems SPARCengine Ultra AXi Technical Manual

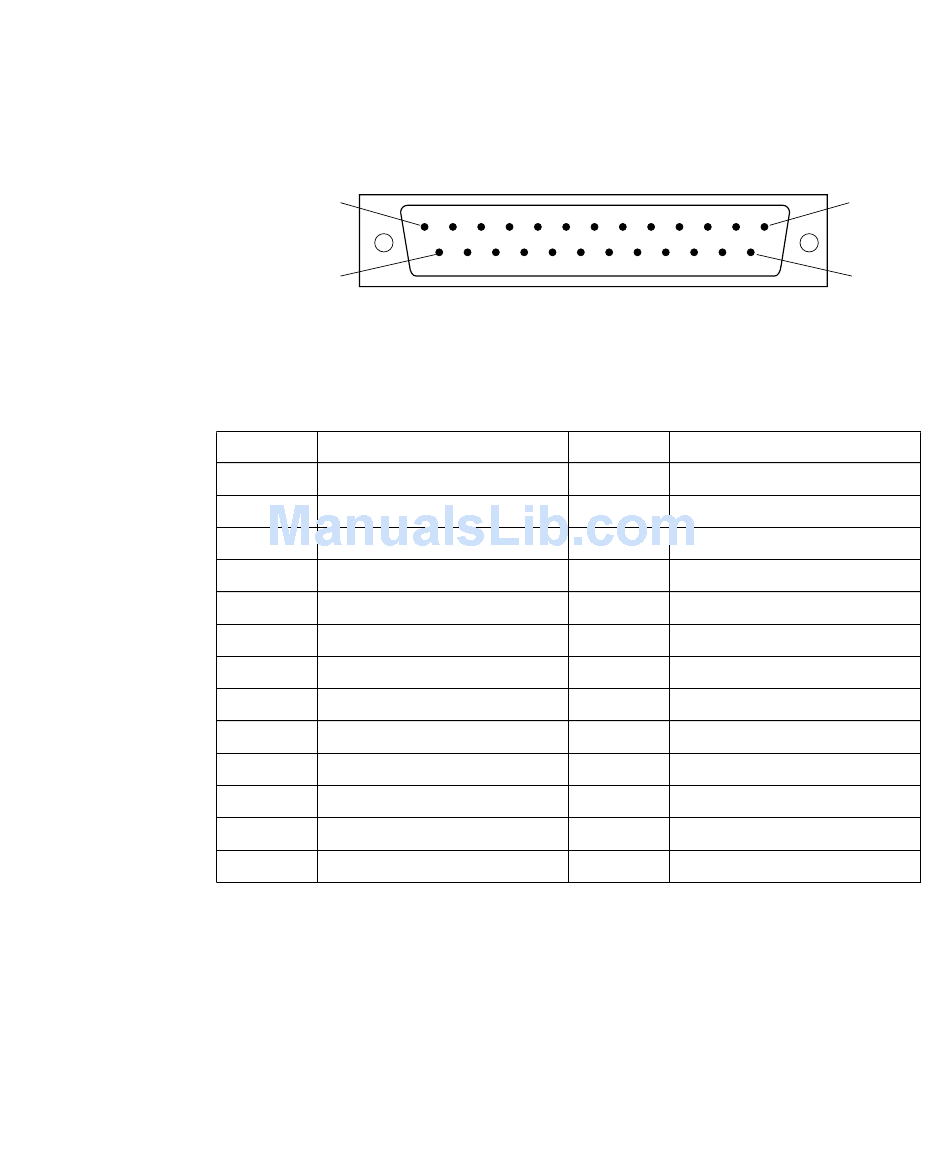

A.3.11 Parallel Port Female Connector
AMP Inc. Part No. 750601-4
TABLE A-22
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
13
25
Parallel Port Connector Pinouts
Signal Name
Strobe_out_l
Data[0]
Data[1]
Data[2]
Data[3]
Data[4]
Data[5]
Data[6]
Data[7]
Ack_out_l
Busy_out_l
Pe_in
Select_out
Appendix A
Pin # Signal Name
14 Auto_feed_out_l
15 Errpr_in_l
16 Init_out_l
17 Select_in_l
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
Jumpers, Headers, Connectors, and Adapters
J0901
1
14
A-23
