LED Indicators

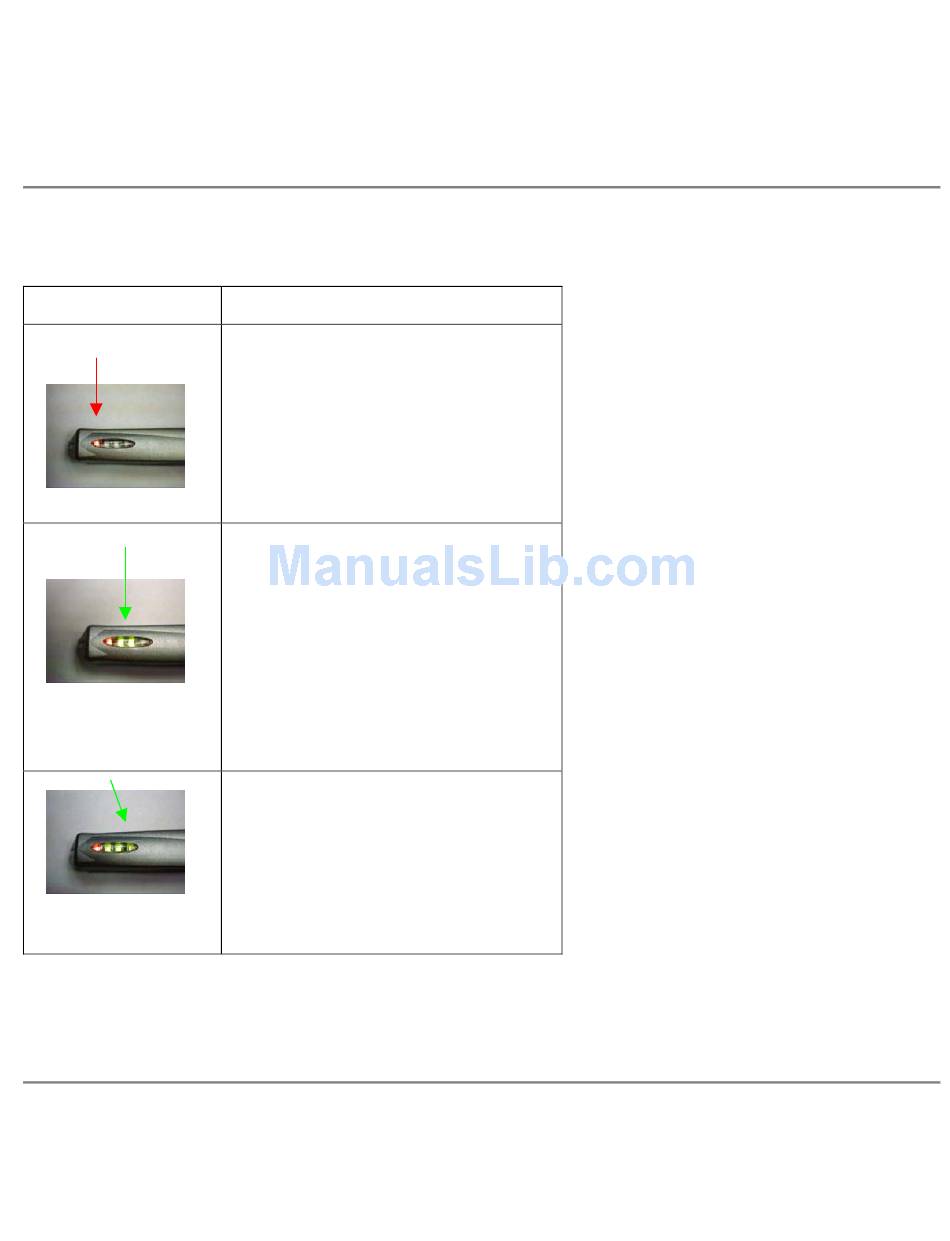

The 4 LED indicators at the top of the DocuPen™ from left to right indicate the following:
LED LIGHTS
LED #1
LED's #2 & #3
ALL 3 LED'S ON
READY TO SCAN
STANDARD MODE
LED #4
ALL 4 LED'S ON
READY TO SCAN
HI-RES MODE
SEE ALSO: Blinking LEDs also indicate error conditions.
The error conditions and their meanings are discussed on page 38.
Condition
Processor On/Off and Scan Speed Too
Fast
When you press the DocuPen™ power
button, this red light turns on, & also the #2, &
#3 LED indicating that the DocuPen™ is
ready for use.
This light also flashes if your scan speed
is too fast.
Available Memory Capacity
The state of the second and third lights
indicate the Memory capacity available for
scanning during power up:
• Both lights on
= more than 50% total
memory capacity available.
• 1 light on
= 25% to 50% total capacity
available.
• No lights on
= less than 25% total capacity
available.
• Lights flash after scanning
available. You must download images.
Scan Resolution
By default, the DocuPen™ 's scan resolution
is 100 dpi.
When you press the power button two times,
this light turns on, indicating that the
resolution is set at 200 dpi (Hi resolution
mode).
= no capacity
