BFT PHOBOS Installation Manual

BFT PHOBOS Installation Manual

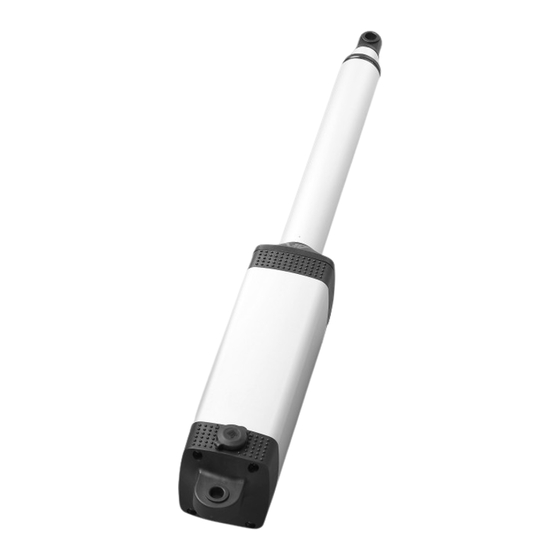

Electromechanical automation for swing gates
Hide thumbs Also See for PHOBOS:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

See also: Installer and User Manual
PHOBOS
D811317 15-04-02 Vers. 03
ELECTROMECHANICAL
AUTOMATION FOR
SWING GATES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHOBOS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BFT PHOBOS

Summary of Contents for BFT PHOBOS

  • Page 1 PHOBOS D811317 15-04-02 Vers. 03 ELECTROMECHANICAL AUTOMATION FOR SWING GATES...

  • Page 2: General Safety

    PHOBOS PHOBOS Thank you for buying this product, our company is sure that you will be more 3) TECHICAL SPECIFICATIONS Power supply : ........230V ±10% 50 Hz single-phase(*) than satisfied with the product’s performance. The product is supplied with a “Warnings”...

  • Page 3: Maintenance

    PHOBOS PHOBOS using adequately sized cramps “Z” welded to the back of the plate (fig. The pushing force is calibrated by means of the torque regulator in the control unit. The optimum torque must allow a complete opening or closing •...

  • Page 4: Troubles And Solutions

    PHOBOS PHOBOS • Remove the gearmotor from its fixing base. • Disassemble the control panel, if separate, and all installation components. • In the case where some of the components cannot be removed or are damaged, they must be replaced.
  • Page 5 PHOBOS PHOBOS Fig. 1 1027 1027 Fig. 2 ¡ α (mm) (mm) ¡ α AUTOMATION FOR SWING GATES AUTOMATION FOR SWING GATES...
  • Page 6 PHOBOS PHOBOS Fig. 3 Fig. 4 Fig. 6 Fig. 5 Fig. 7 + 4° - 4° AUTOMATION FOR SWING GATES AUTOMATION FOR SWING GATES...
  • Page 7 PHOBOS PHOBOS Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 3x1mm AUTOMATION FOR SWING GATES AUTOMATION FOR SWING GATES...
  • Page 8 PHOBOS PHOBOS Fig. 13 Fig. 14 Nero/Black/Noir/Schwartz/Negro/Preto Blu/Blue/Bleu/Blau/Azul/Azul Escuro Marrone/Brown/Brun/Braun/Marròn/Castanho Giallo-Verde/Yellow-Green/Jaune-Vert Gelbe-Grüne/Amarillos-Verdes/Amarelos-Verdes Fig. 15 AUTOMATION FOR SWING GATES AUTOMATION FOR SWING GATES...
