BFT Phobos N BT Installation Manual
Hide thumbs
Also See for Phobos N BT:
- Installation and user manual (29 pages) ,
- Installation manual (24 pages) ,
- Installer's reference manual (19 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for BFT Phobos N BT
Summary of Contents for BFT Phobos N BT

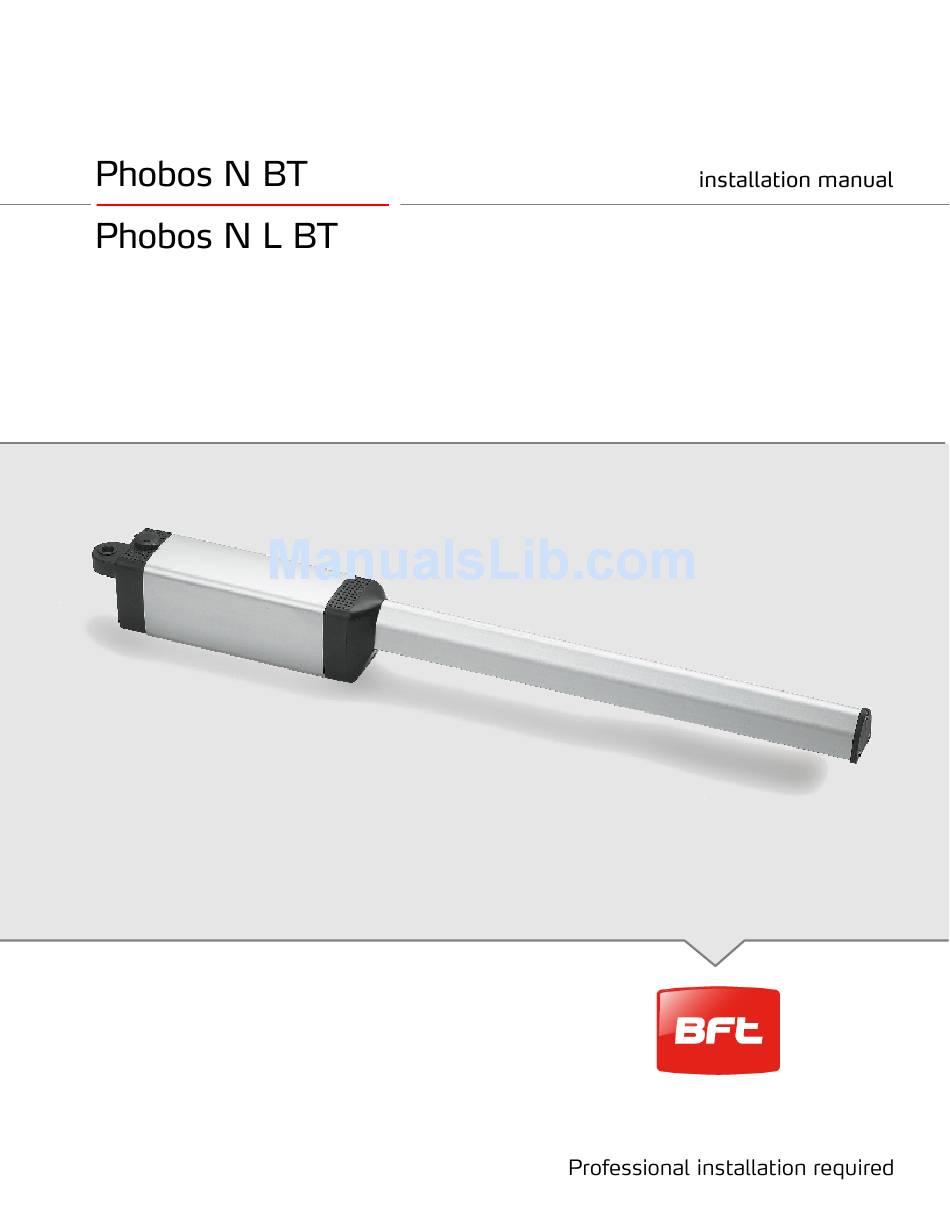

- Page 1 version 120626 tuned to you...
- Page 2 Important. This product is intended to be installed and serviced by a professional technician. The product warranty may be voided if installed or serviced by a unqualified person. Phobos N BT 32-1/2” OUTSIDE 90° 550 lbs 2” max hinge 10 feet...
-
Page 3: Installation Safety
APPLICATIONS AND CAPABILITIES PHOBOS N BT PHOBOS NL BT INSTALLATION SAFETY GATE AUTOMATION INSTALLATION SAFETY UL 325 VEHICULAR GATE CLASSIFICATION UL 325 ENTRAPMENT PROTECTION REQUIREMENTS UL 325 INSTALLATION RECOMENDATIONS OPERATIONAL SAFETY GENERAL SAFETY CHECKING INSTALLATION ADJUSTING OPERATING FORCE CONTROL OPERATIONAL SAFETY... - Page 4 – ● – ● – ● – ● ’...
- Page 5 • • ’ • • • • • • • • • • ’ • • • • • • • • • • ’ ’ ● ● ● ● ● ● ● ’ ● ● ● ● ’ ● ●...
- Page 6 ...
- Page 7 Model A & B — — — — Phobos N BT 5.25” ~ 5.75” — Phobos N L BT 7” ~ 7.5” Install the post bracket according to these dimensions. Whenever possible, use the maximum number within the range for A & B dimensions.
- Page 8 Model Phobos N BT 27.5” Phobos N L BT 32” When measuring C dimension, the gate must be at its fully closed position. The measurement for the C dimension is taken from the center of the actuator's pivot point, to the center of the attach point of the gate bracket.
- Page 9 WIRE THE MOTORS - Before attaching the actuator to the mounting brackets, wire the motor cable (included) and then install the protective cover as illustrated. The supplied rubber grommet for the cable must be installed to keep moisture out of the motor limit board..
- Page 10 1) SET TO MANUAL OPERATION - Disengage the drive gear by using the triangular key and turning clockwise. 2) SET THE CLOSE LIMIT - Push the gate to its fully closed position. Remove the screw that holds the proximity sensor at the front end of the actuator. Slide it back so that the back end of the sensor housing is 3-1/2”...
- Page 11 For actuators installed in areas where dirt and dust are a concern, maintenance should be done at shorter intervals. Keep the screw-drive lubricated using BFT grease part number: I101115. Do not apply grease if gears are dirty. If necessary, clean with degreaser before applying.
- Page 12 30 Months Limited Warranty ’ ● • • • • • ’...
