A s s e m b l y
G u i d e
X6100
X6000
AND
FOLDING ELLIPTICAL TRAINERS

Advertisement

loading
Need help?

Need help?

Do you have a question about the X6100 and is the answer not in the manual?

Questions and answers

Related Manuals for Vision Fitness X6100

Summary of Contents for Vision Fitness X6100

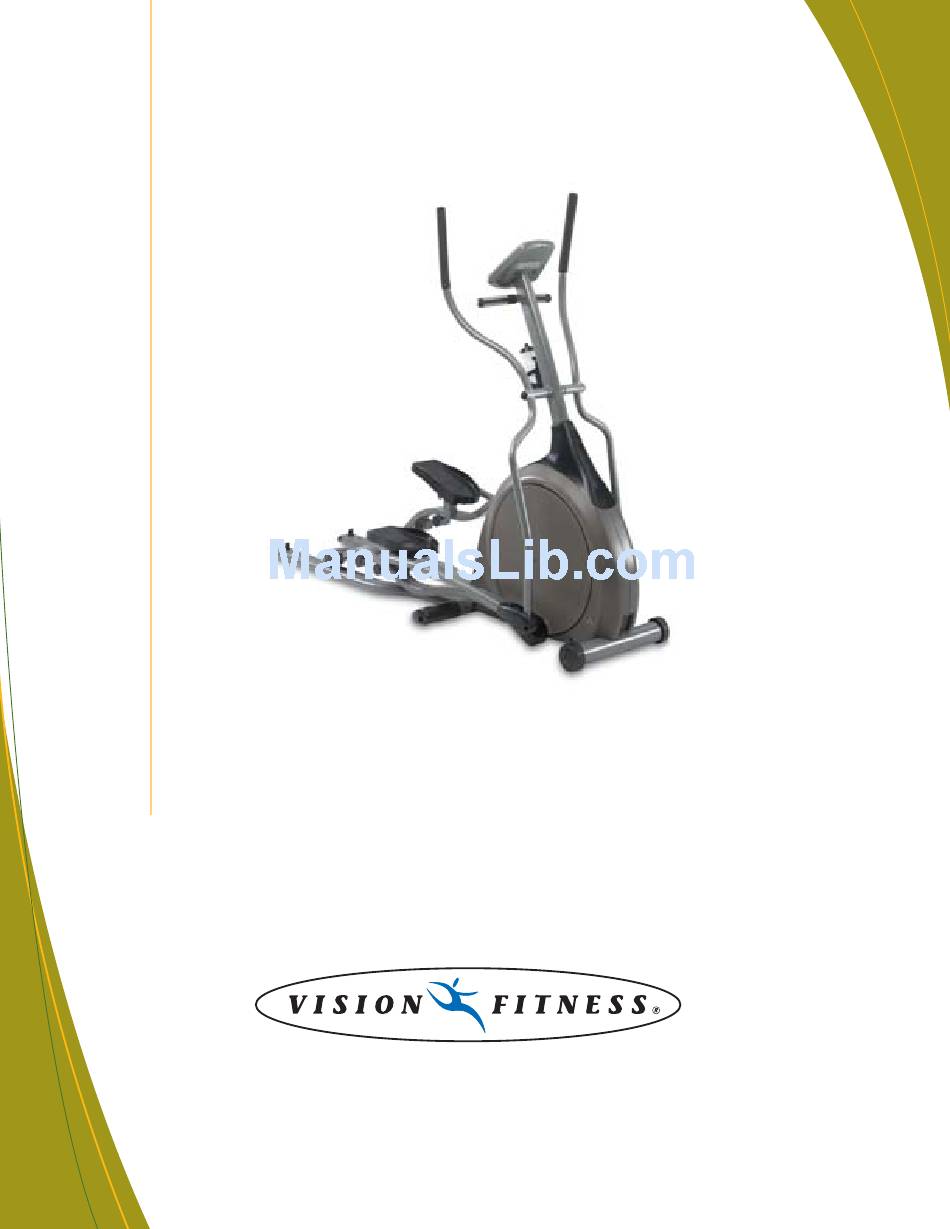

  • Page 1 A s s e m b l y G u i d e X6100 X6000 FOLDING ELLIPTICAL TRAINERS...
  • Page 2 A s s e m b l y G u i d e X6100 AND X6000 FOLDING ELLIPTICAL TRAINERS To avoid possible damage to this Elliptical Trainer, please follow these assembly steps in the correct order. Before proceeding, find your new Elliptical Trainer’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and enter this serial number on your Warranty Card and in your own records.
  • Page 3 Rear Stabilizers, Qty: 2 Pedal Support Bracket, Qty: 2 Water Bottle & Cage, Qty: 1 Mounting Support, Qty: 1 (X6000 ONLY) Power Supply, Qty: 1 (X6100 ONLY) Tension Knob, Qty: 1 (X6000 ONLY) Color-coded Hardware Bags Owner’s Guide Assembly Guide...
  • Page 4 ORANGE BAG GREEN BAG 8x14x1.5T Washer M8x20L Screw Quantity: 2 Quantity: 2 M8x13L Screw 20x29x1.5T Wavy Washer Quantity: 6 Quantity: 2 PINK BAG BLACK BAG 5x10x1T Washer Quantity: 1 8x14x1.5T Washer M8 Nut X6000 ONLY Quantity: 3 Quantity: 4 M5x70L Screw Quantity: 1 M4x15L PanHead Screw X6000 ONLY...
  • Page 5 ORANGE BAG STEP • For ease of assembly, place a block of wood (about 2” thick) under the rear of the frame. • Slide the axle through the plastic sleeves of the right guide rail and the frame. Slide the left guide rail onto the left side of the axle.
  • Page 6 BLUE BAG STEP • Slide a wavy washer (25x34x2T) onto the right rotation axle. Slide the bushing housing of the right pedal arm onto the right rotation axle. The pedal arm roller wheel should be placed in the groove of the guide rail. Secure the pedal arm to the rotation axle with a washer (8x30x1.5T) and screw (M8x20L).
  • Page 7 X6000 ONLY: Snap the tension knob mounting support on to the tension knob. Turn the tension knob to level X6000 X6100 16. Attach the knob cable to the ten- sion cable in the console mast. Secure the tension knob to the console mast with the washer (5x10x1T) and screw (M5x70L).
  • Page 8 GREEN BAG STEP • Slide a wavy washer (20x29x1.5T) on the lower link arm axle, which is located under the foot plate. Slide the axle through the bracket located on top of the pedal arm. • Secure the lower link arm to the pedal arm by attaching the pedal support bracket with three screws (M8x13L).

  • Page 9: Safety Guards

    BLACK BAG STEP • On the right side, slide the dual- O P T I O N A L action axle cover into place on the con- sole mast axle. Slide a wavy washer (25x34x2T) onto the axle. Slide the right dual-action arm on the axle.
  • Page 10 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com ©2005 Vision Fitness. All Rights Reserved. 1.05 Part #Z60EP32D-AG AG18.19PRD REV6...

This manual is also suitable for:

X6000
