A s s e m b l y
G u i d e
X6100
X6000
AND
FOLDING ELLIPTICAL TRAINERS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X6100 and is the answer not in the manual?

Questions and answers

Related Manuals for Vision Fitness X6100

Summary of Contents for Vision Fitness X6100

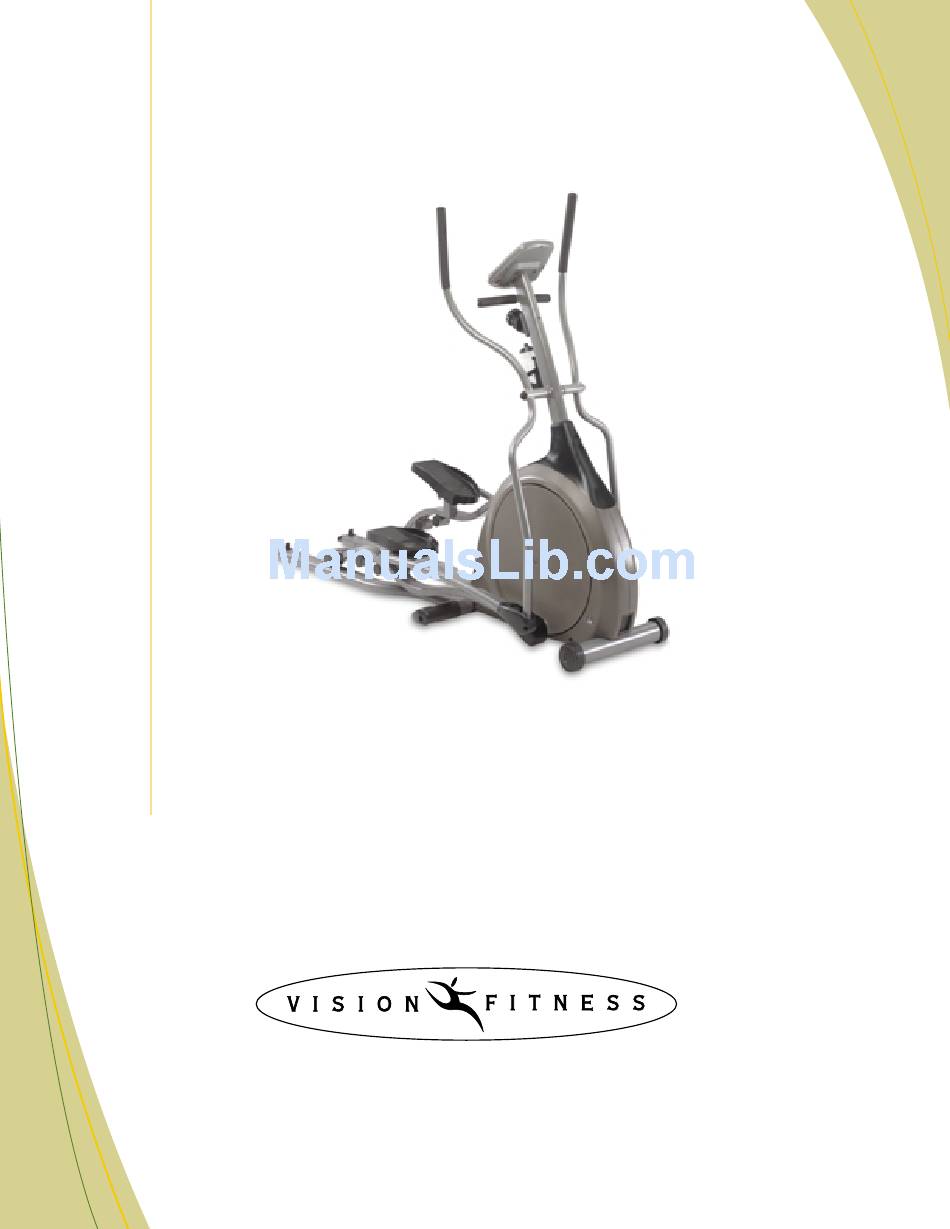

  • Page 1 A s s e m b l y G u i d e X6100 X6000 FOLDING ELLIPTICAL TRAINERS...
  • Page 2 A s s e m b l y G u i d e X6100 X6000 FOLDING ELLIPTICAL TRAINERS To avoid possible damage to this Elliptical Trainer, please follow these assembly steps in the correct order. Before proceeding, find your new Elliptical Trainer’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and enter this serial number on your Warranty Card and in your own records.
  • Page 3 Child Safety Guard Hardware Package, Qty:1 Rear Stabilizers, Qty: 2 Pedal Support Bracket, Qty: 2 Water Bottle & Cage, Qty: 1 Power Supply, Qty: 1 (X6100 ONLY) Tension Knob, Qty: 1 (X6000 ONLY) Color-coded Hardware Bags Owner’s Guide Assembly Guide...
  • Page 4 M8x13L Screw GREEN BAG ORANGE BAG Quantity: 6 M8.2x14x1.5T Washer M8.2x16x1.5T Washer Quantity: 2 Quantity: 4 M20.5x29x1.5T Wavy Washer M10.2x25x1T Washer Quantity: 2 Quantity: 2 M8x20L Screw Quantity: 2 BLACK BAG PINK BAG M8 Nut Quantity: 4 M5.5x10x1.2T Washer Quantity: 1 M8.2x14x1.5T Washer X6000 ONLY Quantity: 3...
  • Page 5 ORANGE BAG STEP • For ease of assembly place a block of wood (about 1” thick) under the rear of the frame. Attach the right stabilizer to the support axle with the washer (8.2x14x1.5T) and screw (M8x20L). Slide the axle through the right guide rail and on through the frame of the product.
  • Page 6 BLUE BAG STEP • Place a teflon washer (10.5x25x1t) on the threaded stud of the rotation linkage. • Place the bracket end of the pedal arm over the rotation linkage so that the threaded stud on the linkage inserts through the hole on the pedal arm bracket.
  • Page 7 Allen wrench. • Slide the rubber boot down the console mast and snap it in place on top of the side cover. X6100 X6000 X6000 ONLY: Turn the tension knob to level 16. Attach the knob cable to the tension cable in the console mast.
  • Page 8 GREEN BAG STEP • Slide wavy washer (M20.5x29x1.5t) on the lower link arm axle, which is located under the foot plate. Slide the axle through the bracket located on top of the pedal arm. • Secure the lower link arm to the pedal arm by attaching the pedal support bracket with three washers, (M10.2x25x1T) in the center hole and...
  • Page 9 O P T I O N A L BLACK BAG STEP SAFETY GUARDS STEP • On the right side, slide the dual action axle cover into place on the axle located on the console mast. Slide a • NOTE: Elliptical Trainer cannot be folded with the child safety guards in wavy washer (M25.5x34x2t) onto the place.
  • Page 10 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2003 Vision Fitness. All Rights Reserved. 2.03 Part #Z60EP32-AG1819PRD AG18.19PRD REV2...
