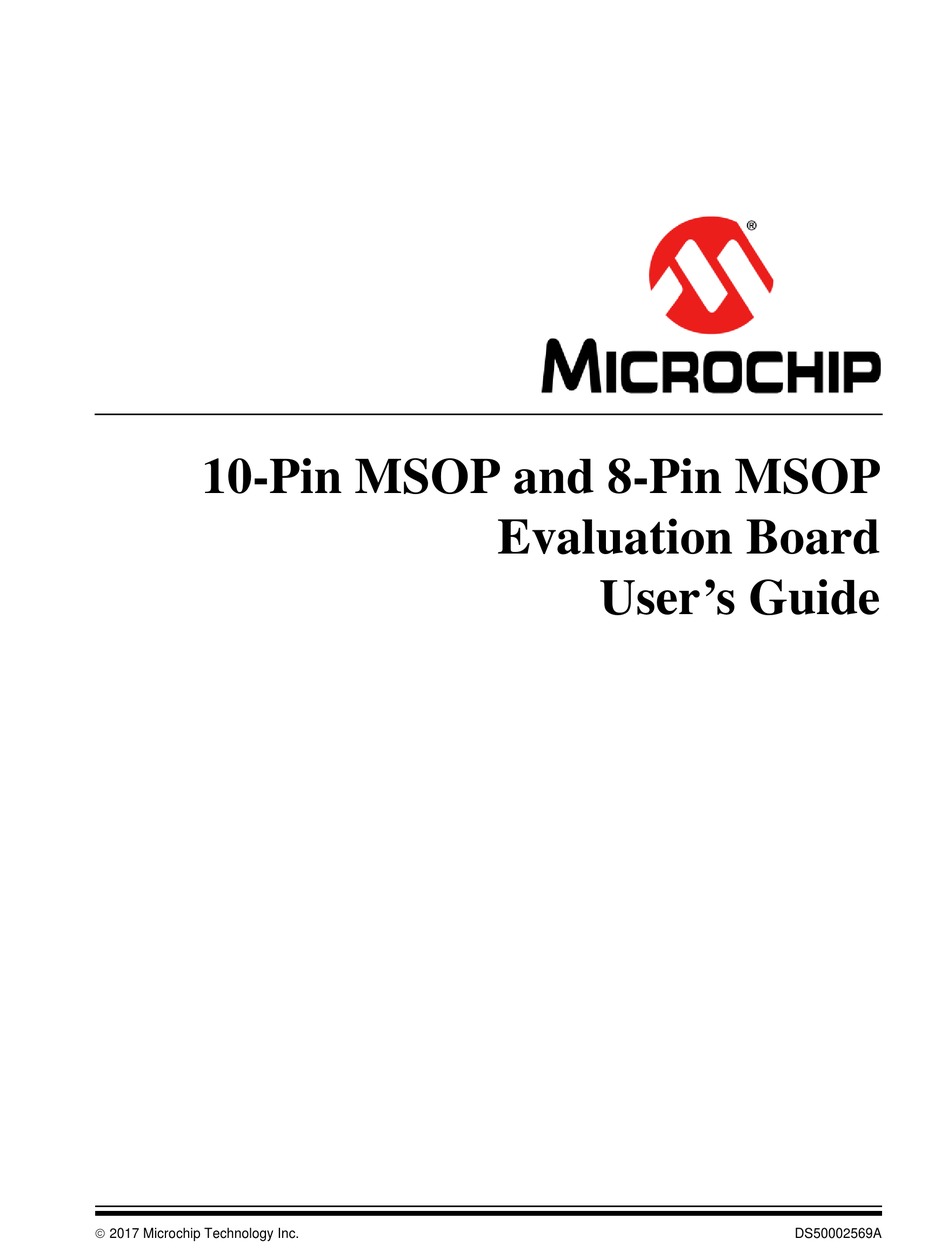

- Page 1 10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide 2017 Microchip Technology Inc. DS50002569A...
- Page 2 Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip’s quality system for the design Germany II GmbH & Co. KG, a subsidiary of Microchip Technology and manufacture of development systems is ISO 9001:2000 certified. Inc., in other countries.
-
Page 3: Table Of Contents
Chapter 1. Product Overview 1.1 Introduction ....................11 1.2 What is the 10-Pin MSOP and 8-Pin MSOP Evaluation Board? ....11 1.3 10-Pin MSOP and 8-Pin MSOP Evaluation Board Features ......12 1.4 What the 10-Pin MSOP and 8-Pin MSOP Evaluation Board Kit Contains ..................... - Page 4 A.6 Board – Top Copper ..................35 A.7 Board – Bottom Copper Layer ..............36 A.8 Board – Bottom Copper and Silk Layer ............37 A.9 Board – Bottom Silk Layer ................38 Worldwide Sales and Service ..................41 2017 Microchip Technology Inc. DS50002569A-page 4...
- Page 5 Object of Declaration: 10-Pin MSOP and 8-Pin MSOP Evaluation Board User's Guide EU Declaration of Conformity This declaration of conformity is issued by the manufacturer. The development/evaluation tool is designed to be used for research and development in a laboratory environment. This...
- Page 6 10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide NOTES: 2017 Microchip Technology Inc. DS50002569A-page 4...
-
Page 7: Preface
• The Microchip Web Site • Customer Support • Revision History DOCUMENT LAYOUT This document describes how to use the 10-Pin MSOP and 8-Pin MSOP Evaluation Board. The document is organized as follows: • Chapter 1. “Product Overview”– Important information about the 10-Pin MSOP and 8-Pin MSOP Evaluation Board. -
Page 8: Conventions Used In This Guide
Curly brackets and pipe Choice of mutually exclusive errorlevel {0|1} character: { | } arguments; an OR selection Ellipses... Replaces repeated text var_name [, var_name...] Represents code supplied by void main (void) user { ... 2017 Microchip Technology Inc. DS50002569A-page 8... -
Page 9: Recommended Reading
Preface RECOMMENDED READING This user's guide describes how to use 10-Pin MSOP and 8-Pin MSOP Evaluation Board. The following Microchip documents are available and recommended as supplemental reference resources: • MCP48FEB22-E/UN Data Sheet - “8-/10-/12-Bit Single/Dual Voltage Output Nonvolatile Digital-to-Analog Converters with SPI Interface” (DS20005429) •... - Page 10 Preface NOTES: 2017 Microchip Technology Inc. DS50002569A-page 10...
-
Page 11: Chapter 1. Product Overview
USER’S GUIDE Chapter 1. Product Overview INTRODUCTION This chapter provides an overview of the 10-Pin MSOP and 8-Pin MSOP Evaluation Board and covers the following topics: • What is the 10-Pin MSOP and 8-Pin MSOP Evaluation Board? • 10-Pin MSOP and 8-Pin MSOP Evaluation Board Features •... -
Page 12: 10-Pin Msop And 8-Pin Msop Evaluation Board Features
• Switching regulators WHAT THE 10-PIN MSOP AND 8-PIN MSOP EVALUATION BOARD KIT CONTAINS? The 10-Pin MSOP and 8-Pin MSOP Evaluation Board includes the following items: • 10 blank Printed Circuit Boards (PCB) (ADM00309) • Important Information Sheet 2017 Microchip Technology Inc. -
Page 13: Chapter 2. Installation And Operation
10-PIN MSOP AND 8-PIN MSOP EVALUATION BOARD USER’S GUIDE Chapter 2. Installation and Operation INTRODUCTION This blank printed circuit board allows 8- and 10-pin devices in the following package types to be installed: MSOP-10, MSOP-8 and DIP-10. This board is generic so that any of the listed devices may be installed. Refer to the device data sheet, however, for suitability of device evaluation. -
Page 14: Getting Started
10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide GETTING STARTED The pins of the 8-pin device are tied together with the upper pins of the 10-pin device (1-4 and 7-10); see Table 2-1. TABLE 2-1: MSOP FOOTPRINTS PIN CORRESPONDENCE MSOP—10... - Page 15 Figure 2-1 shows the evaluation board circuit, and an example of connecting signals from the J1 header to the device pins with jumper wire. FIGURE 2-1: 10-Pin MSOP and 8-Pin MSOP Evaluation Board Circuit. 2017 Microchip Technology Inc. DS50002569A-page 15...
-
Page 16: Hardware Description
10-Pin MSOP and 8-Pin MSOP Evaluation Board. FIGURE 2-2: 10-Pin MSOP and 8-Pin MSOP Evaluation Board - Top View. FIGURE 2-3: 10-Pin MSOP and 8-Pin MSOP Evaluation Board - Bottom View. - Page 17 Installation and Operation The 10-Pin MSOP and 8-Pin MSOP Evaluation Board is a four-layer board (62 mm x 48 mm). There are ten connection points/pads that can use either through-hole or surface-mount connector posts. The pad labeled V is connected to the PCB power plane, while the pad labeled V is connected to the PCB ground plane.
- Page 18 10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide The optional components of the 10-Pin MSOP and 8-Pin MSOP Evaluation Board are displayed in Table 2-2. TABLE 2-2: OPTIONAL COMPONENTS Component Comment C1, C2 Power supply bypass capacitors C3, C4...
-
Page 19: 10-Pin Msop And 8-Pin Msop Evaluation Board Description
Installation and Operation 10-PIN MSOP AND 8-PIN MSOP EVALUATION BOARD DESCRIPTION This section describes the working principles and limitations that should be taken into account when using the10-Pin MSOP and 8-Pin MSOP Evaluation Board. 2.4.1 Power and Ground The10-Pin MSOP and 8-Pin MSOP Evaluation Board has a V pad and a V pad. -
Page 20: Passive Components - Rux, Rdx, Rsx, C1 And C2
10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide Figure 2-6 to observe how to create an RC output filter by cutting the trace between the two Pads for component RS6 and then installing the desired resistor at that location. The capacitor is then installed at component RD6. -
Page 21: Device Footprints
2.4.5.1 MSOP-10 The 10-pin MSOP footprint has been laid out for packages that have a typical pitch of 0.50 BSC, a maximum lead width of 0.41 mm, and a maximum molded package width of 3 BSC. Ten-lead (or less) MSOP packages that meet these characteristics should be able to be used with this board. -
Page 22: Pickit Serial Or In-Circuit Serial Programming (Icsp) Interface (Header J1)
10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide 2.4.6 PICkit Serial or In-Circuit Serial Programming (ICSP) Interface (Header J1) Figure 2-8 shows the interface connection of the J1 Header. The V and V signals are connected to the appropriate power or ground plane. The other four signals are open and can be easily jumpered to any of the 10 P1 through P10 connection points. -
Page 23: Board Interconnect Header (Header J2)
The six connector signals are routed out to six holes, which should be wired to the appropriate pins. FIGURE 2-9: J2 Header Connections. 2017 Microchip Technology Inc. DS50002569A-page 23... -
Page 24: Evaluating The Mcp48Febxx Digital-To-Analog Converters
10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide EVALUATING THE MCP48FEBXX DIGITAL-TO-ANALOG CONVERTERS The MCP48FEBXX are single and dual-channel, 8-bit, 10-bit, and 12-bit, buffered voltage output Digital-to-Analog Converters (DAC) with nonvolatile memory and an SPI serial interface. The DAC reference voltage can be selected as the VREF pin, the device V or the internal band gap voltage. - Page 25 — MCP4811 — MCP4812 — MCP48FEB11 — MCP48FEB12 — MCP48FVB11 — MCP48FVB12 — MCP4911 — TC1321 -— MCP4728 — MCP4821 — MCP4822 — MCP48FEB21 — MCP48FEB22 — MCP48FVB21 — MCP48FVB22 — MCP4921 — 2017 Microchip Technology Inc. DS50002569A-page 25...
-
Page 26: Evaluating The 45X1 Digital Potentiometers
10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide EVALUATING THE 45X1 DIGITAL POTENTIOMETERS The MCP45x1 is a family of digital potentiometers that offers 7- and 8-bit resistor net- works as well as volatile and non-volatile memories options, in a MSOP 8-pin pack- age.The MCP45X1 8-pin package is shown in... -
Page 27: Evaluating The Pic12F1572 Device (Xlp Pic Microcontroller)
Figure 2-14 shows the PIC12F1572’s pin out, while Figure 2-15 shows an example connection for the ICSP interface and the connection of the crystal circuit to the secondary oscillator. FIGURE 2-14: PIC12F1572 Pinout. 2017 Microchip Technology Inc. DS50002569A-page 27... - Page 28 10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide FIGURE 2-15: PIC12F1572 ICP Header Example Connections Bottom View. FIGURE 2-16: PIC12F1572 ICP Header Example Connections Top View. 2017 Microchip Technology Inc. DS50002569A-page 28...
- Page 29 PIC12F508 Baseline 8-bit PIC12F509 Baseline 8-bit PIC12F510 Baseline 8-bit PIC12F609 Mid-Range 8-bit PIC12F615 Mid-Range 8-bit PIC12F1501 Enhanced Mid-Range PIC12F1571 Enhanced Mid-Range PIC12F1572 Enhanced Mid-Range PIC12F617 Mid-Range 8-bit PIC12F519 Baseline 8-bit PIC12LF1552 Mid-Range 8-bit 2017 Microchip Technology Inc. DS50002569A-page 29...
-
Page 30: Creating A System With A Pic12F1572 Microcontroller And Amcp48Feb22 Dac
10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide CREATING A SYSTEM WITH A PIC12F1572 MICROCONTROLLER AND A MCP48FEB22 DAC The following image illustrates how to connect two ADM00309 boards in order to obtain a functional system. One board hosts a PIC12Fxxxx, which is programmed using a PicKIT3 connected to J1, and controls a second board, which has a MCP48FEB22-E/UN device installed. -
Page 31: Microchip Technology Inc. Ds50002569A
Installation and Operation NOTES: 2017 Microchip Technology Inc. DS50002569A-page 31... - Page 32 10-Pin MSOP and 8-Pin MSOP Evaluation Board User’s Guide 2017 Microchip Technology Inc. DS50002569A-page 32...
-
Page 33: Appendix A. Schematic And Layouts
EVALUATION BOARD USER’S GUIDE Appendix A. Schematic and Layouts INTRODUCTION This appendix contains the following schematics and layouts for the 10-Pin MSOP and 8-Pin MSOP Evaluation Board: • Board – Schematic • Board – Top Silk Layer • Board – Top Copper and Silk Layer •... -
Page 34: A.3 Board – Schematic
10-Pin MSOP and 8-Pin MSOP Evaluation Board BOARD – SCHEMATIC 0805 0805 RU10 RS10 PAD01 PAD10 RD10 PD01 PD10 PD02 PD09 PD03 MSOP-10 PD08 PD04 PD07 PD05 PD06 PAD02 PAD09 PAD01 PAD10 PAD02 PAD09 MSOP-8 PAD03 PAD08 PAD04 PAD07 PAD05... - Page 35 Schematic and Layouts BOARD – TOP SILK LAYER 2017 Microchip Technology Inc. DS50002569A-page 35...
-
Page 36: Board - Top Copper And Silk Layer
10-Pin MSOP and 8-Pin MSOP Evaluation Board BOARD – TOP COPPER AND SILK LAYER 2017 Microchip Technology Inc. DS50002569A-page 36... -
Page 37: Board - Top Copper
Schematic and Layouts BOARD – TOP COPPER 2017 Microchip Technology Inc. DS50002569A-page 37... -
Page 38: Board - Bottom Copper Layer
10-Pin MSOP and 8-Pin MSOP Evaluation Board BOARD – BOTTOM COPPER LAYER 2017 Microchip Technology Inc. DS50002569A-page 38... -
Page 39: Board - Bottom Copper And Silk Layer
Schematic and Layouts BOARD – BOTTOM COPPER AND SILK LAYER 2017 Microchip Technology Inc. DS50002569A-page 39... -
Page 40: Board - Bottom Silk Layer
10-Pin MSOP and 8-Pin MSOP Evaluation Board BOARD – BOTTOM SILK LAYER 2017 Microchip Technology Inc. DS50002569A-page 40... -
Page 41: Worldwide Sales And Service
Thailand - Bangkok Tel: 408-735-9110 Sweden - Stockholm Tel: 86-29-8833-7252 Tel: 66-2-694-1351 Tel: 408-436-4270 Tel: 46-8-5090-4654 Fax: 86-29-8833-7256 Fax: 66-2-694-1350 Canada - Toronto UK - Wokingham Tel: 905-695-1980 Tel: 44-118-921-5800 Fax: 905-695-2078 Fax: 44-118-921-5820 2016 Microchip Technology Inc. DS50002569A-page 41 11/07/16...
