SECTION 3. OPERATING THE CAMERA

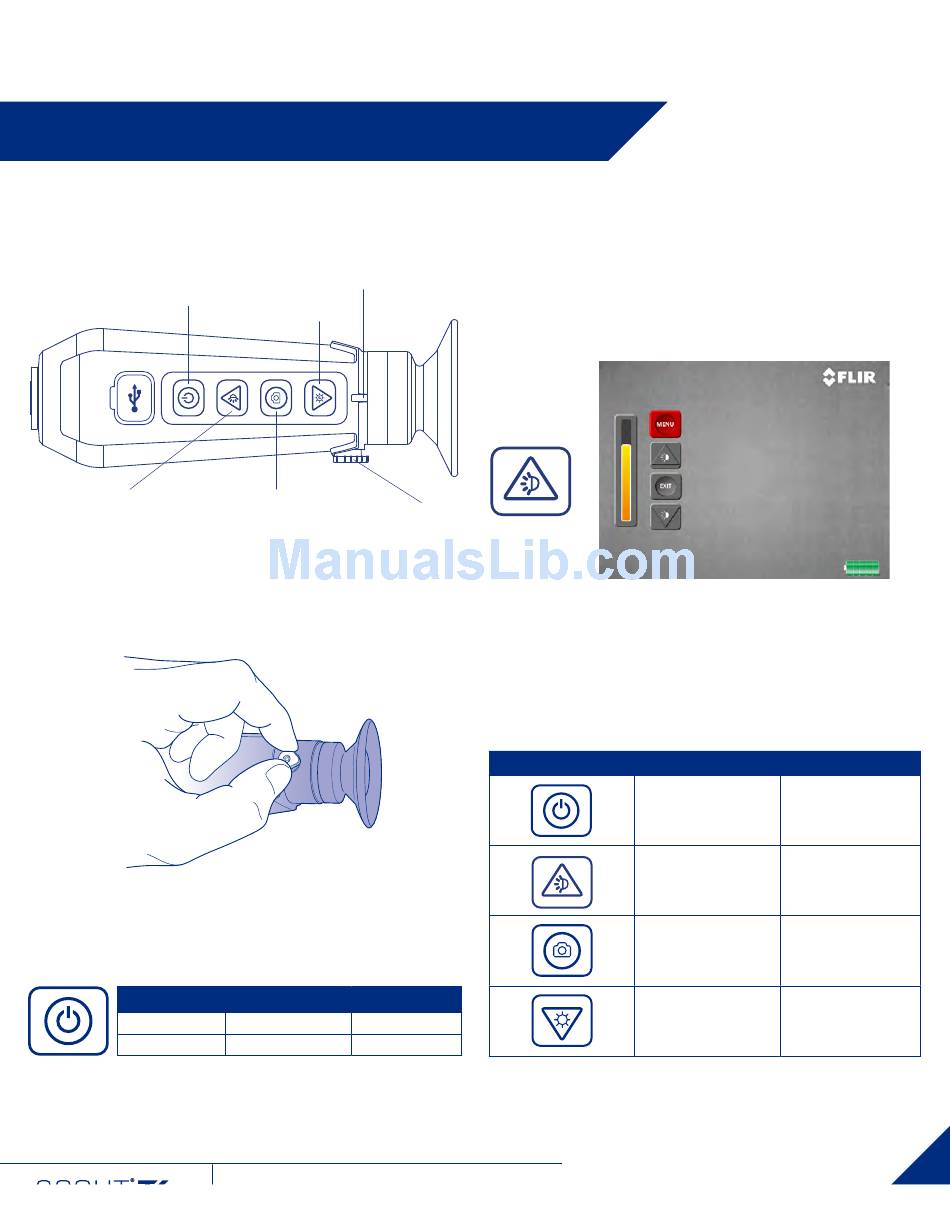

3.1 CAMERA BUTTONS
This section details the use of the camera's buttons.
Power
Display Brightness
3.1.1 DIOPTER ADJUSTMENT
While looking through the eyepiece, adjust the position of
the diopter lever to optimize the sharpness of the image in
the viewfinder.
3.1.2 POWER BUTTON
The Power Button performs the following functions:
CAMERA STATE
Camera OFF
Camera ON
info@FLIR-Direct.ca
Indicator LED
Color Palettes
Snapshot / Recording
Adjustable Diopter
SHORT PRESS LONG PRESS
Turns Power ON
Access User Menu Turns Power OFF
FLIR-DIRECT
U S E R M A N U A L #
3.1.3 DISPLAY BRIGHTNESS BUTTON
Press the Display Brightness Button to open the display
brightness selection screen. The display brightness can only
be adjusted while the display brightness selection screen
is displayed. There are 8 brightness levels which can be
selected. The graph on the left hand side of the display
brightness selection screen shows the current brightness.
While in the display brightness selection screen the buttons
have the following functionality:
BUTTON
P
N/A
4204190 - Rev 1
Display brightness selection screen
SHORT PRESS
Accesses User Menu
Increases the
display brightness
by one increment
Exits the brightness
selection screen
Decreases the
display brightness
by one increment
.ca
1.800.561.8187
LONG PRESS
Turns Power OFF
Quickly increases the
display brightness
N/A
Quickly decreases the
display brightness
