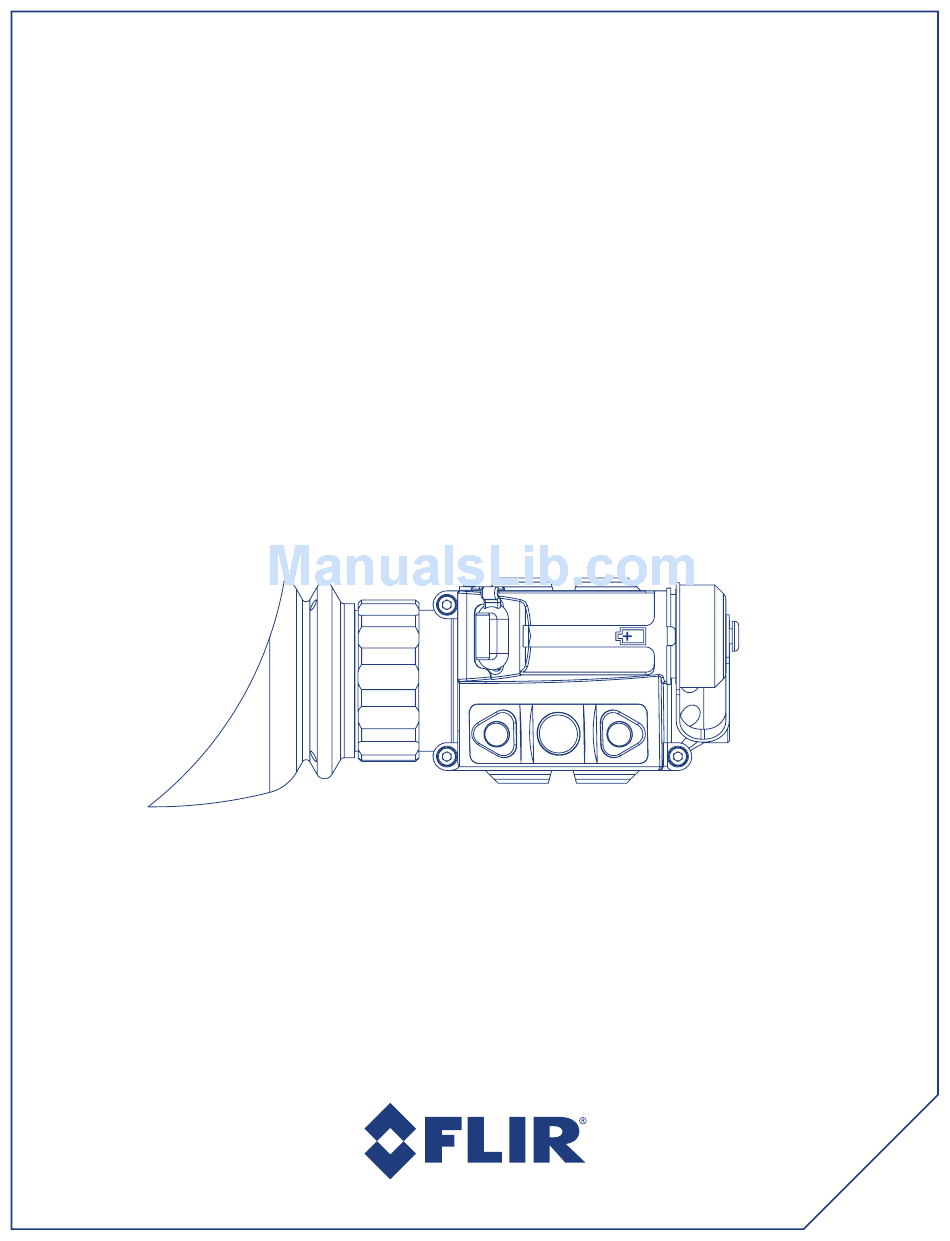

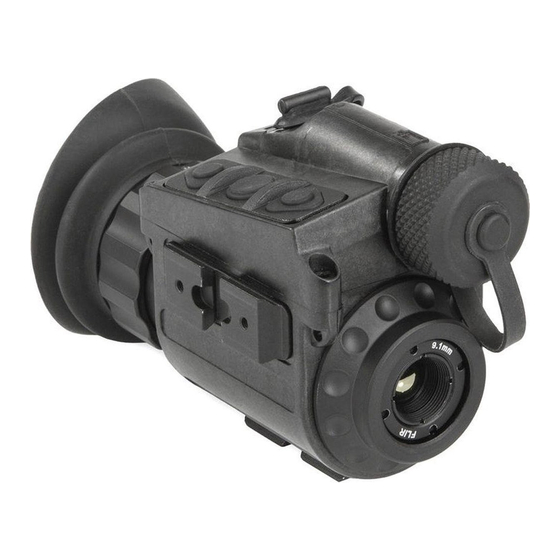

- Page 1 BREACH FLIR Multifunctional Thermal Imaging Monocular U S E R M A N U A L...
- Page 2 © 2018 FLIR Systems, Inc. All rights reserved worldwide. No parts Note 1: This equipment has been tested and found to comply with the of this manual, in whole or in part, may be copied, photocopied, limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
-
Page 3: Table Of Contents
CONTENT Page Safety Statement 1. Introduction 2. Getting Started 3. Operating the System 4. Main Menu 5. Display Indication 6. Maintenance 7. Warranty 8. Specifications BREACH FLIR U S E R M A N U A L... -
Page 4: Safety Statement
• Inadvertent sun damage is not considered a defect in material or workmanship, and is therefore not covered in the product warranty BREACH FLIR U S E R M A N U A L... -
Page 5: Introduction
• Integrated digital compass and digital inclinometer 1.2 INTRODUCTION • Onboard video recording and picture capture (internal storage) Built for the rigors of law enforcement, the FLIR Breach spots the • USB-C connectivity heat of suspects and objects in total darkness. Featuring the new FLIR •... - Page 6 • See more and further than low light night vision DETECTION I see something. IMAGE INTENSIFIED I RECOGNITION It’s a four-legged animal. THERMAL IMAGING IDENTIFICATION I can tell it is an Elk. BREACH FLIR U S E R M A N U A L...
-
Page 7: Getting Started
SECTION 2. GETTING STARTED 2.1 UNPACKING AND INSPECTING 2.2 BATTERY The FLIR Breach monocular is available with the features, options, and The FLIR Breach monocular uses one standard CR123A Lithium battery accessories described in this manual. Refer to the packing list enclosed or one CR123 type rechargeable battery with voltage from 3.0V to 3.7V. -
Page 8: Optional Equipment
Adapter for mounting of two Breach with individual side flip-up mechanism. Use of two ANHM000188 monoculars makes it dual-tube goggle/binocular. Hard Shipping/ Storage Case #101 ANHC000001 A protective case used for the shipping/ storage of the Breach and its accessories. BREACH FLIR U S E R M A N U A L... -
Page 9: Operating The System
While looking through the eyepiece, rotate the diopter adjustment ring to optimize the sharpness of the image in the viewfinder. 3.1.2 CONTROL PANEL BUTTONS The control panel buttons configures operational settings. ▲ ● ▼ BREACH FLIR U S E R M A N U A L... - Page 10 Main Menu selection. ▲/▼ buttons to navigate through the items on the menu. ● Push the button to view the settings available for the item selected. BREACH FLIR U S E R M A N U A L...
-
Page 11: Main Menu
▼ To navigate through the items on the PALETTE menu, press button. There are seven palettes available. Please see the following images for examples of Breach’s color palettes. BREACH FLIR U S E R M A N U A L... - Page 12 ITEM RANGE DEFAULT SKY/SEA INDOORS OUTDOORS Contrast 50 to 250 Sharpness 0 to 800 Smart Scene 0 to 100 Gain 25 to 800 AGC Speed 0 to 100 BREACH FLIR U S E R M A N U A L...
- Page 13 AGC SPEED AGC Speed - parameter that allows the user to control the refresh rate of Automatic Gain Control (AGC). See presets table for adjustment range and default value. BREACH FLIR U S E R M A N U A L...
- Page 14 Select POWER DOWN item of Main Menu and then push button to LEARN REMOTE ● turn monocular off. Or hold down button for more than 8 seconds. FACTORY RESET FW: xxxxxxxxxxxx BREACH FLIR U S E R M A N U A L...
-
Page 15: Display Indication
SECTION 5. DISPLAY INDICATION Information on the current operating state (battery status, active function, etc.) is continuously displayed, making field operation of the FLIR Breach simple and convenient. E-ZOOM VALUE E-ZOOM SCALE VIDEO COUNTER VIDEO RECORDING INDICATOR IMAGE COUNTER BREACH... -
Page 16: Maintenance
Do not use abrasive materials, such as paper or scrub brushes as this will possibly damage the lens by scratching it. Only wipe the lens clean when there is visible contamination on the surface. BREACH FLIR U S E R M A N U A L... -
Page 17: Warranty
Phone: 1-888-959-2259 or (650) 492-7755 7.2 PRODUCT REGISTRATION Fax: 1-888-959-2260 International Phone/Fax: (650) 492-7755 In order to validate the warranty on your product, FLIR Outdoor Email: OTS-Support@flir.com & Tactical Systems must receive a completed Product Warranty www.flir.com/ots Registration Card for each unit, or the Customer can complete the warranty registration form on our website by completing and submitting FLIR Outdoor &... -
Page 18: Specifications
The table below contains the latest product specifications for the Breach; however, with all of our products as they evolve and are further developed these specifications are subject to change without notice. SENSOR SPECIFICATIONS Detector Type FLIR BOSON 12um VOx Microbolometer Resolution 320 × 256 Refresh Rate... - Page 19 BREACH FLIR U S E R M A N U A L...
- Page 20 Equipment described herein is subject to US export regulations and may require a license prior to export. Diversion contrary to US law is prohibited. Imagery for illustration purposes only. Specifications are subject to change without notice. ©2018 FLIR Systems, Inc. All rights reserved. Rev.1 - 01/23/2018 17-3483-OTS...
