FLIR Scout Quick Start Manual

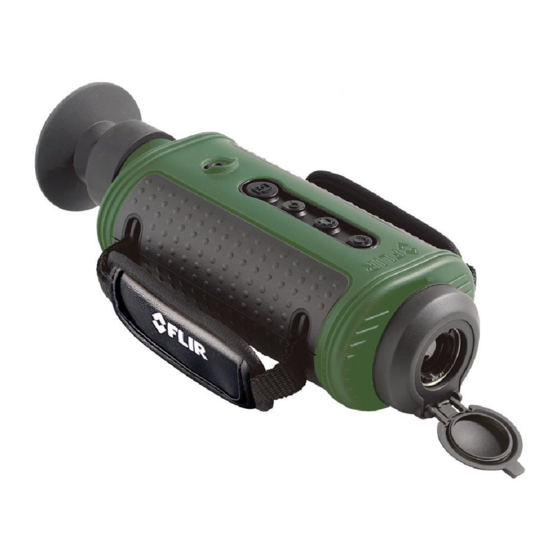

SCOUT
Q uick St ar t Guide

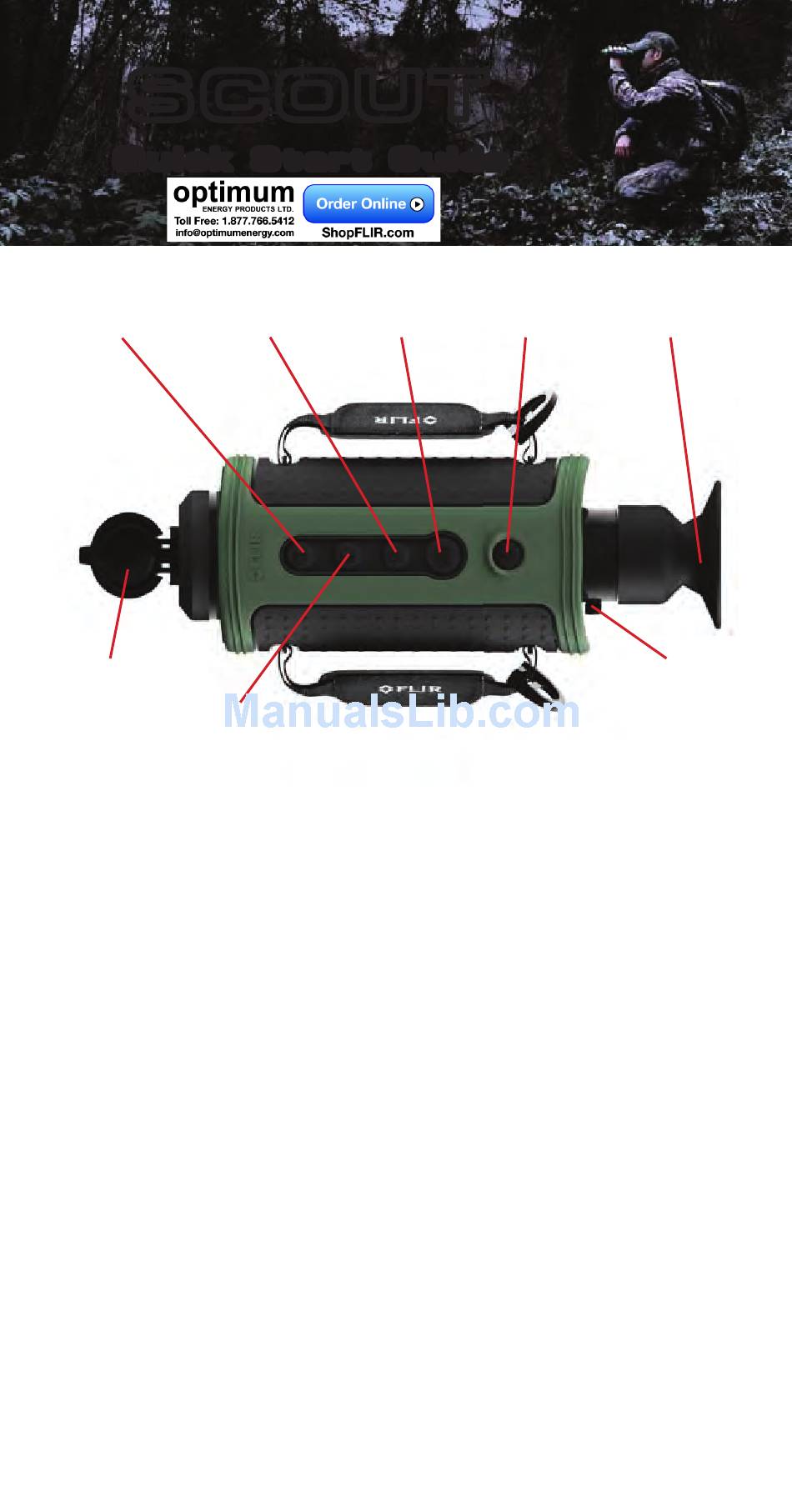

Display
Brightness
Lens Cap
White Hot/
Black Hot/
Instalert
Power Button – The Scout has 3 power modes: On, Off, and Standby.
• On – Press
approximately 90 seconds, during which there is a fast-fl ashing red LED on
the eyepiece display.
• Standby - After the camera is on, pressing the Power button again will
put the camera in Standby mode, during which there is a slow-fl ashing red LED on
the eyepiece display.
• Off - Push and hold the power button for approximately 8 seconds to turn Scout off;
a shutdown timer will be shown on the display.
Capture Button* – Capture still images by pressing and releasing the Capture
button. Capture video clips by pressing and holding the Capture button. Images and video
are saved to the SD card.
Display Brightness – Adjusts the brightness of the Scout's eyepiece display.

White/Black Hot/Instalert

light grey. In the Black Hot mode, hotter items appear as black or dark grey. In the Instalert
mode, the hottest objects and/or surfaces are highlighted
four user-selectable levels.
2× Zoom* – When enabled, causes the image to zoom to 2×.
Diopter Controls – The diopter adjustment knob allows a ±2 diopter range.
