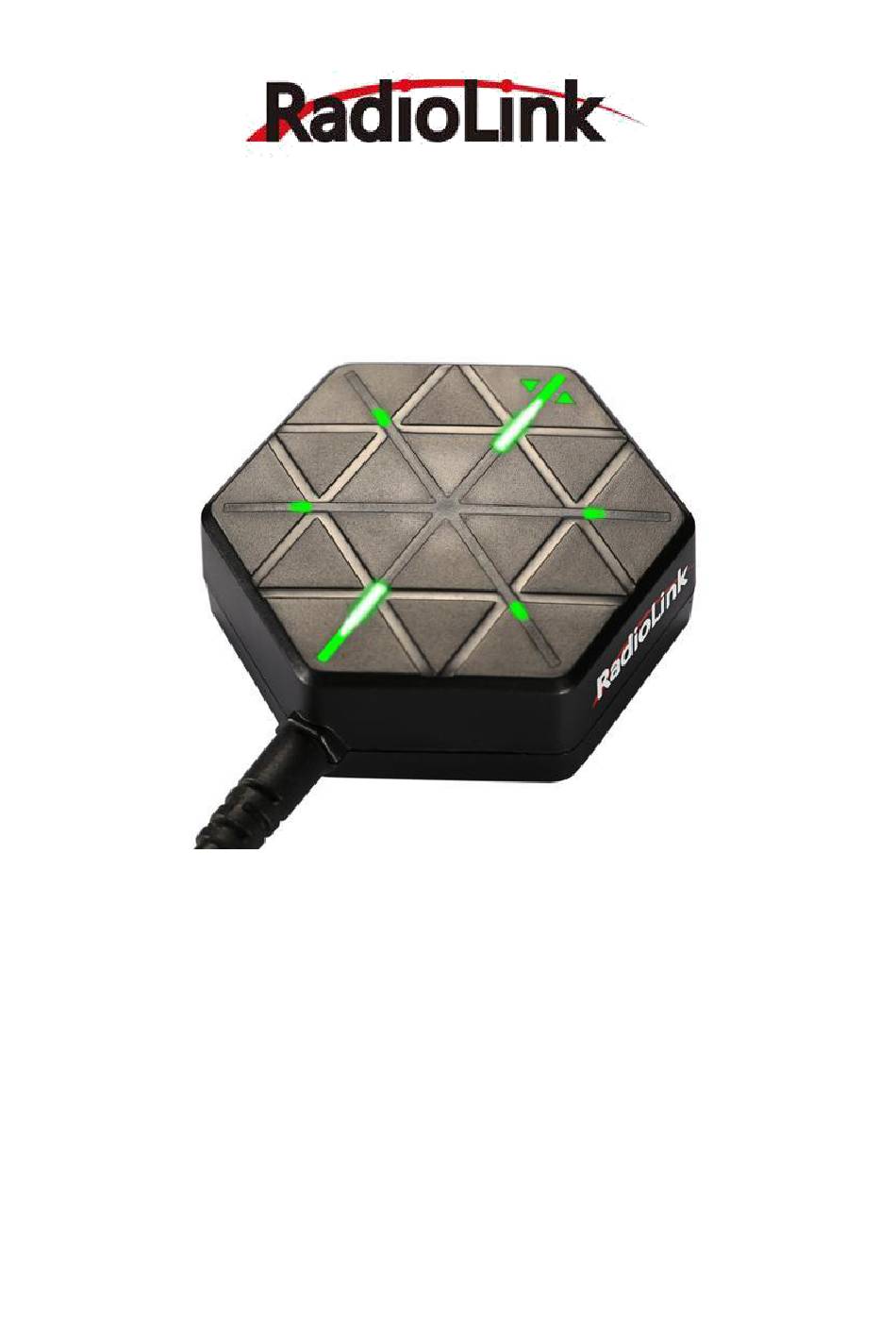

- Page 1 Radiolink SE100 (M8N GPS) User Manual Compatible with APM and PIXHAWK...
- Page 2 More information please check our website as below: http://www.radiolink.com Support and Service: It is recommended to have your RadioLink equipment serviced annually during your hobby’s “off season” to ensure safe operation. Please be sure to regularly visit the Service and Support website at www.radiolink.com. This page includes extensive programming, use, set up and safety information.

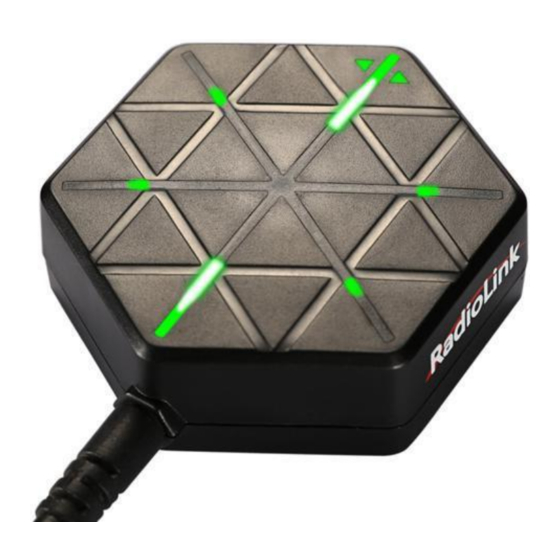

- Page 3 SE100 is suitable for all the open-source flight controller such as PIXHAWK, APM, NAZE32 and so on. RadioLink M8N GPS SE100 Configuration GPS decoder chip: RadioLink M8N GPS SE100 use the best receiving chip of first GPS brand u-blox UBX- M8030(M8), 72-channel, MMIC BGA715L7 from Infineon, is much better than single GNSS 7N.
- Page 4 Positioning Indicate Humanized positioning green LED indicate. After power-on, the indicators near the antenna are always on; when the satellite is found, the indicators near the antenna are always on, and the other indicators are blinking. Definition of Connector Connect to PIX: Red wire-VCC, White wire-TX, Orange wire-RX, Black wire-GND, Green wire-CLK, Yellow wire-SDA GPS Mainboard: White wire-RX, Orange wire-TX, Red wire-VCC, Black wire-GND, Green wire-CLK, Yellow wire-SDA Direction Indicate Arrows shows the front, point to the same direction as the flight controller.
- Page 5 GPS connect to PIXHAWK Connect to APM 6pin for GPS connect port ：Pay attention to the installation direction, the GPS direction is consistent with the flight control direction; 4pin for I2C connect port： Take off the internal compass of APM. Otherwise, there is no data even if the GPS compass is plugged in.
- Page 6 If you use with flight controller APM, please choose APM and External Compass and then click Live Calibration to calibrate the compass. Calibrate like this picture shows, click Done to finished the calibrate. Click OK to save the settings.
- Page 7 ＜600， please try to cancel Compass #1 or Compass #2.
