Disassembly

Removing and Replacing the Battery

E
18
All batteries can cause property damage and/or bodily injury such as burns if a
conductive material such as jewelry, keys, or beaded chains touch exposed terminals.
The conductive material may complete an electrical circuit (short circuit) and
become quite hot. Exercise care in handling any charged battery, particularly when
placing it inside a pocket, purse, or other container with metal objects.
1. Ensure the phone is turned off.
2. Remove the battery cover as described in the procedures.
3. Lift the top of the battery near the antenna out of the battery compartment as
shown in Figure 5.
4. Lift the battery out of the phone.

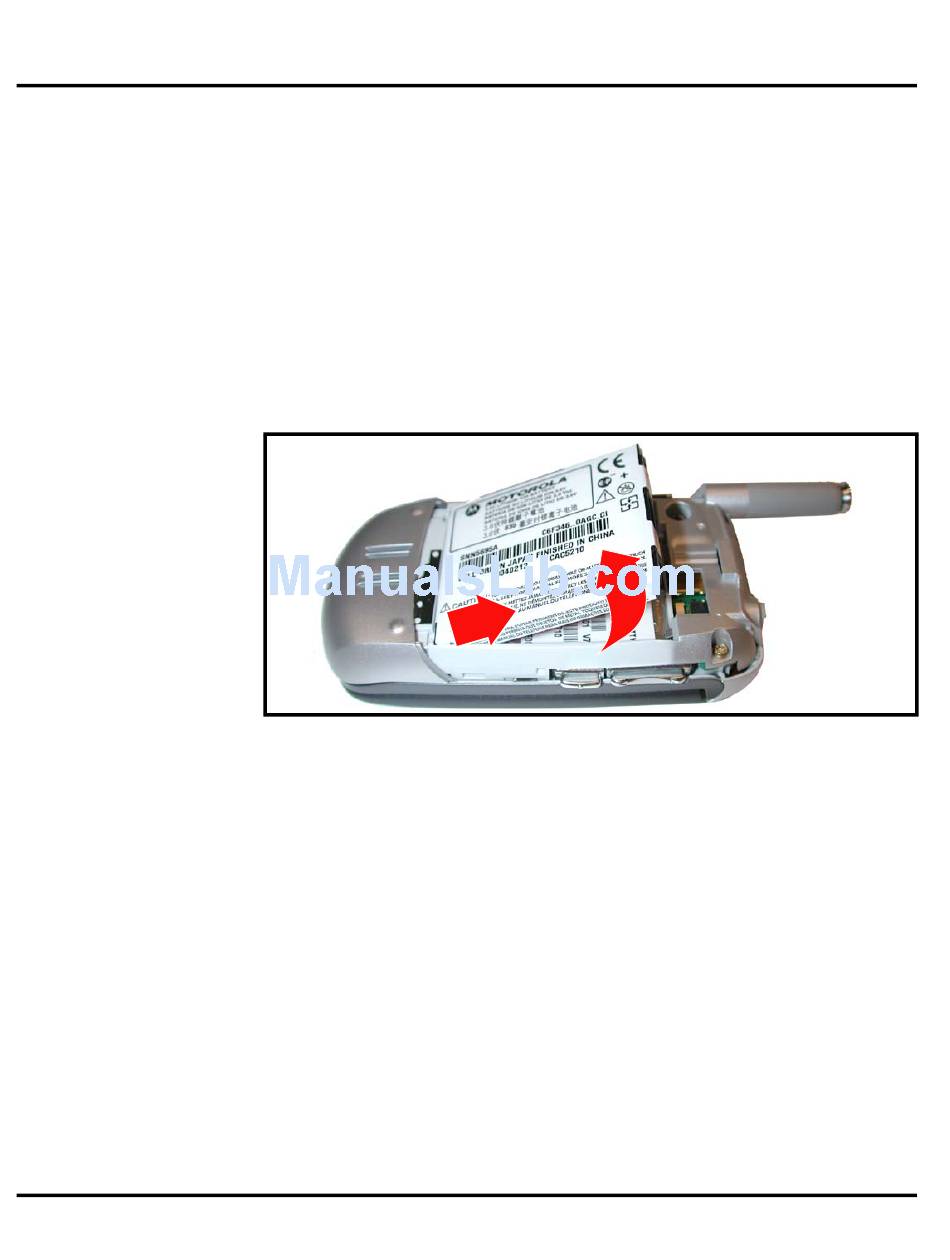

Figure 5. Removing the Battery
5. To replace, align the battery with the battery compartment so the contacts on
the battery match the battery contacts in the phone.
6. Insert the battery, printed arrow first, into the battery compartment and push
down.
7. Insert the ridge at the bottom of the housing into the base of the phone, then
push the battery down and snap it into place.
January 24, 2006
1
2
E815, E816 CDMA
040336o
6809492A18-B
