Condenser Above the Compressor Chiller

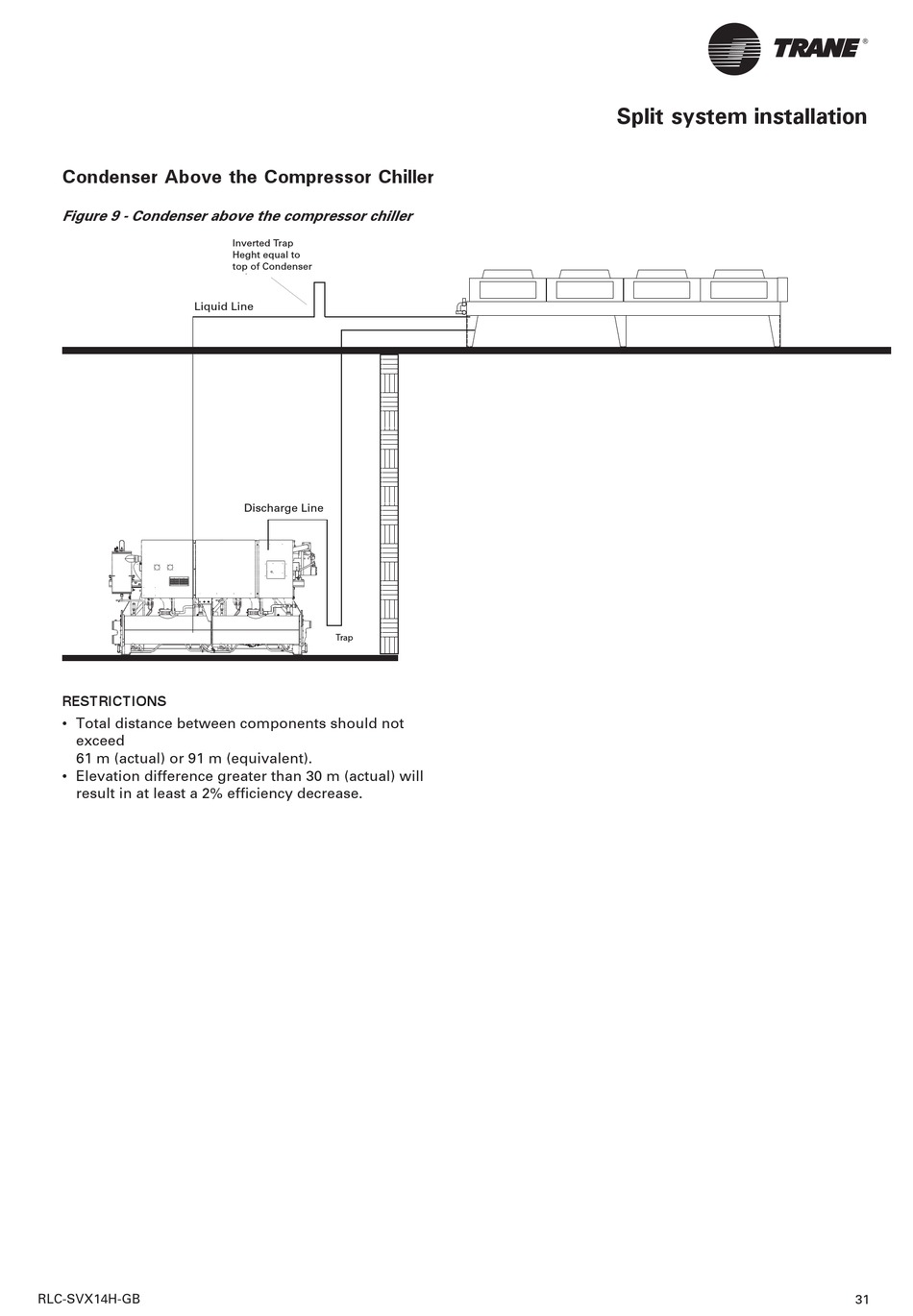

Figure 9 - Condenser above the compressor chiller
Liquid Line
Liquid Line
RESTRICTIONS
• Total distance between components should not
exceed
61 m (actual) or 91 m (equivalent).
• Elevation difference greater than 30 m (actual) will
result in at least a 2% effi ciency decrease.
RLC-SVX14H-GB
Inverted Trap
Inverted Trap
Heght equal to
Height equal to
top of Condenser
top of Condenser
Discharge Line
Discharge Line
Trap
Split system installation
31
