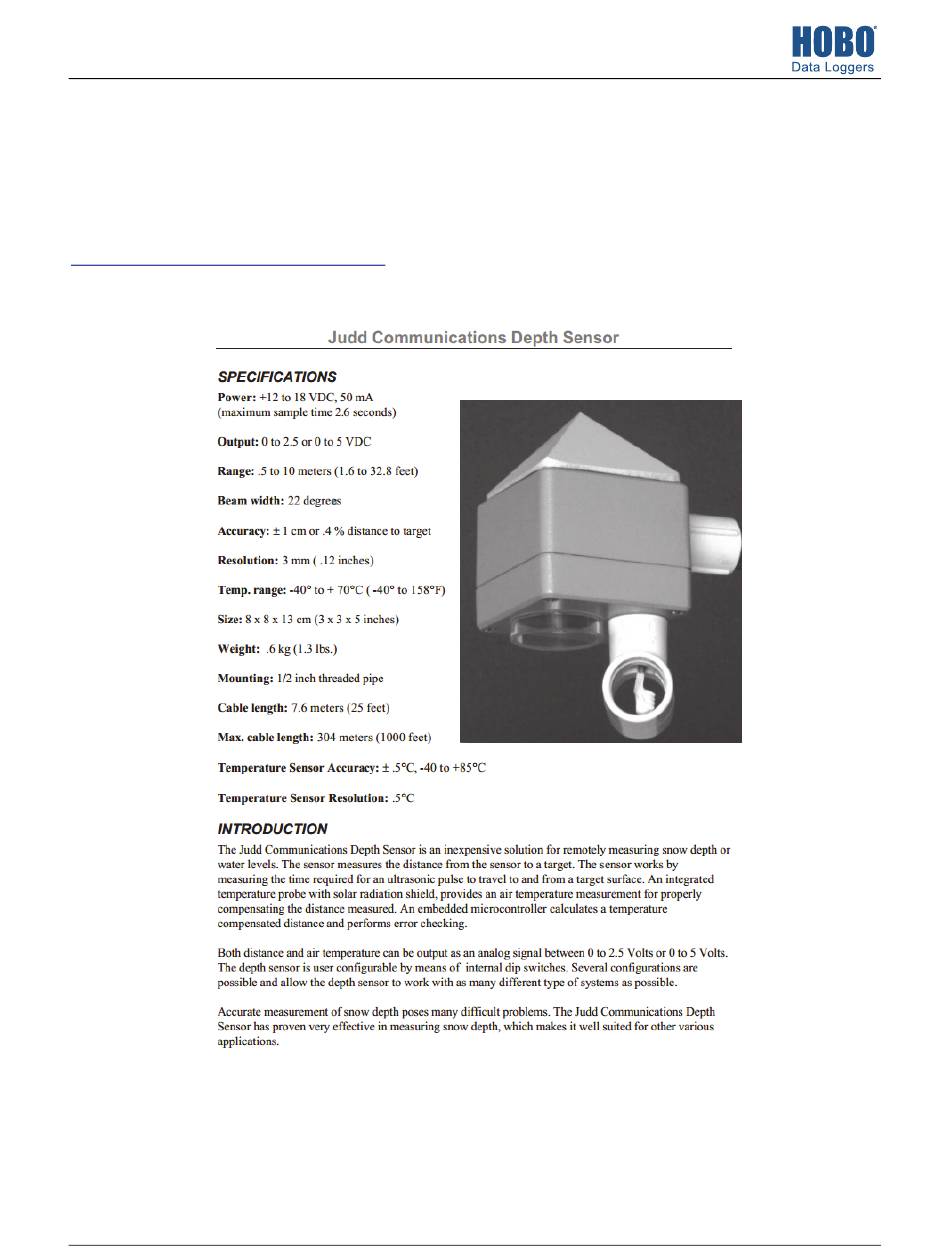

Using the Judd Communications Depth Sensor
with the HOBO® RX3000 Station
This application note describes how to connect and operate the Judd Communications Depth Sensor with the
HOBO RX3000 station. The Judd Depth Sensor is compatible with any RX3000 configuration (cellular, Ethernet, or
Wi-Fi) that is equipped with the optional four-channel analog input module. It is suggested that a 6-watt solar
panel be used to ensure that the battery is kept charged properly.
Portions of the Judd Technical Manual are used within this application note, but the full manual is available at
http://juddcom.com/storage/ds2manual.pdf
and should be read and understood before attempting to use this
device with the RX3000 station. The Judd Depth Sensor is available in both 0-2.5VDC or 0-5VDC analog output
configurations.
