The symbol "-"represent a 0 MPG (or 0 L/100km).
•
The symbol "+"represent 2x the average fuel economy.
In case of missing data or error message the needle is positioned vertically
and the digital part of the gauge display "0.0".

Gauge States

Each gauge is capable of 3 different states ( when available):
1. Regular State
This state include Metric and English rates

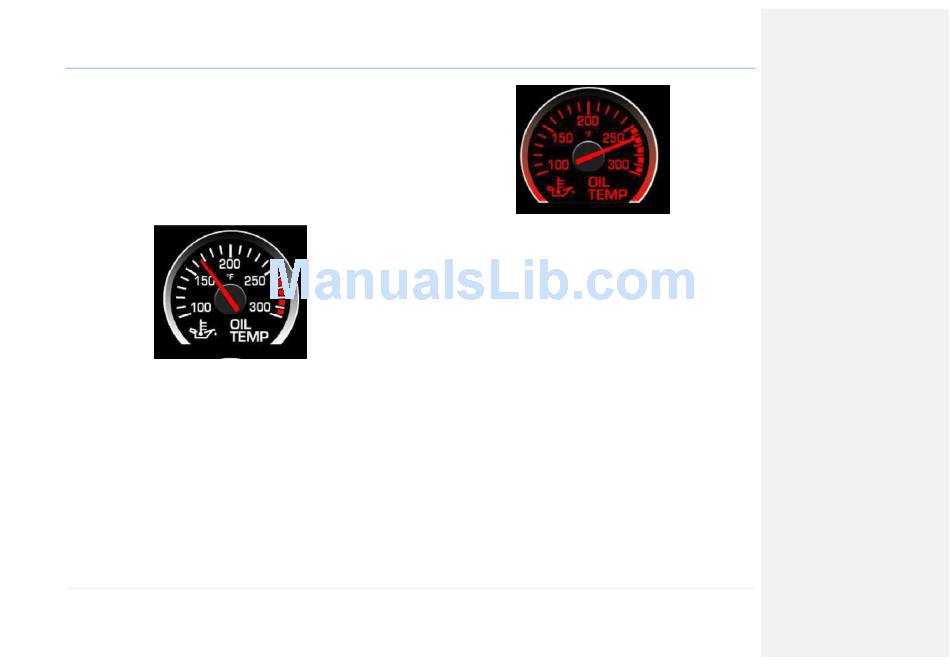

Figure 76 Regular KW Oil Temp Gauge state Art Work (°F)
2. Warning States
In this state the Gauges Turn Red
o If Gauge reaches out of range condition, the virtual gauge
Pop- Up larger on the screen. Pop-up may return to its
original state per user interaction.
Owner´s Manual DEA600 Radio
3. Error States (Needle Deflec tion)

Virtual Gauges Pop-Up

All the Vir tual Gauges func tion as softkeys, each Virtual Gauge softkey
toggle to a full screen zoom of the gauge when the user presses the Virtual
Gauge softkey.
While the Virtual Gauge is toggled to full screen zoom, a press of the screen
returns the gauge to its original size.
If the user presses the screen while the Virtual gauge is in process to toggle
in a full screen zoom, Virtual Gauges app cancel the full screen zoom toggle.
Gauges are automatically toggled to full screen zoom when a Warning State
is present.
If a Virtual Gauge has been toggled to full screen due to a warning condition
and another Virtual Gauge presents a warning condition, the first Virtual
Figure 77 Warning KW Oil Temp Gauge state Art Work
If Data is not available, the gauge pointer shall
o
automatically be positioned in - 15° from the Null position
and stay in that position until data is available.
o If the gauge is under scaled, the gauge pointer
automatically be positioned in - 5° from the Null position
and stay in that position until data is rescaled.
If the gauge is over scaled,
o
automatically be positioned in + 5° from the Null position
and stay in that position until data is rescaled.
the gauge pointer
42 | P a g e
