IMPORTANT FOR FUTURE REFERENCE

Please complete this information and retain these

instructions for the life of the equipment:

Model #: __________________________

Serial #: __________________________

Date Upgraded: ____________________

Technician: ________________________

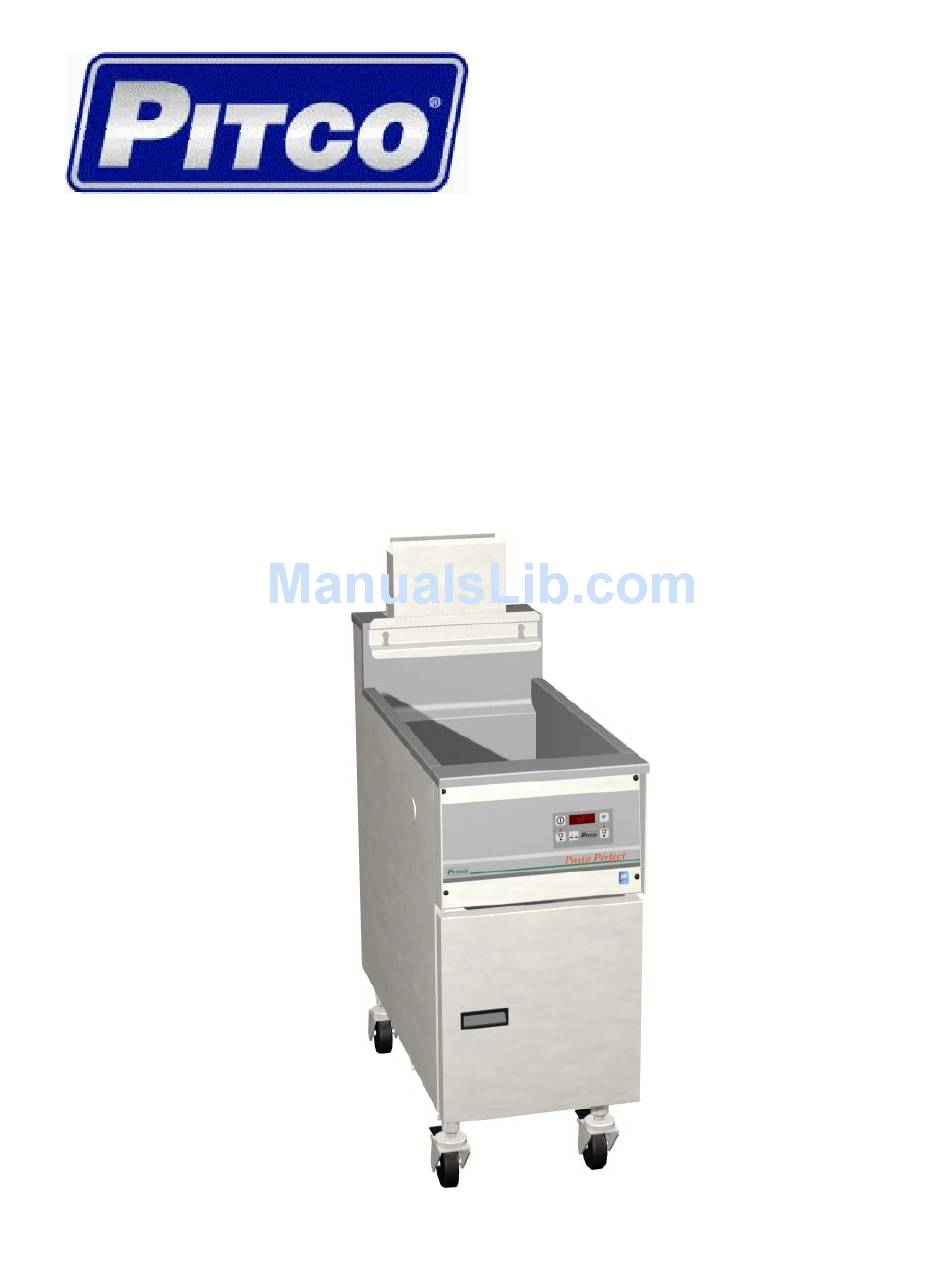

Installation Instructions for the

PE14D/PG14D

Manual Fill Option

L80-045 Rev 0 (11/07)

Need help?

Do you have a question about the PE14D and is the answer not in the manual?

Questions and answers

Summary of Contents for Pitco PE14D

Page 1 IMPORTANT FOR FUTURE REFERENCE Please complete this information and retain these instructions for the life of the equipment: Model #: __________________________ Serial #: __________________________ Date Upgraded: ____________________ Technician: ________________________ Installation Instructions for the PE14D/PG14D Manual Fill Option L80-045 Rev 0 (11/07)
Page 2 Tool required to perform this upgrade: 5/32” Allen Key 3/8” Wrench 3/4” Wrench 13/16” Wrench 1/2” Punch Teflon Tape Channel Locks Before you begin : Verify that you have all the parts for the model that you are upgrading by checking the kit number and contents against the kit picture. 5/16”...
Page 3 Ensure kit is complete. Part number B8702901-CL. 1. Qty.1 B3615401-C 2. Qty.3 PP10911 3. Qty.1 A8017902-C 4. Qty.1 PP10830 5. Qty.1 A1826101-C 6. Qty.1 PP10944 7. Qty.1 PP10726 8. Qty.2 PP10270 9. Qty.2 PP10694 9. Qty.4 P0092300 10. Qty.1 A8017501 11.
Page 4 15. Qty.1 L80045 Instruction Manual Exploded Part view L80-045 Rev0 (11/07)
Page 5 1. From the back, remove the eight 5/16” screws that hold the rear cover on. 2. With the rear of the tank exposed, remove the fill port plug with a 1/2” in wrench. Then remove the reducer with a 7/8” wrench. Save the reducer, as it will be reused.
Page 6 4. Apply Teflon tape to the 90° compression fitting (PP10911) and install. Make sure the fitting is at the 3 o’clock position when fully tightened. 5. Apply the compression fitting (PP10830) to the front end of the fill piping (A8017501) before install. Apply the remaining two 90° compression fitting (PP10911) to each end of the supply piping (A8017401).
Page 7 7. Apply Teflon tape to the rear fitting of the supply piping. Install the check valve (PP10726) onto the rear fitting of the supply piping with the support bracket (A1826101-C) between the valve and fitting. 8. Install the supply piping assembly from the front. The assembly should contain the piping, two fittings, check valve, and mounting bracket.
Page 8 9. From the front of the unit, remove the four Allen head screws with a 5/32” Allen Key. Unplug the computer and set front panel assembly aside. Remove the heat shield via three 5/16” screws. 10. With the heat shield removed remove the no fill option cover plate. The plate is held in place with three 5/16”...
Page 9 11. Apply Teflon tape the NPT ends of the fitting bodies removed earlier. Assemble the fittings with fill valve (PP10945). Add the knob extension to the assembly and install. Make sure the flat side of the “D” shaft faces the 90° fitting. 12.
Page 10 14. Apply the new manual fill option overlay (A6066901) to the new manual fill option bezel (B3615401-C). With a 3/8” wrench, remove the four kep nuts that hold the controller to the original bezel and install it onto the new bezel using the original hardware. 15.
Page 11 THIS PAGE LEFT INTENTIONALLY BLANK L80-045 Rev0 (11/07)
Page 12 SHIPPING ADDRESS – 10 FERRY ST., CONCORD, NH 03301 In the event of problems with or questions about your equipment, please contact the Pitco Frialator Authorized Service and Parts representative (ASAP) covering your area, or contact Pitco at the numbers listed to the left.
