Pitco PE14D Upgrade Instructions

High Temperature Limit Upgrade Instructions
Parts Required

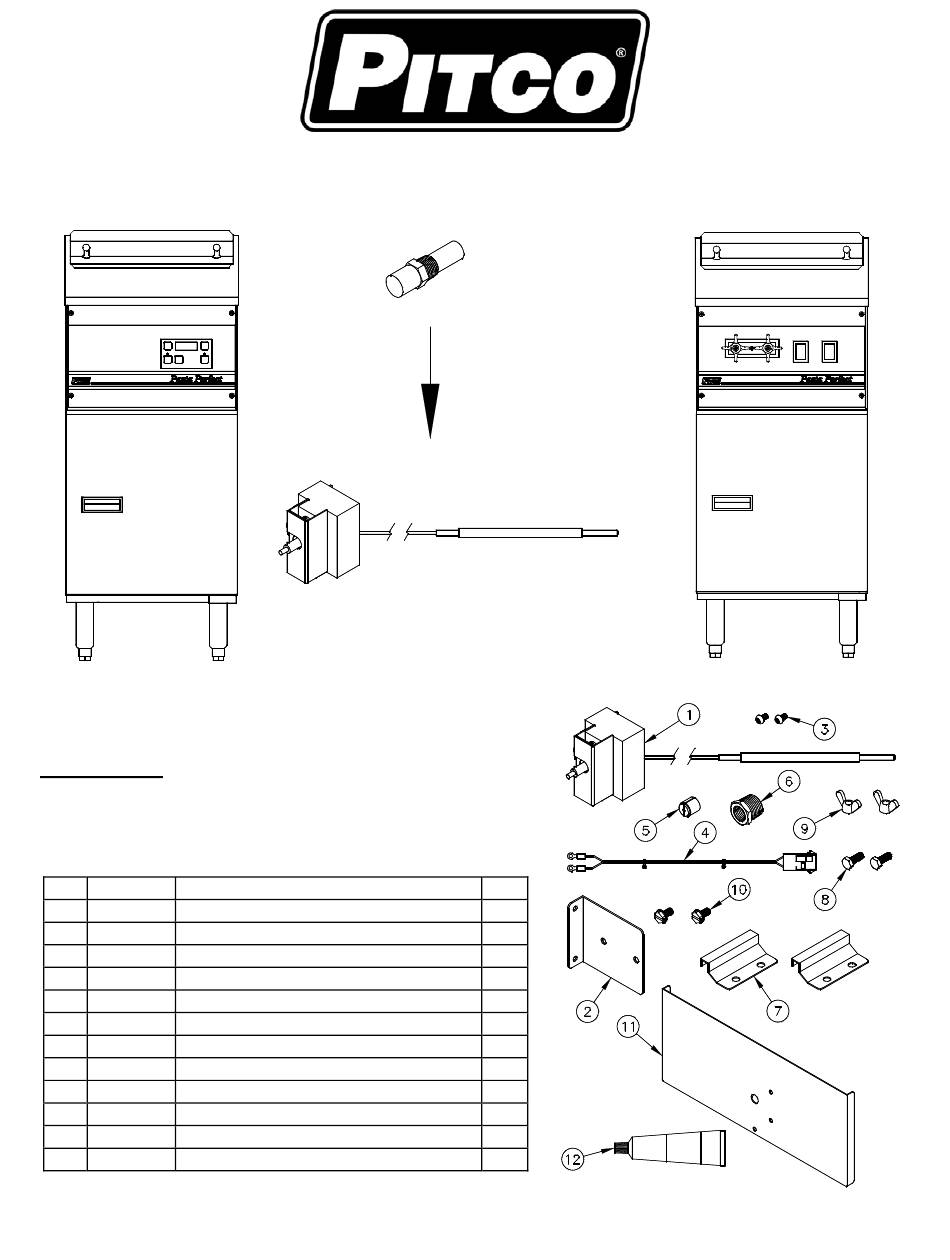

B8702601-CL Parts List
Upgrade Kit, Hi-Limit PE14D
Item Part # Description
1 PP10803 Hi-Limit, 250F LB117-026
2 A1306701 Hi-Limit Bracket
3 PP10687 Screw, 6-32 x 5/16" Truss Hd.
4 B6782201 Wiring, Hi-Limit
5 A3316205 Fluropolymer Seal (Short)
6 PP10658 Bushing, Reducer 3/8 X 1/4 NPT BRS
7 A1407802 Bulb Clamp
8 P0112000 Screw, 10-24 x 1/2" Hex Head SST
9 PP10568 Nut,Wing 10-24 SST
10 PP10023 Screw, 10-24 Hex Head Self Tapping
11 A2966901 Element Shield Cover
12 S2028501 Silicone Sealant
13 L80039 Instructions
L80-039 Rev. 1
Model PE14D
The intent of these instructions are to upgrade the
high temperature limit from a probe style design to
a bulb and capillary style design with reset on a
model PE14D pasta cooker.
Page 1 of 3
