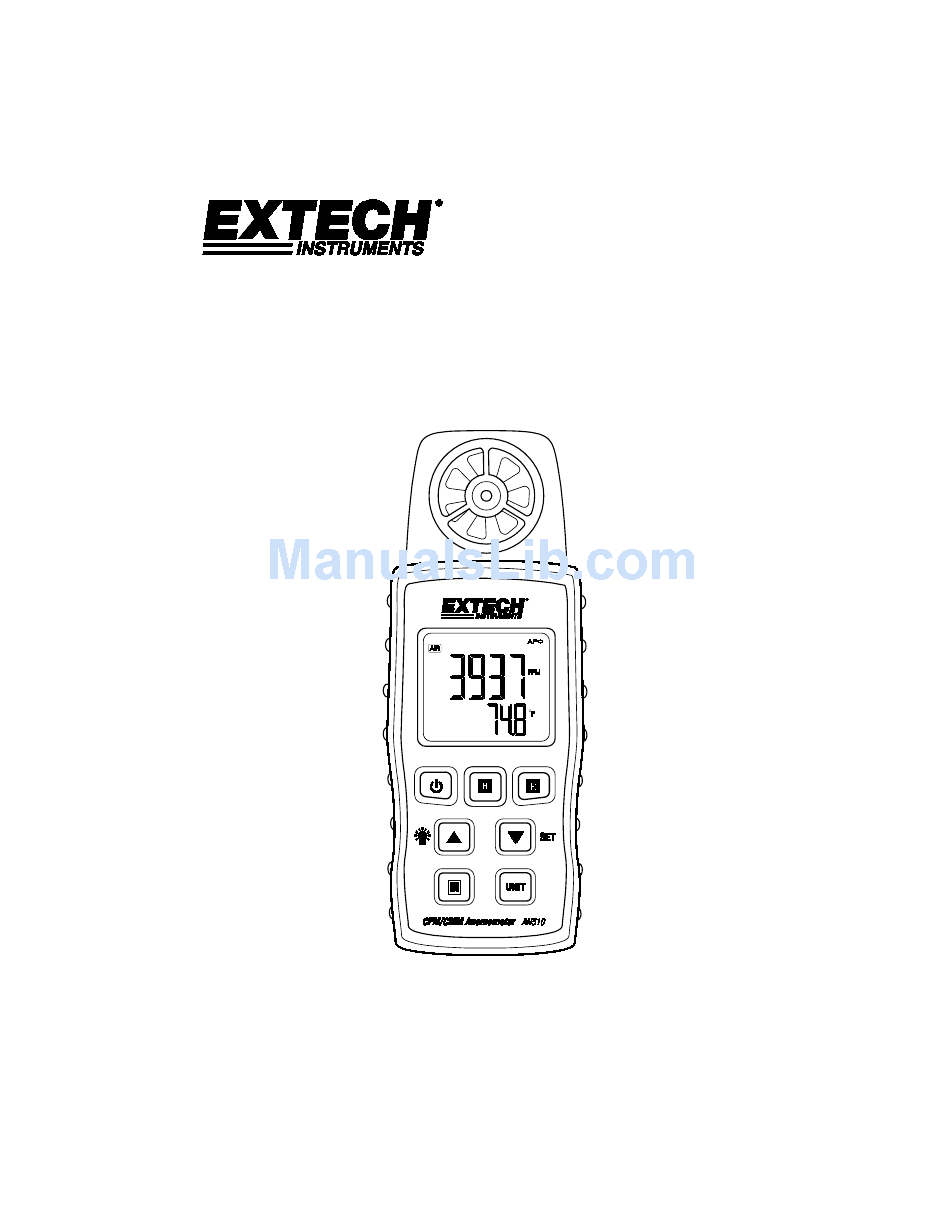

- Page 1 USER MANUAL CFM/CMM Thermo Anemometer Model AN510 Additional User Manual Translations available at GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Introduction Thank you for selecting the Extech AN510 CFM/CMM Thermo-Anemometer. This instrument measures Air Velocity, Air Flow (volume), Air Temperature, and Type K Temperature (external probe). The backlit LCD includes primary and secondary displays plus numerous status indicators. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
-
Page 3: Meter Description
Air Velocity Record Hold Air Flow Battery Indicator Auto Power OFF Unit of Measure 10. Temperature Units 11. Lower LCD Display 12. Upper LCD Display 13. Type K Temperature AN510-en-GB_V1.0 5/17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 4: Operation
K thermocouple must be connected to the meter for Type K temperature displays. Air Velocity Units Select Air Velocity with the M button. Press the UNIT button to step through and select the desired units. (ft/min, m/s, km/h, MPH, knots) AN510-en-GB_V1.0 5/17 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 5: Set Function
Press the ▲ or ▼ button to set the area in square feet or square meters in the display. Press the button to save the value. With the area values programmed, measure air flow in the duct to obtain air volume (CFM or CMM) readings. AN510-en-GB_V1.0 5/17 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 6: Max-Min Recording
Cleaning and Storage Periodically wipe the case with a damp cloth and mild detergent; do not use abrasives or solvents. AN510-en-GB_V1.0 5/17 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 7: Specifications
Type K Thermometer °C -50 to 1300 ±(0.4% + 0.5°C) 0.1° -50.1 to -100 ±(0.4% + 1°C) °F -58 to 2372 ±(0.4% + 1°F) 0.1° -58.1 to -148 ±(0.4% + 1.8°F) AN510-en-GB_V1.0 5/17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 8: Useful Equations And Conversions
1 MPH 0.4464 87.89 0.8679 1.6071 Copyright © 2017 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO-9001 Certified AN510-en-GB_V1.0 5/17 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
