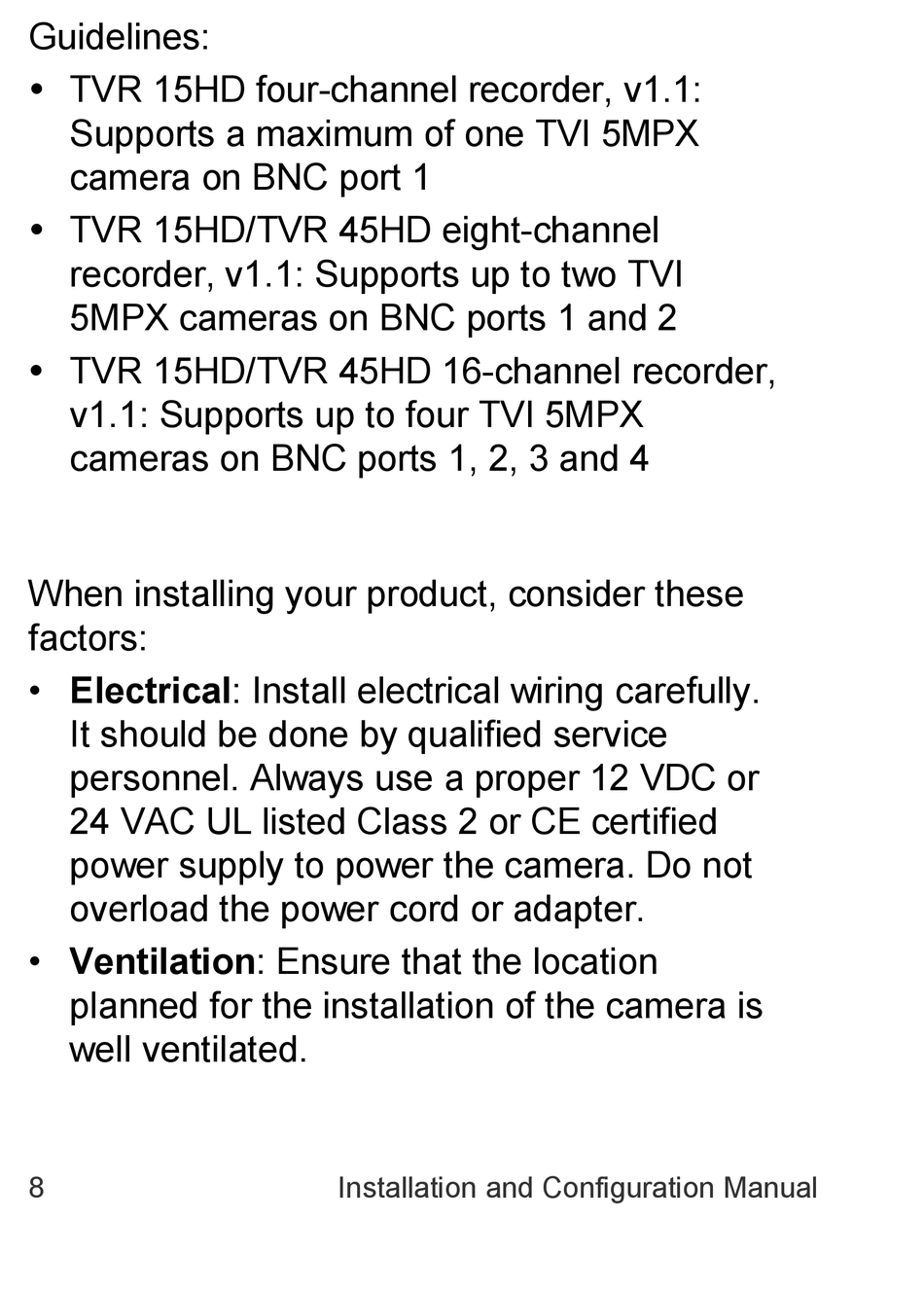

Guidelines:
 TVR 15HD four-channel recorder, v1.1:
Supports a maximum of one TVI 5MPX
camera on BNC port 1
 TVR 15HD/TVR 45HD eight-channel
recorder, v1.1: Supports up to two TVI
5MPX cameras on BNC ports 1 and 2
 TVR 15HD/TVR 45HD 16-channel recorder,
v1.1: Supports up to four TVI 5MPX
cameras on BNC ports 1, 2, 3 and 4
When installing your product, consider these
factors:
• Electrical: Install electrical wiring carefully.
It should be done by qualified service
personnel. Always use a proper 12 VDC or
24 VAC UL listed Class 2 or CE certified
power supply to power the camera. Do not
overload the power cord or adapter.
• Ventilation: Ensure that the location
planned for the installation of the camera is
well ventilated.
8
Installation and Configuration Manual
