Table of Contents

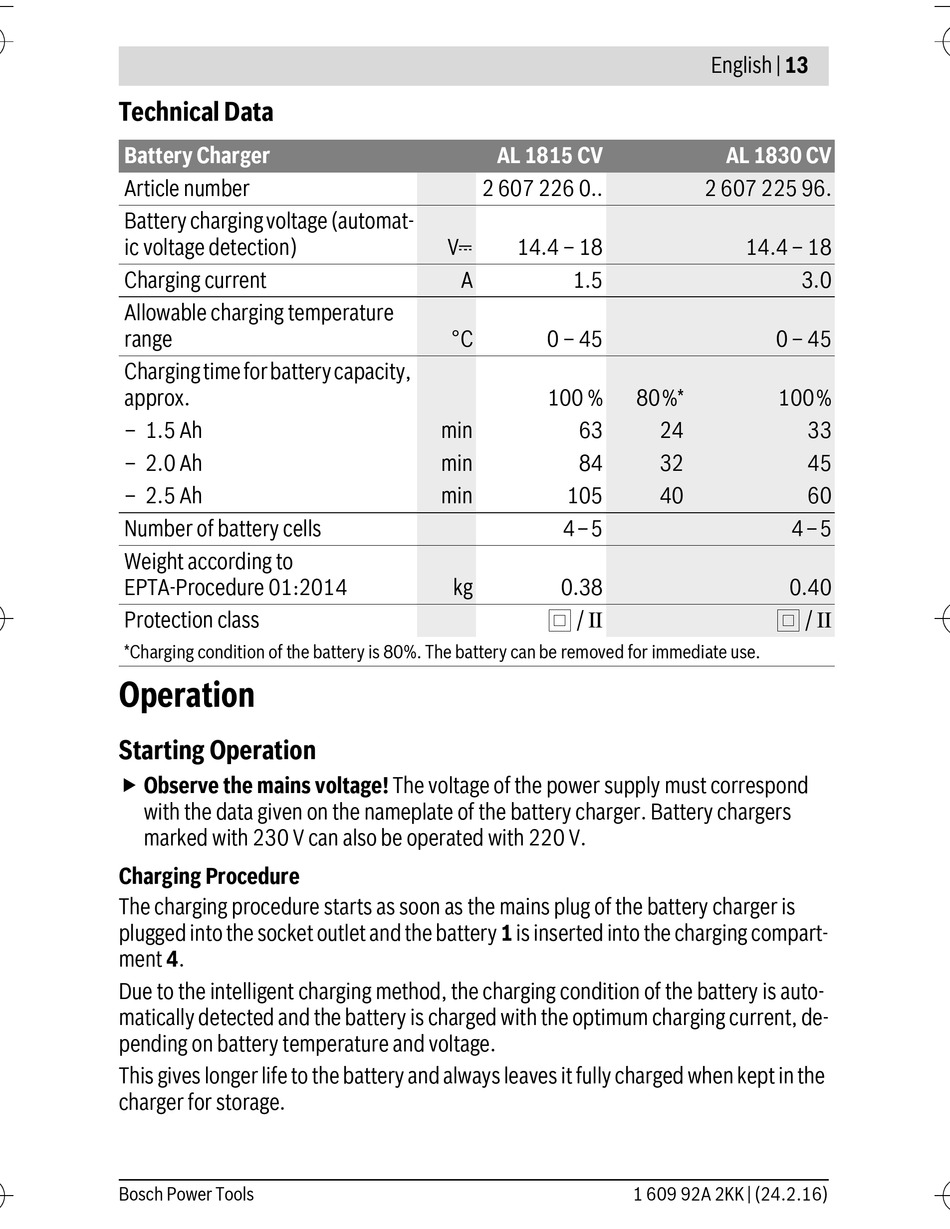

Technical Data

Battery Charger
Article number
Battery charging voltage (automat-
ic voltage detection)
Charging current
Allowable charging temperature
range
Charging time for battery capacity,
approx.
– 1.5 Ah
– 2.0 Ah
– 2.5 Ah
Number of battery cells
Weight according to
EPTA-Procedure 01:2014
Protection class
*Charging condition of the battery is 80%. The battery can be removed for immediate use.
Operation

Starting Operation

 Observe the mains voltage! The voltage of the power supply must correspond
with the data given on the nameplate of the battery charger. Battery chargers
marked with 230 V can also be operated with 220 V.
Charging Procedure
The charging procedure starts as soon as the mains plug of the battery charger is
plugged into the socket outlet and the battery 1 is inserted into the charging compart-
ment 4.
Due to the intelligent charging method, the charging condition of the battery is auto-
matically detected and the battery is charged with the optimum charging current, de-
pending on battery temperature and voltage.
This gives longer life to the battery and always leaves it fully charged when kept in the
charger for storage.
Bosch Power Tools
AL 1815 CV
2 607 226 0..
V
14.4 – 18
A
1.5
°C
0 – 45
100 %
min
63
min
84
min
105
4–5
kg
0.38
/ II
English | 13
AL 1830 CV
2 607 225 96.
14.4 – 18
0 – 45
80%*
100%
24
32
40
1 609 92A 2KK | (24.2.16)
3.0
33
45
60
4–5
0.40
/ II
