ANK Audio Note Kits M3 Phono Board Instruction Manual page 8

Above you can see the two resistors installed correctly into the board. You will also want to gently bend the leads on the
underside of the board so that the resistors don't fall out as we are going to install all the rest of the resistors (except for
R3 & R5). The graphic on the right you can see how the legs are bent to keep the resistor in position.
Carry on with your color code chart and install the rest of the resistors on the chart – except for the last two – R3 & R5 -
these are a special case.

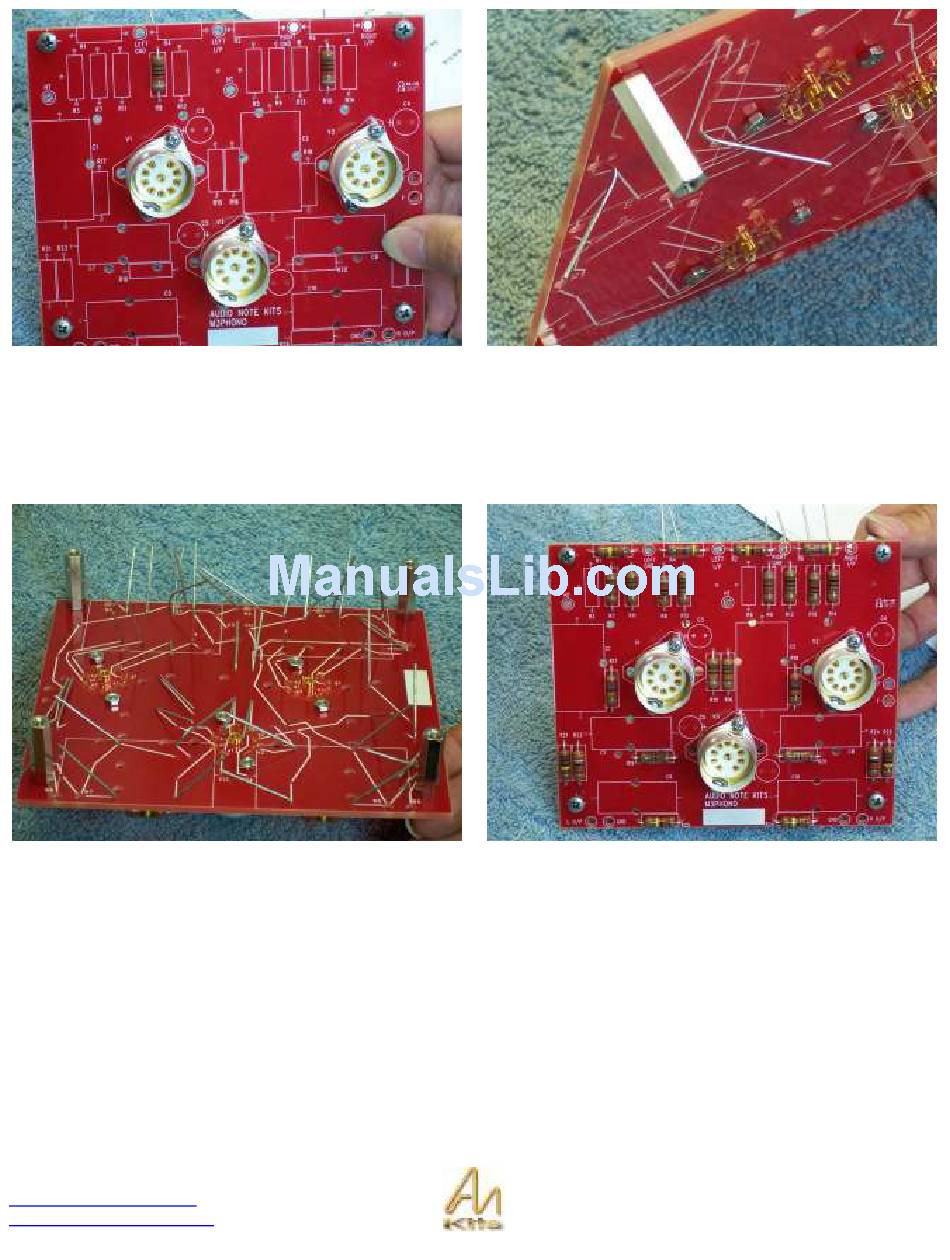

The pictures above show your Phono Board with the resistors installed.
