components to connect to the various points, however from time to time, the legs will be too short and will need to be
extended with tinned wire.

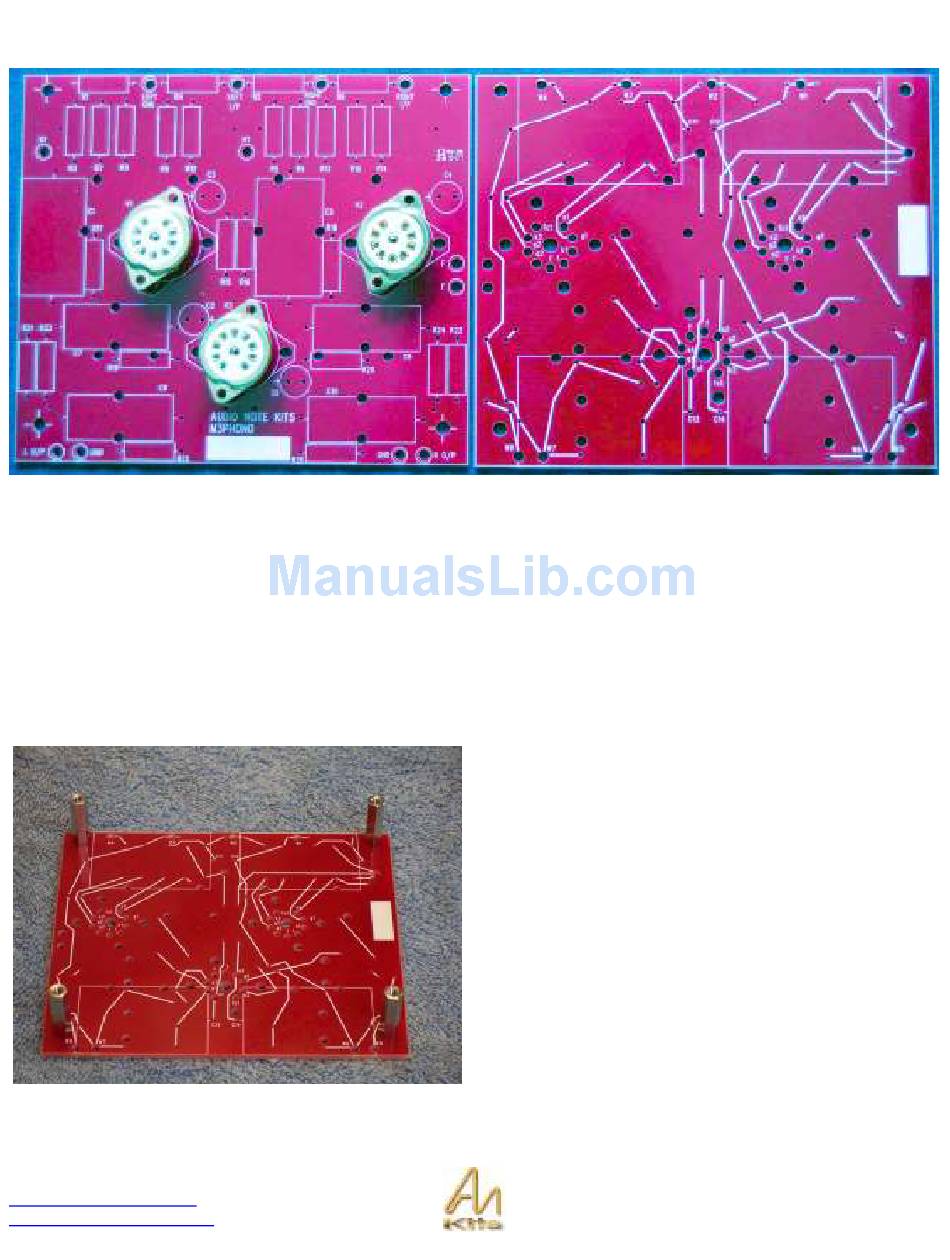

The above picture shows the top and bottom of the M3 Phono Board. The bottom of the board shows how the leg of each
component is joined to another - these are shows by the thick white lines.
Whenever making a connection you should, at the same time, trace that connection on the schematic (i.e. circuit
diagram). That way you will make fewer mistakes and also learn more about the circuit.
NOTE: We have included a disk in your kit that includes high-resolution pictures of most of the ones shown here in the
manual so that you can zoom in on them on your computer.
Preparation
Copyright © 2007 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
The first step is to install the spacers onto the board as
shown opposite.
Note on the underside of the board that we have white lines
(stencils) that show the connections of the components.
Page 4
