ANK Audio Note Kits M3 Phono Board Instruction Manual page 25

Now we come to the home stretch – We need to install the 4 Film capacitors that will be installed on
the underside of the board.
Copyright © 2007 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

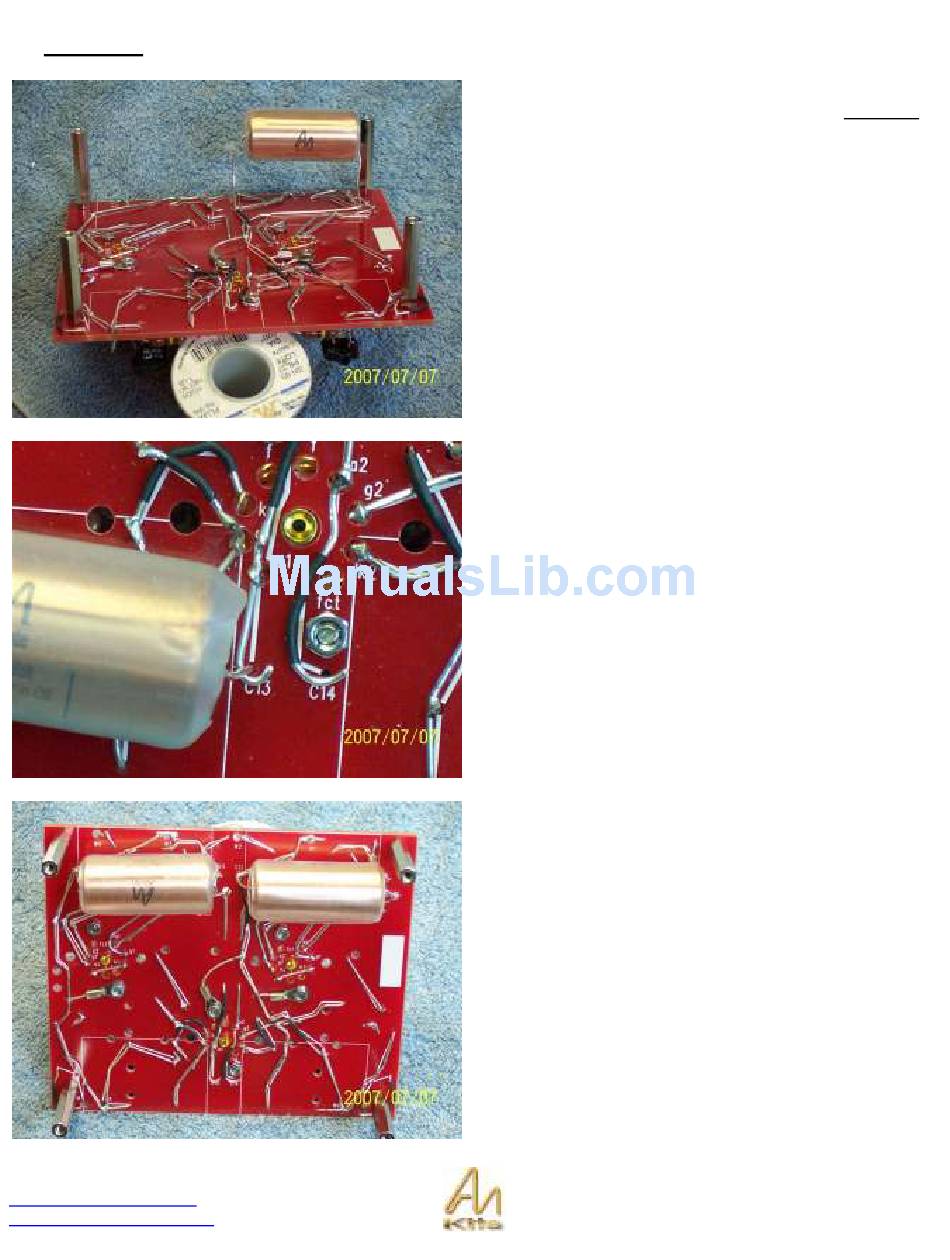

Now we come to the home stretch – We need to install the
4 Film capacitors that will be installed on the underside of
the board – In the picture opposite you can see the .22uf
capacitor being inserted into the holes on the board in the
C12 position. The line on the capacitor is closest to the
spacer or the side of the board.
You will notice that these capacitors have a clear
heatshrink insulation on them – DO NOT REMOVE THIS –
the reason for the heatshrink is because the copper (or tin)
outer shell of the capacitor is conductive and needs to be
insulated so as not to cause any shorts on any wires that it
touches.
Install the other .22uf capacitor beside it in the position C11
position with the line closest to the spacer in the corner or
the left edge of the board.
You will notice in this picture that the hook I created earlier
can easily be soldered to the capacitor that we install on the
underside of the board.
We now have the 2 .22uf capacitors into position
Page 25
