I would suggest that you go over and do the same to V2 now using the same techniques and updating your schematic
highlights!
Another technique that you will use quite a bit of is longer extensions of silver wire – You will need to do this when you
connect to the HT – The HT (or High Tension) is the point on the circuit where the DC voltage from the power supply will
come in and provide the overall electrical DC for the phono circuit...
Copyright © 2007 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

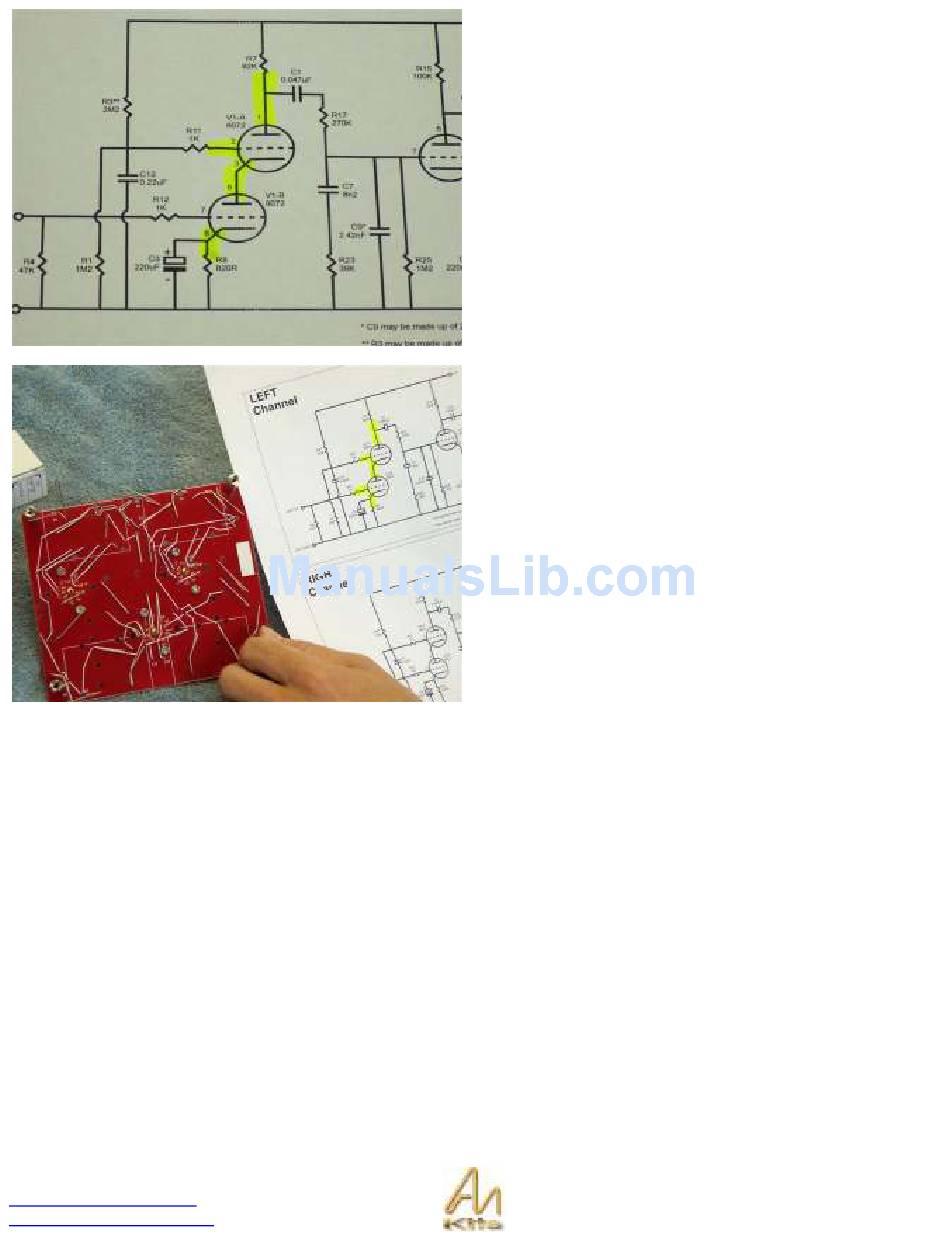

We have completed all the connections to the valve base
V1 – Note that I have not highlighted pin 7 yet but I should
do that now!
The only pins not connected now are pins 4 & 5 - these will
be used for our filament wiring - in other words we will be
using some wiring from the power supply board to connect
to these pins to provide the filament current (this subject is
dealt with later in the guide).
The other pin not connected is pin 9, which is not used.
Congratulations as we have just completed all the
connections to V1.
It is always good to double-check your connections after
completing them, making sure that the stencils on the back
and the schematic and your connections all correspond!
