Fitting the Valve Bases
Our first installation will be the valve bases.
Copyright © 2007 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com

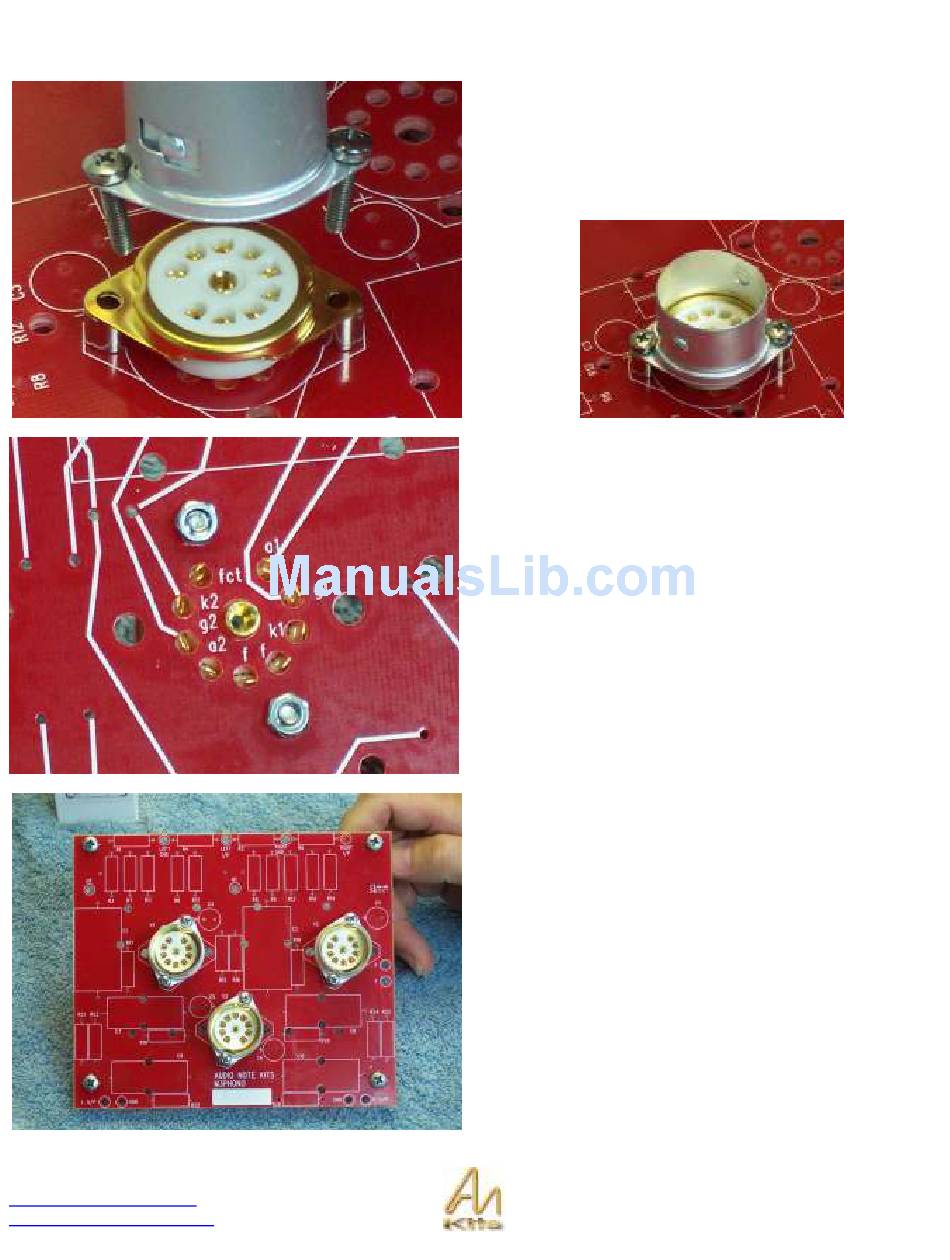

As you can see from the picture opposite the valve base is
inserted in the board and the small spacers are used under
the screw holes.
The Tube Shield is then used on top with the screws going
through them.
Use a M3 screw from the phono hardware bag and secure
with an M3 nut on the other side of the board.
Opposite, you can see the underside of the board where
one of the valve bases has been fitted and secured.
Here we have the 3 valve bases installed.
Valve base installation is now complete.
