Installing the Resistors

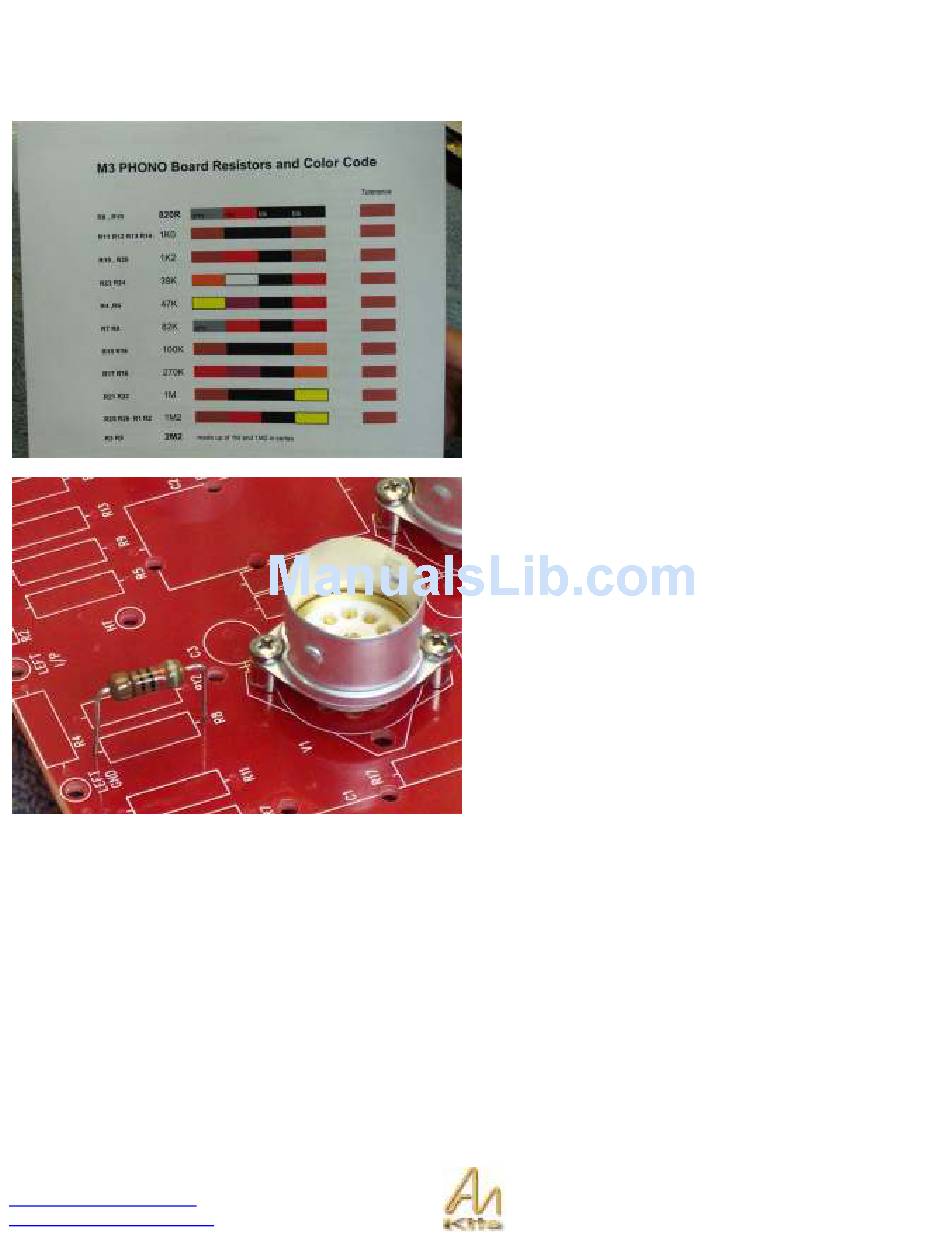

Our next task is to install MOST of the resistors in the board. Start by referring to your schematic and your Resistor Color
Code Chart. You can start at the top of the chart.
Copyright © 2007 AudioNote Kits
www.AudioNoteKits.com
audionotekits@rogers.com
You will notice that the first resistor on the chart is the 820R
resistor (R8 and R10).
Identify the two resistors that have the following color codes
– GREY – Red – Black – Black followed by a thicker
BROWN tolerance band.
You will need to bend the resistor leads with pliers (or
neatly by hand) in order for it to be inserted correctly into
the board.
So, go ahead and install the 2x 820R resistors in positions
R8 & R10.
Page 7
