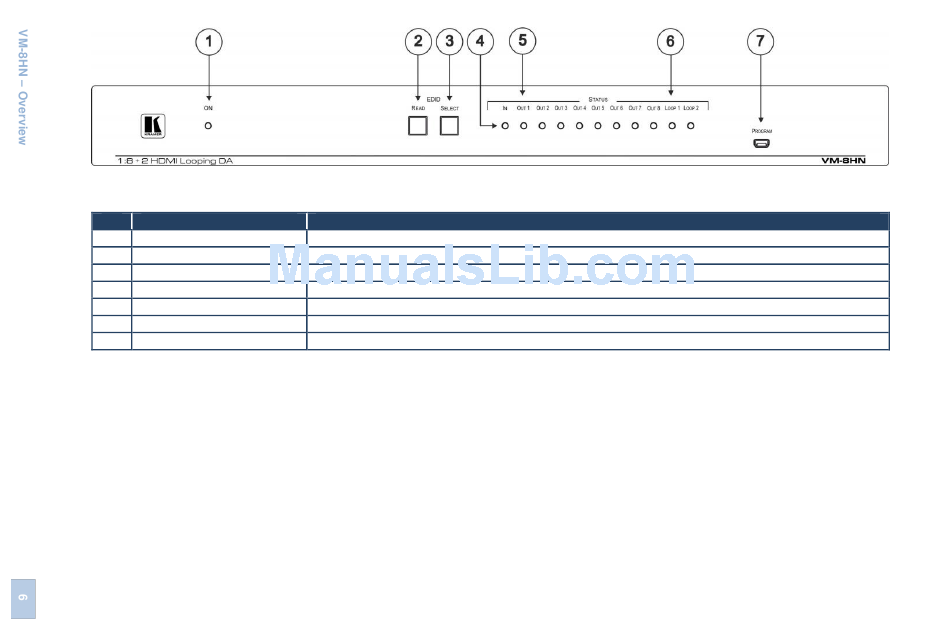

Figure 1: VM-8HN 1:8+2 HDMI Looping DA Front Panel
#
Feature
1
ON LED
2
EDID READ Button
3
EDID SELECT Button
4
IN LED
5
OUT LED (1-8)
6
LOOP LED (1-2)
7
PROGRAM mini USB Connector
6
Function
Lights when the device is powered on
Press to select the chosen output
Press to sequentially cycle through the outputs
Lights when an active input signal is detected
Lights when an active output acceptor is detected, flashes when HDCP is not supported by the monitor
Lights when an active output loop acceptor is detected
Use to upgrade the device firmware, also works with the EDID Designer
VM-8HN - Overview
