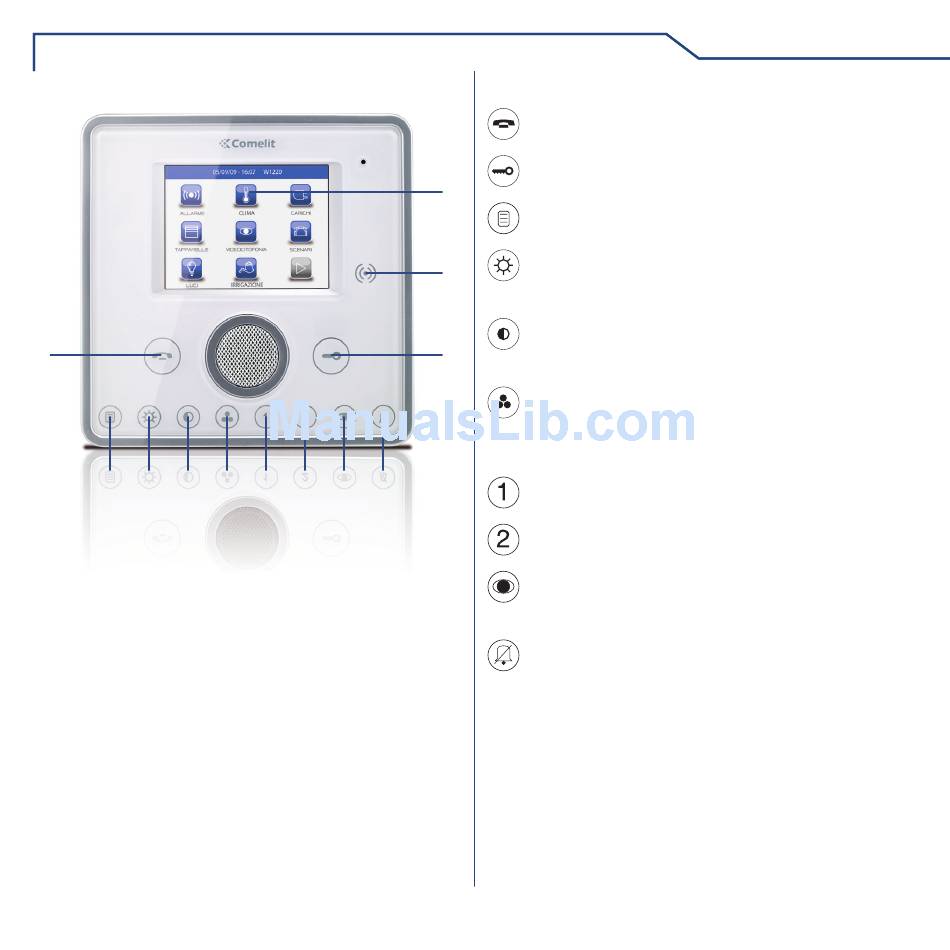

MONITOR DESCRIPTION

12
11 10 9
1 Touch-screen
2 Key sensor
3 Door lock key
4 Privacy / Doctor key (programmable)
5 Self-ignition key (programmable)
6 Programmable key 2
7 Programmable key 1
8 Colour key
9 Contrast key
10 Brightness key
11 Menu key
12 Audio key
8 7 6 5 4

KEY FUNCTIONS

Audio key:
conversation with the external unit.
Door lock key: opens the corresponding door
lock.
1
Menu key: switches the Planux Manager
monitor on and off.
Brightness key: adjusts the brightness of the
2
image displayed in a video message.
Contrast key: adjusts the contrast of the image
displayed in a video message.
3
Colour key: adjusts the colour of the image
displayed on the monitor. To change the setting,
press the key while video communication is in
progress.
Programmable key 1: factory-set as generic
actuator (programmable).
Programmable
switchboard call (programmable).
Self-ignition key: switches on the monitor and
displays the video feed from the external unit
(programmable).
Privacy/Doctor function key (programmable):
• the Privacy function disables calls from the
external unit and switchboard.
• the Doctor function enables automatic activation
of the lock-release in response to a call from the
external unit.
• the Privacy + Doctor function, as well as disabling
the door-entry phone ringtone in the same way
as the Privacy function, also enables automatic
activation of the lock-release in response to a call
from the external unit. The red LED indicates that
the selected function is active.
4
INTRODUCTION
activates or de-activates
key 2: factory-set as
