User Manual for X5-E0804/E0408

User Manual

For
DS2
Mobile Digital video recorder kit
1
-33
For more information, please visit our website
www.en.streamax.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Streamax DS2

  • Page 1: User Manual

    User Manual for X5-E0804/E0408 User Manual Mobile Digital video recorder kit For more information, please visit our website www.en.streamax.com...
  • Page 2 Under copyright laws, the content of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine- readable form, in whole or in part, without prior written consent of Streamax Technology Co., Ltd (Copyright 2013-2015) For more information, please visit our website...
  • Page 3 Insulate circuit ground and metal shell for all the peripherals. Before installation, please open the package and ensure that all parts are included. If there are any problems, please contact us as soon as possible. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 4: Table Of Contents

    3.1 Live View..............................13  3.2  Playback............................13  3.3  Log..............................16  3.4  Config.............................. 16  3.4.1  Basic Setup ..........................16  3.4.2  Suriveillance ..........................23  3.4.3  COLLECTION ........................30  4.  FAQ ................................. 32  - 33 For more information, please visit our website www.en.streamax.com...
  • Page 5: Product Characteristics

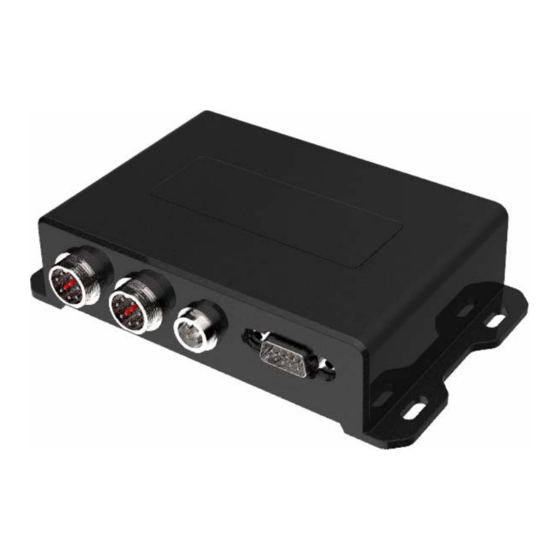

    User Manual for X5-E0804/E0408 1. Product Characteristics 1.1. Effect Image 1) OBD Box - 33 For more information, please visit our website www.en.streamax.com...
  • Page 6 User Manual for X5-E0804/E0408 Second Camera 3) DS-2 Master Camera - 33 For more information, please visit our website www.en.streamax.com...
  • Page 7: Specifications

    ±8 Second error, support GPS time sync n RTC Temperature -40℃-+70℃ Humidity 0% - 90% Power Other <2w dissipation dimension 149MM(L)x90MM(W)x35MM(H) DS2 Master Camera Master Camera Items Imaging device 1/3" CMOS SONY IMX225 Effective pixel 1280(H)x720(V) Signal system 50/60 Hz Minimun 0.05Lux( Color illumination ),F1.2; illumination...
  • Page 8 Alarm(Yellow): Light on means alarm triggered, light off means no alarms. Attached SD card 1 Pcs SD card for recording Storage Temperature -40℃-+70℃ Humidity 0% - 90% Power PON(DC7V-DC14V) Others Power dissipation <3w Dimension 98MM(L)x91.8MM(W)x37MM(H) - 33 For more information, please visit our website www.en.streamax.com...
  • Page 9 ,DDNS,PPPoE,IPV4,UPnP,NTP Client view Built- in WEB Server, support IE Temperature -40℃-+70℃ Humidity 0% - 90% Power PON(DC7V-DC14V) IP class IP65, with audio Others Power <1.5w(Day mode)<2.5w(B/W mode) dissipation Dimension 69MM(D)x55MM(H) - 33 For more information, please visit our website www.en.streamax.com...
  • Page 10: Quick Guide

    2.2 Basic Operation Attention: When devices power on, DS2 will work as wifi AP mode, and there are 10 minutes to connection, It will switch to client mode after 10 minutes,then It will be always working as wifi client mode until the next restart.
  • Page 11 User Manual for X5-E0804/E0408 2) Connect DS2 via web browser Defaults: Ip address about wifi AP : 192.168.240.1 Username: admin Password:11111111 - 33 For more information, please visit our website www.en.streamax.com...
  • Page 12: Install Activex

    1) Set the browser security level to “Low”. 2) Enable all the active-x option in browser security settings. 3) Add the current site to the trust list of browser. 4) Use Internet Explorer instead of other brwosers. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 13: Web Features

    3. Web Features 3.1 Live View Icons: previous and next page, sound, capture, video parameters, original/full, record. Log out: log out and come to the log in interface 3.2 Playback - 33 For more information, please visit our website www.en.streamax.com...
  • Page 14 User Manual for X5-E0804/E0408 If the date is marked as color green, it means there is recording. Recording playback window: Video window, play time-line, playback control button. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 15 Record list: It displays all the record. Click “backup” to download video file to local computer hard disk, as below: Tip: when backup, you can open another same website to see live view without other operations. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 16: Log

    There are different types of log: Alarm log, Operation log, Locked log. Choose the target time and alarm type, then export the logs in “.xlsx” format. 3.4 Config 3.4.1 Basic Setup 3.4.1.1 Status info - 33 For more information, please visit our website www.en.streamax.com...
  • Page 17 User Manual for X5-E0804/E0408 Version info Features: 1) Shows the version & register info; 2) Upgrade DS2 firmware or slave camera firmware; 3) Import or export the config files; 4) Default all the settings; 5) Reboot. Register info - 33 For more information, please visit our website www.en.streamax.com...
  • Page 18 Time format: 24 hours or 12 hours Time zone: Range from -12 district ~ +13 district Time Sync: Manually: Adjust the system time manually. Auto: Sync the system time with Network server,just like “time.windows.com”,etc. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 19 Offset: After enabling DST, adjust the hour manually Mode: Setup DST according to week or date Start: Time to start DST End: Time to end DST Don’t forget to save the settings after configuration. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 20 Supports add user function. Click "Add" button, then enter the following interface. Click "Delete" button, then the following interface will appear. Note: Only administrator is able to add users. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 21 User name cannot be empty, not the same with the existed user name while the user password can be empty. User name and password can be modified. Select a user, click the "Edit" button, enter the following interface: - 33 For more information, please visit our website www.en.streamax.com...
  • Page 22 ESSID: Iinput the address of wifi AP manually. Encryption: It supports NONE, WEP and WPA Password: Manually input Static IP: Connect wifi with a fixed ip address. AP and station: fixed value. Server setup: - 33 For more information, please visit our website www.en.streamax.com...
  • Page 23: Suriveillance

    Media server port: Media server port, defaulted as 5556. Note:There is no server running for DS2 for now,Seon didn’t request any customized server from Streamax, so the whole server option here is reversed function only and it is not in normal use. 3.4.2 Suriveillance 3.4.2.1 Stream...
  • Page 24 “Never” means SD card will never being overwrited, when SD is full ,then recording will stop. Main stream Channel:There are 2 channels for DS2, master camera channel and second camera channel. Channel name: The name of the channel. Enable:Enable or disable the channel.
  • Page 25 “Alarm”, means record when alarm triggered only. Audio: Enable or disable to record audio. I Frame: means DS2 will record I frmae only when there is no alarm triggered. Alarm quality: means what quality level of image will be recorded when alarm triggered.
  • Page 26 Audio Frequency Enable: Enable or disable the audio. Audio Format: There are “g.711a”,”g.711u”,”adpcm”,”g726” optional. Audio Gain: Different level of audio gain, from 1 (low) to 8 (high) optional 3.4.2.2 Image Setup - 33 For more information, please visit our website www.en.streamax.com...
  • Page 27 Anti-flicker: There are 3 options as shown below, it adjust to the frequency of the lights. Mirror: Mirror the image. Flip: Reverse the image. HLC: HighLight Compensation WDR:Wide Dymamic Range,there are 4 options as shown below: - 33 For more information, please visit our website www.en.streamax.com...
  • Page 28 User Manual for X5-E0804/E0408 Choose to show the imformation on live view channel or not. Click “Setup” button to adjust the position where the information will be shown. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 29 Snap Path: It means where the snapshot will be saved. Record backup path: It means where to save the backup record. Click the Format button the format the current SD card. - 33 For more information, please visit our website www.en.streamax.com...
  • Page 30: Collection

    Note:The snapshot will be saved in second level cache in DS2,as the earlier discussion, Streamax save the snapshot to the device and provide the API to Seon, and Seon will get the snapshot from DS2 with the API and decide where to send the snapshot.
  • Page 31 Alarm type: There are 2 options,”Event” and “Alarm”, event means DS2 will record the event in DS2 while alarm means DS2 will record event to DS2 and send the alarm to the server at the same time. Note:Because Seon didn’t customize server from Streamax, so there is no real difference between event and server.
  • Page 32: Faq

    Lock: Means lock the alarm record in SD card, so it wont be overwritten. Alarm snap: Enable it so alarm snapshot will happen when alarm is triggered. Note: Alarm snap is saved in second level cache in DS2 only for now.Seon will decide where to send the snapshot.
  • Page 33 Can not connect DS2 with wifi normally? Please check the wifi status, because there are AP mode and client mode,user can not connect to DS2 directly if wifi working as client mode. 5. FCC Statement  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
