Simpson Mini-Max series Manual

Minimum Depth Indicator - Less Than 2.5" (60mm)
of Space Required Behind the Panel
Stackable Mounting Bracket Included for Easy
Installation
4 Digit, 0.56" (14.2mm) High, Red LED Display
Standard Screw Terminals for Easy Installation
User-Selectable Input Type (J or K T/C, RTD Pt100,
mV)
85-250VAC Power Supply
Brightness Adjustment

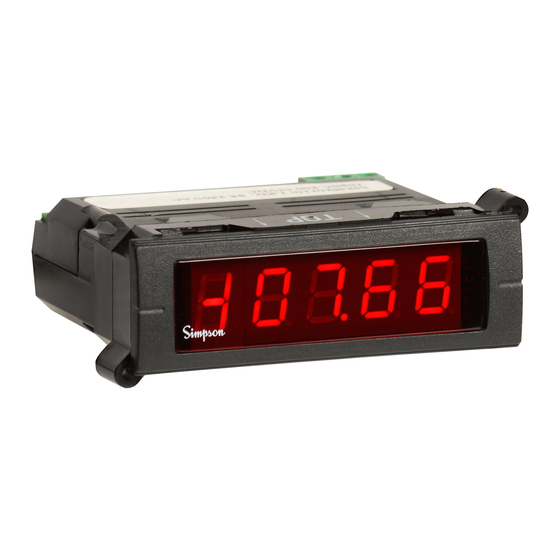

Simpson's Mini-Max Temperature Indicators provide high
quality, accuracy and reliability in a compact case. These
microprocessor-based units offer a 0.56" bright red, 4 digit
LED display for high visibility and is adjustable through 6
levels of brightness. The four input types and choice of °C
or °F display are jumper-selectable and can be changed with
no recalibration necessary.

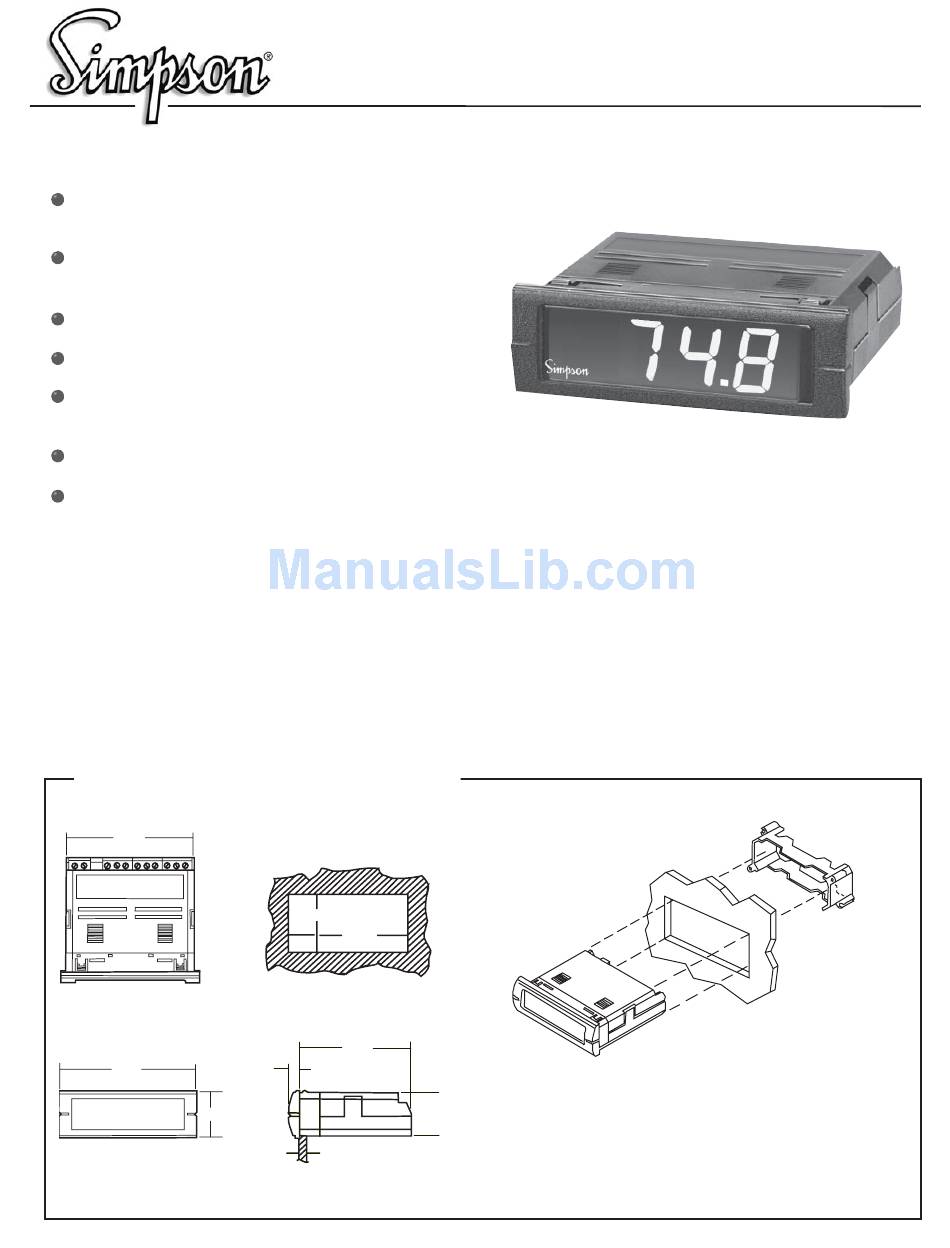

Installation and Panel Cutout
2.66"
2.83"
0.94"
Mini-Max M240 Series Digital Panel Meter
.89"
2.71"
2.36"
0.16"
.86"
0.125" Max
Panel Thickness
A unique mounting bracket is provided to allow for vertical
and horizontal stacking of multiple indicators. All Mini-Max
units feature a 3/64 DIN, high-impact plastic case. Screw
terminals are provided for easy wiring of the power supply
and input signal connections.
Mounting Requirements
Insert the Mini-Max through the panel, and then slide the mounting brack-
et on to the Mini-Max. The mounting bracket allows Mini-Max units to
be stacked side-to-side or top-to-bottom and maintain the DIN standard
panel arrangements in 24mm by 72mm multiples. Panel cutout instruc-
tions for stacking multiple units are provided under "stacking features."
Temperature
