Simpson Falcon F35 Series Manual

Full 3-1/2 Digit, Bright Red 0.56" (14.2mm) Display
Broad Range Display Scaling
Short 2.94" (74.7mm) Deep, 1/8 DIN Case
Screw Terminal Connector for Easy Installation
Four User-Settable Ranges: 200μA, 2mA, 20mA, 200mA
Two Factory-Settable Ranges: 2A, 5A
User-Selectable Decimal Point
Average Responding and TRMS Measurement Ranges
Optional Isolated 9-32VDC Power Supply

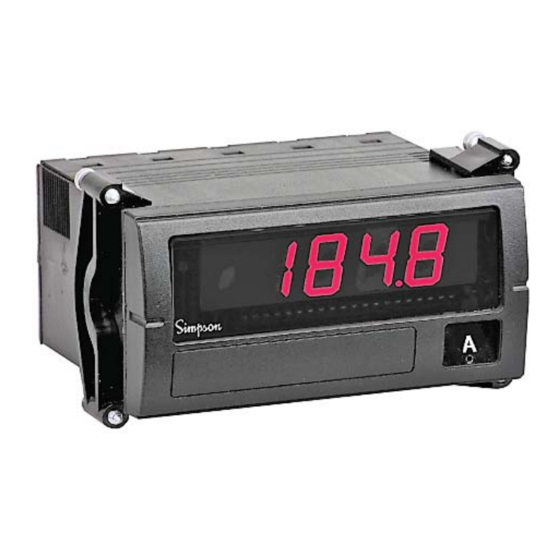

The Falcon Series digital indicators are premium quality
1/8 DIN meters for industrial applications. All Falcon units
feature selectable decimal point from the terminal block
and display scaling, providing wide application flexibility. In
addition, most signal input ranges are easy to change with
jumpers on the main board. The Falcon has a 0.56" bright
red LED display for high visibility.

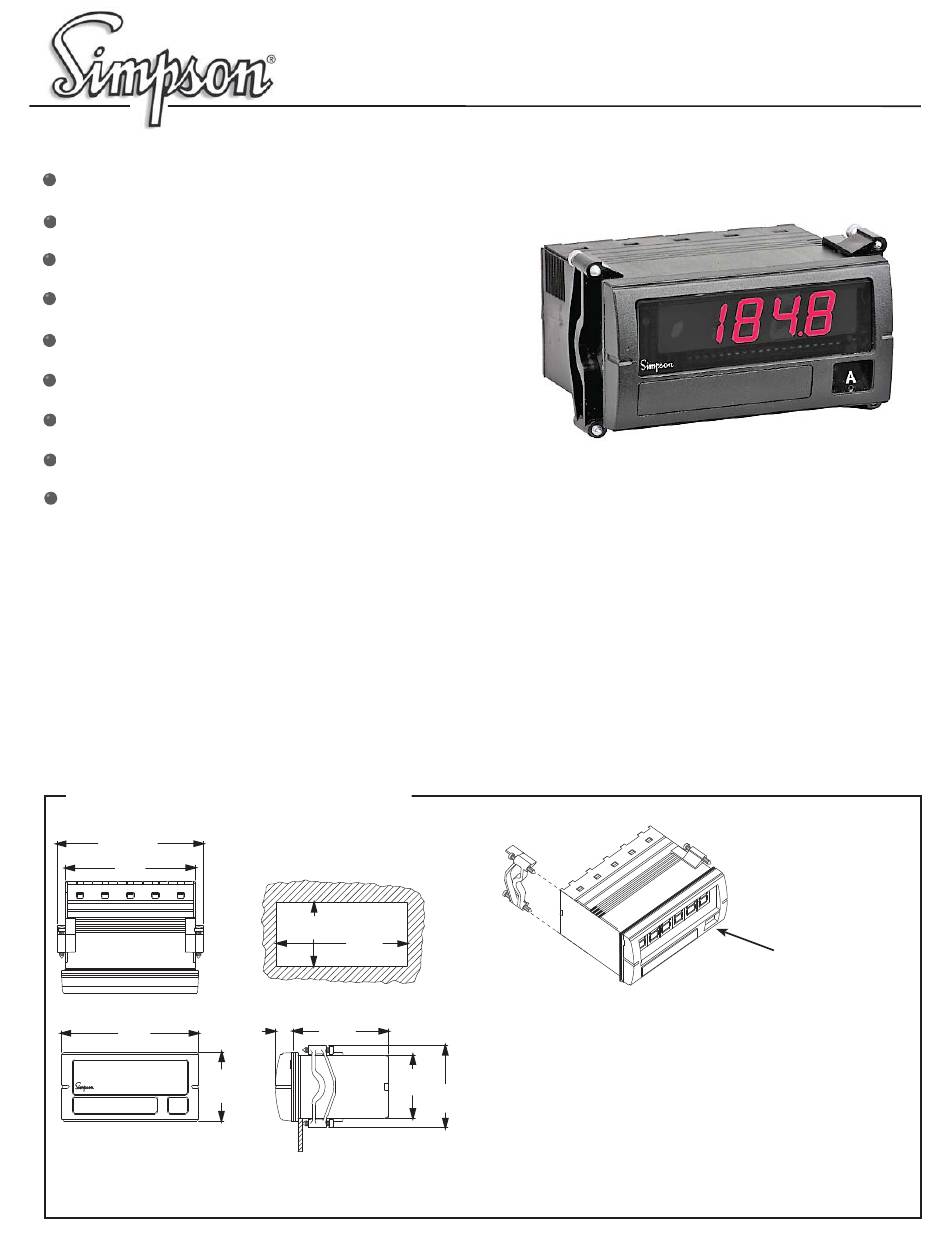

Installation and Panel Cutout

4.04"
3.59"
3.78"
1.89"
Falcon F35 Series Digital Panel Meter
1.77"
3.62"
0.51" 2.94"
1.74"
Compactly designed for applications requiring minimal rear
panel depth, the Falcon fits a standard 1/8 DIN panel cut-
out (91.9mm x 45mm) and requires less than 3" behind the
panel. A screw terminal connector is a standard feature
for easy wiring of the power supply and signal input con-
nections.
Mounting Requirements
The Falcon series 1/8 DIN indicators require a panel cutout of 1.77"
(45mm) high by 3.62" (91.9mm) wide. To install the Falcon into a panel
cutout, remove the clips from the side of the meter. Slide the meter
through your panel cutout, then slide the mounting clips back on the
meter. Press evenly to ensure a proper fit.
2.28"

Engineering Label Placement

If replacement of the engineering unit label is required, place the tip of a
ball-point pen into the small hole at the base of the engineering label in
the bezel. Slide the label up until it pops out. Grasp and remove. Slide
the new label half the distance in, then use the ball-point pen to slide it
down into place.
AC/TRMS Current
Engineering Label
