Simpson M245 Series Quick Start Manual

Simpson M245 Series Quick Start Manual

Digital panel meter

Advertisement

Quick Links

Minimum Depth Indicator - Less than 2.5" (60mm) of
Space Required Behind the Panel
Stackable Mounting Bracket for Easy Installation
4-1/2 Digit, 0.5" (12.7mm) High LCD Display with
Optional Negative Image, Bright Red Backlighting
Limited Range Display Scaling and Adjustable Offset
Standard Screw Terminals for Easy Installation
Four Ranges: 4-20mA, 1-5VDC, 0-10 VDC, 0-100VDC
85-250VAC or 9-32VDC Power
Scaled 0-100%

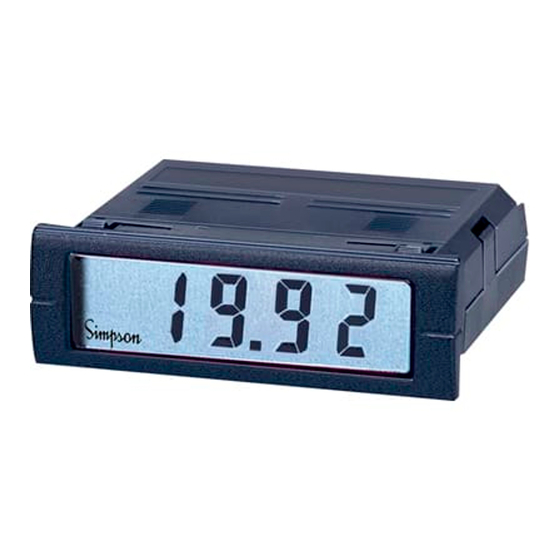

Simpson's Mini-Max Process Indicators provide high quality,
accuracy and reliability in a compact, 60mm deep case.
Units offer 4-1/2 digit, 0.5" (12.7mm) LCD display and are
available with a bright red, negative image backlight option.
All units feature user-selectable decimal point, auto zero and
limited scaling capabilities.

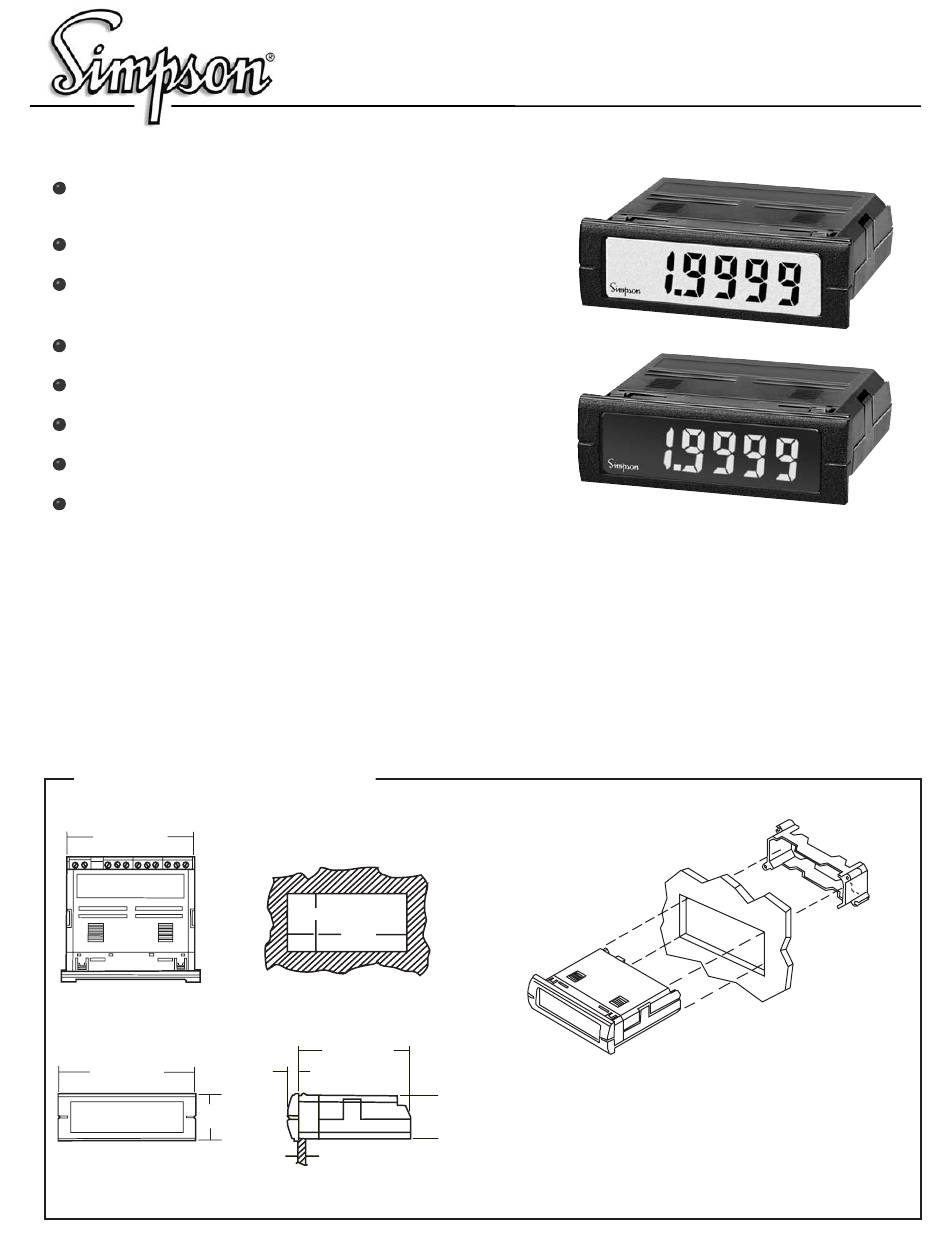

Installation and Panel Cutout
2.68: (68mm)
2.84" (72mm)
0.95"
(24mm)
Mini-Max M245 Series Digital Panel Meter
.88" (22.2mm)
2.68"
(68mm)
2.36" (60mm)
0.16"
(4mm)
(22.2mm)
0.13" (3.18mm) Max
Panel Thickness
A unique mounting bracket is provided to allow for vertical or
horizontal stacking of multiple indicators. All Mini-Max units
feature a 3/64 DIN, high-impact plastic case. The standard
units have a clear viewing window, and the units with option-
al negative image, red backlighting have a red window.
Mounting Requirements
.874"
Insert the Mini-Max through the panel, and then slide the mounting brack-
et on to the Mini-Max. The mounting bracket allows Mini-Max units to be
stacked side-to-side or top-to-bottom and maintain the DIN standard
panel arrangements in 24mm by 72mm multiples. Panel cutout instruc-
tions for stacking multiple units are provided under "stacking features."
DC Process

Advertisement

loading
Need help?

Need help?

Do you have a question about the M245 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Simpson M245 Series

  • Page 1 DC Process Mini-Max M245 Series Digital Panel Meter Minimum Depth Indicator - Less than 2.5” (60mm) of Space Required Behind the Panel Stackable Mounting Bracket for Easy Installation 4-1/2 Digit, 0.5” (12.7mm) High LCD Display with Optional Negative Image, Bright Red Backlighting...
  • Page 2 Specifications DISPLAY ENVIRONMENTAL MECHANICAL (cont.) Type: 7-segment LCD Operating Temperature: 0 to 55°C Depth: 2.36” (60mm) Height: 0.5” (12.7mm) Storage Temperature: -10 to 60°C Panel cutout: 0.88” x 2.68” Decimal point: 4-position programmable Relative Humidity: 0 to 85% non condensing (22.2mm x 68mm) Overrange indication: Most significant digit = “1”...
  • Page 3 Stacking Features The mounting brackets, included with every Mini-Max, can be connect- ed together. Multiple units can be mounted in a single opening, allow- ing perfect alignment. To punch one hole for multiple units, be sure to adjust the standard panel cutout dimensions as shown here;...
  • Page 4 NOTE: Display hold feature is configured at the factory only. Must specify at time of order. of the instrument. NOTE: Special scaling is available from the factory at the time of odering. SIMPSON ELECTRIC COMPANY 853 Dundee Avenue, Elgin IL 60120-3090 • (847) 697-2260 • FAX (847) 697-2272 www.simpsonelectric.com Printed in U.S.A.
