Huion DWH69 User Manual
Hide thumbs Also See for DWH69:

Advertisement

Graphic

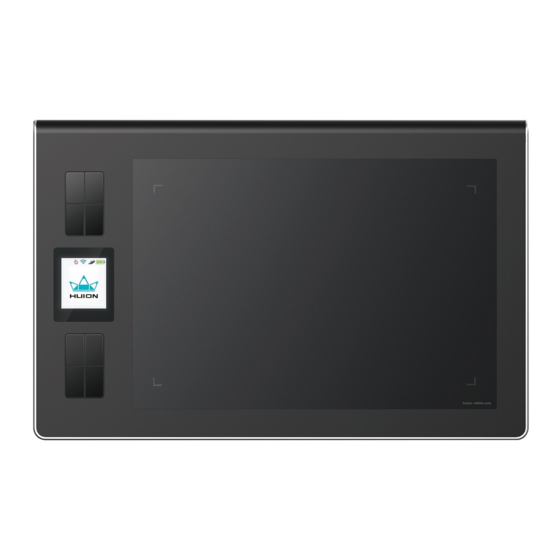

Model:DWH69

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWH69 and is the answer not in the manual?

Questions and answers

Summary of Contents for Huion DWH69

  • Page 1 Graphic Model:DWH69...
  • Page 2 Address: Tel: +86-755-61537861 www.huion-tablet.com Huion Building,Hi-Tech Park Shifeng, ShenZhen, P.R.China www.huiontablet.com Support: service@huion.cn service@huiontablet.com IM-DWH690-0-WIN000-0...
  • Page 3: Table Of Contents

    CONTENTS I . General Information 1. Overview 2. Pen Tablet Functions 3. System Requirements 4. Installing the Driver Software on Windows 5. Hardware Installation 6. Wireless Graphic Tablet 7. Usage Tips II. Driver Interface Introduction 1. Control Interface 2. Pen Buttons Settings 2.1 Key Functions 3.
  • Page 4: General Information

    I. General Information 1. Overview Welcome to the world of Graphic Tablet with rechargeable pen. Now you will discover how easy it is to use your personal computer by using a Graphic Tablet with rechargeable pen instead of a mouse.Unique feature of this rechargeable pen is that it makes it easy for you to draw thin, thick, light or dark (called pressure sensitivity) lines.
  • Page 5: System Requirements

    3. System Requirements Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 4. Installing the Driver Software on Windows Please close all painting software and antivirus software before driver installation. For Windows Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10 operating systems: (1) Insert the Driver CD intoa CD-ROM drive and wait for the main installation screen to appear.
  • Page 6: Wireless Graphic Tablet

    (1) Dual working modes - wired & wireless (wireless distance can reach 20 meters in open space) Wireless Graphic Tablet: USB Receiver Battery Touch Express Keys Active Area Touch Express Keys Button1 Button2 Pen tip *This illustration is of a model picture of Huion DWH69...
  • Page 7 (2) Functions of the LCD display 1).The LCD display will lit up when the Graphic Tablet is in normal working conditions; 2).The LCD display will show an icon to represent that the Graphic Tablet detected the pen; 3).The LCD display will show an icon to represent that you are touching the Express Key;...
  • Page 8: Usage Tips

    7. Usage Tips (1) Double tapping When you double tap with a rechargeable pen (equivalent to a double click with a mouse), try to keep pen’ tip away from the tablet’s surface, or at least try to lift the pen tip as fast as possible before the second tap. (2) Storing the rechargeable pen While storing the rechargeable pen, make sure the pen tip does not touch anything, especially the pen stand in a cup or pen holder with the tip down.
  • Page 9: Driver Interface Introduction

    ǁ. Driver Interface Introduction 1. Control Interface...
  • Page 10: Pen Buttons Settings

    When you double click the driver tablet icon ( ) that normally appears in the system tray at the corner of a screen, you will see control panel (pictured above). It will display driven-related information.Controlling the panel by digital graphic tablet can set up functions of a rechargeable pen, regulating pen’s pressure sensitivity. 2.
  • Page 11: Workspace And Hotkey Settings

    Default functions of the Rechargeable Pen (1) Pen nib is equivalent to the mouse left button function. (2) When first key is E, you can switch it to eraser in the graphic software (such as photoshop etc.) (3) Second key is equivalent to the mouse right function. 3.
  • Page 12: Workspace Settings

    3.1 Workspace Settings Area A:Softkey The work area:Area A+Area C Area B: Express key Full Area The work area:Area C Disable softkey Area C:the work area Area A: Soft Key area Area B: Express Key area Area C: The work area Disable Soft Key: Selecting this key, the Soft Key’s (only for some models with soft keys) functions will be disabled.
  • Page 13: No Shortcut Keys-Workspace Settings

    3.1.1.Express key Settings Click any Express keys to enter into the Express keys’ functions setting screen(pictured above), the corresponding Express Key are from K1-K8 of 8 express shortcuts. 3.2 Rechargeable Pen Pressure Sensitivity Test Click the control interface into Pressure Sensitivity Testing...
  • Page 15: Digital Pen Pressure Sensitivity Test

    4. Rechargeable Pen Pressure Sensitivity Test box 1 box 2 Pressure sensitivity: move the slider from left to right, to adjust sensitivity of the tip and severity of the stroke while drawing as it will affect change of the handwriting(box 1) Support TabletPC: If there in no pressure sensitivity in your drawing software, please check whether the Support TabletPC is checked or not.
  • Page 16: Lll. Pen Storage And Maintenance

    III. Pen Storage and Maintenance 1. Rechargeable LI-ION Battery & Tip Rechargeable LI-ION Battery 1. Tap on any surface with the tip of a pen, to “wake it up”. Charging port 2. It will “ auto sleep” if not used for a period of time. Notice: if the reading height Plug in USB cable and charging is lower and the line is...
  • Page 17 Charging port Pen Tip Pen Clip B: Push the pen’s tip into a rechargeable pen and make sure it fits up to the end properly. The pen tip replacement tool and 4 pen tips. Gently unscrew the pen holder in counter clockwise direction.
  • Page 18: Question & Answer

    Answer: You may have installed other drivers or opened the drawing software while installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion drive. Once installation is finished, open the drawing software to check if it works.
  • Page 20 FCC Information and Copyright This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

Table of Contents
