Summary of Contents for Huion GT10

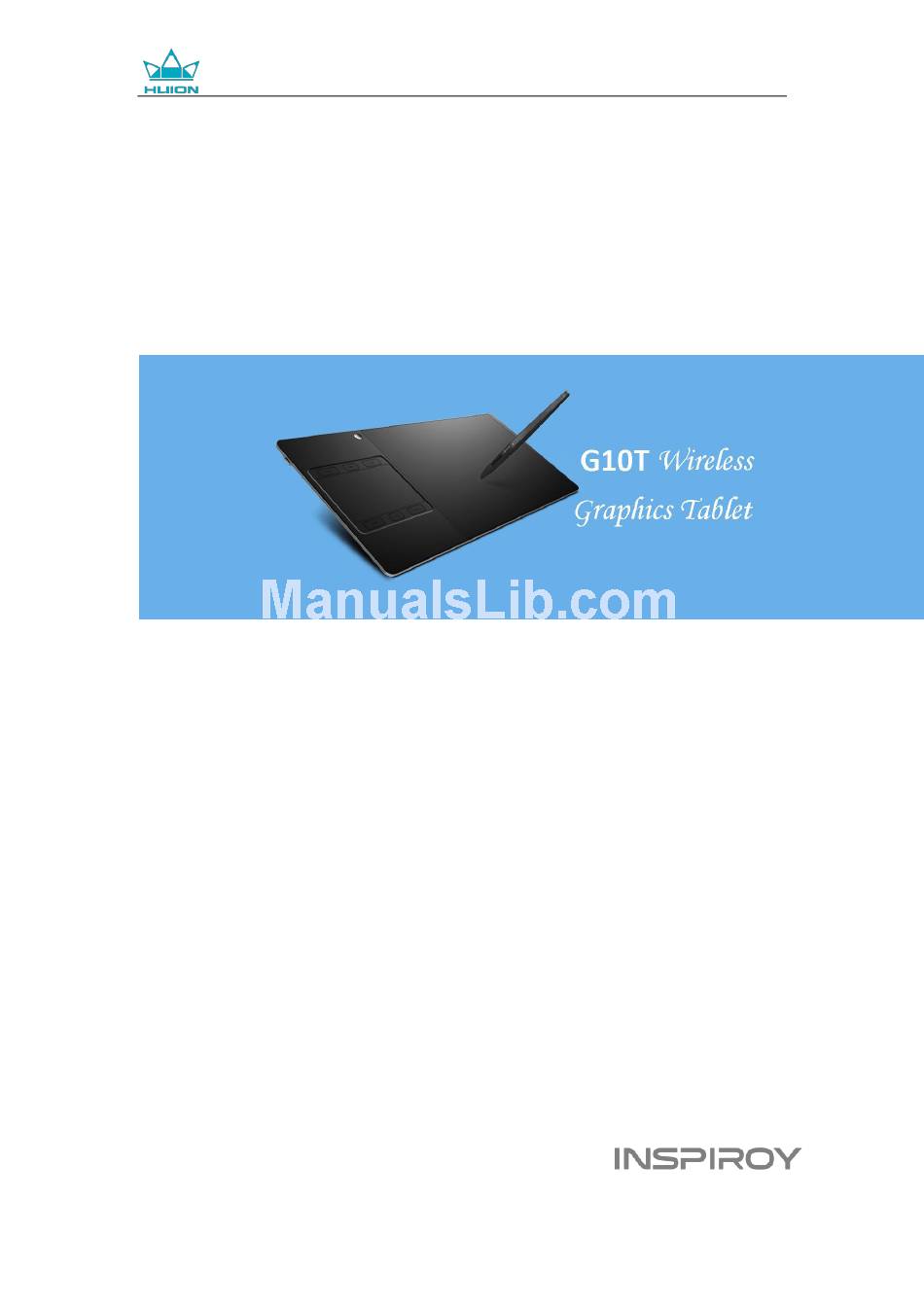

- Page 1 G10T Wireless Graphics Tablet User Manual For Windows and Macintosh OS...
- Page 2 3 months, otherwise it will cause lithium battery damage. 11. The nib of the digital pen can’t be pressed when it is placed, otherwise the pen can’t enter the power-saving state, which is easy to cause lithium battery over-discharge damage. 1 / 21 www.huion.com...
-
Page 3: Table Of Contents
3.8 Data export and import ........................16 4. Specifications ............................... 17 5. Trouble Shooting ..............................18 5.1 Possible Breakdowns Related to TABLET ..................18 5.2 Possible Breakdowns Related to SYSTEM ..................18 6. FCC Notice..............................19 2 / 21 www.huion.com... -
Page 4: Tablet Overview

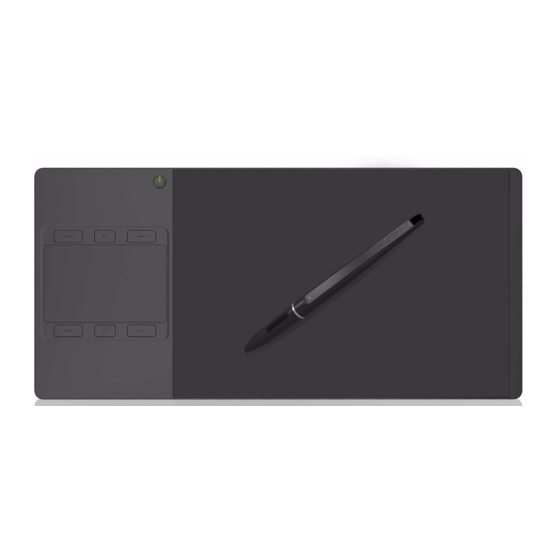

G10T Wireless Graphics Tablet 1. Tablet Overview 1.1 Tablet Introduction Thanks for choosing HUION INSPIROY G10T wireless graphics tablet. This is a ® ® new generation of portable professional drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen write on the paper, which brings you a real shock experience. - Page 5 ① Charging Port ② Charge Lamp ③ Upper Button ④ Lower Button ⑤Nib 1.2.3 Wireless Receiver When using wireless mode, please insert the receiver into your computer and unplug the USB-C cable in the same time. 4 / 21 www.huion.com...
-
Page 6: Tablet Connection
Nib Clip Installation CD Charging Cable USB-C Cable Quick Start Guide 1.3 Tablet Connection 1.3.1 Wired Mode Connection Connect to the internet(not essential). Close all graphic software and anti-virus program. Connect the USB-C cable to your computer. 5 / 21 www.huion.com... -
Page 7: Driver Installation
1.4.3 Install via Download If you don’t have a CD/DVD drive, you can download the driver from our website: www.huion.com After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; When you connect the display... -
Page 8: Pen Nib Replacement
2. Charge the pen with the attached charging cable. Insert one end of the charging cable into the rear of the stylus charging port, the other end can be connected to a computer, power supply or power bank. 7 / 21 www.huion.com... -
Page 9: Product Basic Operation
Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click. 8 / 21 www.huion.com... - Page 10 You can use the side switch whenever the pen tip is within 10mm of the display active area. You do not have to touch the pen tip to the display in order to use the switch. 9 / 21 www.huion.com...
-
Page 11: Using The Tablet
The battery status indicator shows RED when charging, and will be OFF when fully charged. 4. Whenever the tablet is connected to computer with USB cable, the wireless mode will be disabled. 10 / 21 www.huion.com... - Page 12 Display Desktop Fingers with four fingers Notice: 1. The above gestures only support some software 2. Some of the gestures may not working on different OS version 3. Touch function can be disabled in the driver 11 / 21 www.huion.com...
-
Page 13: Function Setting
If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously. 12 / 21 www.huion.com... - Page 14 2. Customized Area: 1.> Enter coordinate values. or 2>. Drag the corners of the foreground graphic to select the screen area. 3.2.3 Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. We provide four directions of choice. 13 / 21 www.huion.com...
-
Page 15: Press Keys Function Setting
Touch Bar：you can slide up and down to achieve zoom function. Enable/Disable Press Key: Check/Uncheck”Enable Press key” Enable/Disable Touch Bar: Check/Uncheck”Enable Touch” 3.4 Pen Button Setting Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. 14 / 21 www.huion.com... -
Page 16: Pressure Sensitivity Setting
3.6 Pen Pressure Testing Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink. 15 / 21 www.huion.com... -
Page 17: Enable The Windows Ink Feature
SketchBook6 or latest version 3.8 Data export and import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software to avoid the trouble of repeated settings. 16 / 21 www.huion.com... -
Page 18: Specifications
177.5 x 13.5 x 13.5mm Weight 16.5g Pressure 2048Levels Battery Capacity Approx. 80mAh Power Consumption Approx. 200uA Sleep Power Consumption Approx. 33uA Charge Time Approx. 1.3hrs Life Time Approx. 350hrs Automatic Sleep Time 15min Pen Tilt ±45° Accuracy ±0.3mm 17 / 21 www.huion.com... -
Page 19: Trouble Shooting
For more information, please contact us with our email：service@huion.com 18 / 21 www.huion.com... -
Page 20: Fcc Notice
-- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. FCC ID: 2AFEJ-H16WT 19/21 www.huion.com...
