- Page 1 INSPIROY Dial Q620M User Manual...
-
Page 2: Table Of Contents
Q620M Contents 1 / Precautions ......................3 2 / Product Overview ....................4 2.1 Tablet Introduction ........................4 2.2 Product and Accessories ......................4 2.3 Tablet Connection........................5 2.4 Introduction to LED Indicator ....................7 2.5 Install Driver ..........................8 3 / Pen Basic Operation .................... -
Page 3: Precautions
Q620M / Precautions 【 Please read this manual carefully before using, and keep it well for future reference.】 --Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents. --Don't expose this product to water or other liquids. -
Page 4: Product Overview

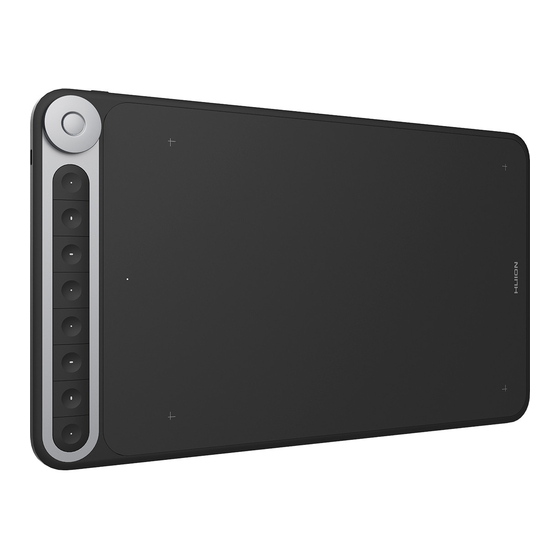

/ Product Overview 2.1 Tablet Introduction ® ® Thanks for choosing HUION INSPIROY Dial Q620M creative pen tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. -
Page 5: Tablet Connection
Q620M 2.2.2 Accessories Battery-free pen Replacement Nibs Pen Holder (inside the pen holder) Wireless Receiver Pen Nib Clip Cleaning Cloth (inside the pen holder) Quick Start Guide USB-C Cable Warranty Card 2.3 Tablet Connection 2.3.1 Connecting to Computer Connect the tablet to your computer with USB cable. [1] Take out the Usb cable from the package, then connect tablet to your computer. - Page 6 Q620M Wireless Mode [1] Insert the wireless receiver to your computer. [2] Switch the power button on to power on the tablet. [3] Not using 15 mins, the tablet will enter sleep mode. In this case, you need to switch the power button on again to wake the tablet up. 2.3.2 Connecting to Android Phone &...
-
Page 7: Introduction To Led Indicator
Q620M Notes: [1] The phone will reverse charge the tablet when they are wired connected and will quickly drain the phone battery, so it can only be used by wirelessly connecting to the phone. [2] The pen tablet can works without installing any driver into your phone/tablet. [3] Once connected, the tablet will automatically enter the phone mode, in which the pen can only work in the left gray area. -
Page 8: Install Driver
2.5.1 OS Support Windows 7 or later, macOS 10.12 or later. 2.5.2 Install Driver Please download the driver from our website: www.huion.com/download. After finishing installation, you can find the driver icon " " in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to color "... -
Page 9: Pen Basic Operation
Q620M / Pen Basic Operation 3.1 Hold the pen Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen. -
Page 10: Click
Q620M 3.3 Click Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it. 3.4 Move Select the object, then slide the pen tip across the screen to move it. 3.5 Use the side buttons The buttons on the pen can be set to two different customizable functions. -
Page 11: Pen Nib Replacement
Q620M 3.6 Pen Nib Replacement The nib will be wear off after using for a long time, then you need to replace a new nib. [1] Anticlockwise rotate the pen holder to open the cover, take a new nib out. [2] Insert the pen nib into the pen nib clip and tilt the pen to pull out the old nib. -
Page 12: Function Setting
Q620M / Function Setting 4.1 Working Area Setting 4.1.1 Using Multiple Monitors Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen. By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to. -
Page 13: Tablet Setting
Q620M ① ② ③ 4.1.3 Rotate Working Area By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0° , 90° , 180° or 270° . 4.2 Tablet Setting Click the "... - Page 14 Q620M 4.2.1 General settings Add App: Shortcut key function can be set by adding different programs. When opening different programs, the driver will automatically recognize that the shortcut function is the corresponding function set. 4.2.2 Hotkeys settings Set the shortcut key to quickly open the driver interface. The default value is Ctrl+Alt+H, which can be set according to usage habits.
-
Page 15: Press Keys Function Setting
Q620M 4.2.3 Updates You can view the driver version number, click "Check for Update", view the latest driver version, and update according to the system prompt. 4.3 Press Keys Function Setting Default Setting：Place the cursor on the press key or click the press key to find the default values. - Page 16 Q620M The following shortcut key customization interface is displayed, with a total of 5 Settings. ① Custom: according to the use of custom or professional terms to set. ② Key combination function keys: Ctrl, Shift, Alt, Win+ any letter or other. Ctrl, Shift, Alt, Win, you can select one or more of them, and you can arrange them in any combination.
-
Page 17: Pen Buttons Function Setting
Q620M 4.4 Pen Buttons Function Setting Select the function to be achieved on the pop-up dialog box, then click "Apply" or "OK" to take effect. 4.5 Enable the Windows Ink feature Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on. -
Page 18: Pressure Sensitivity Setting
Q620M 4.6 Pressure Sensitivity Setting The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive. Drag upward (left): the pressure change is more obvious, small pressure produces a great pressure. Drag down (right): pressure change is weak, a lot of pressure produces less pressure. -
Page 19: Pen Pressure Testing
Q620M 4.7 Pen Pressure Testing You can gradually apply pressure to the stylus on the screen to test the pressure level. Click " " button to clear all the ink. 4.8 Pen Nib Activity Setting The pen nibs can be set to be Active/Inactive as needed.Click the drop-down option to select, and click OK again to save the Settings. -
Page 20: Data Export And Import
Q620M 4.9 Data Export and Import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings. -
Page 21: Specifications
Q620M / Specifications Tablet Model Q620M Touch Technology Battery-Free Electromagnetic Resonance Computer：266.7 x 166.7mm Working Area Android：104.2 x 166.7mm Dimension 375.5 x 220.4 x 8mm Net Weight 666g Touch Resolution 5080LPI Report Rate 266PPS Pen Sensing Height 10mm Interface USB-C Press Keys 8 Programmable Press Keys + Dial Windows 7 or later，... -
Page 22: Trouble Shooting
There is no pressure in drawing software when installing the driver. Please uninstall all the graphics software drivers and close the drawing software, then reinstall the Huion but the cursor moves driver. It's better to restart your computer after finishing the installation.'...
