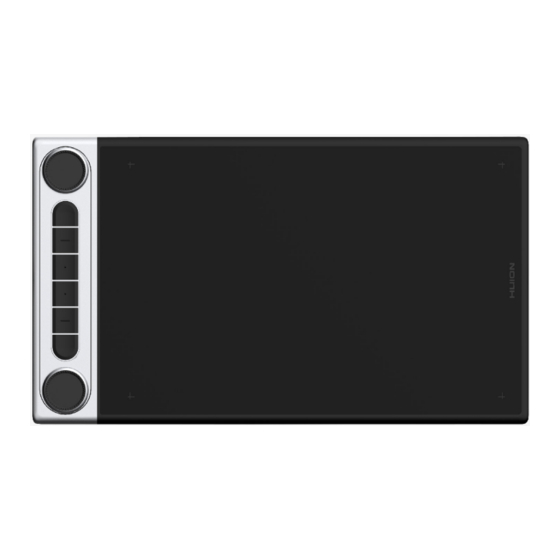

Huion Inspiroy Dial 2 Manual

Pen tablet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Contents
Product Overview ...................................................... 2
......................................................... 2
......................................................... 2
Connection .......................................................... 4
Driver Installation ..................................................... 7
........................................................ 7
Driver .............................................................. 9
.................................................... 11
........................................................ 18
.................................................... 22
....................................................... 26
How to Use the Digital Pen .............................................. 30
Troubleshooting ...................................................... 31
................................................ 9
Inspiroy Dial 2
1 / 33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inspiroy Dial 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Huion Inspiroy Dial 2

Summary of Contents for Huion Inspiroy Dial 2

  • Page 1: Table Of Contents

    Inspiroy Dial 2 Contents Product Overview ............2 Introduction ............2 Accessories ............2 Connection ............4 Driver Installation ............. 7 Windows/Mac ............7 Driver .............. 9 Driver Interface Overview ..........9 Pen Tablet Setting ............ 11 Dial Setting ............18 Digital Pen Setting ............

  • Page 2: Product Overview

    To better know and use this product, please read this user manual carefully. It shows how to use Inspiroy Dial 2 when you connect it to a computer running Windows operating system. It is also applicable to computers running Mac operating system unless a special note is given out.
  • Page 3 Inspiroy Dial 2 Please see the detailed product introduction. ① Function-switch Button 1: Press the button 1 to switch between the default functions of Dial 1 or the default tools of your Windows Radial menu. See Section ② Dial 1: Turn the Dial 1 clockwise or anti-clockwise to perform the function you assigned for Dial 1 in the driver or use the tool you selected in Windows Radial menu.

  • Page 4: Connection

    Inspiroy Dial 2 Connection You can connect Inspiroy Dial 2 to a computer or an Android device via a USB-C cable or Bluetooth. You can also check the tablet status by watching the indicator light on the left of Inspiroy Dial...
  • Page 5 Inspiroy Dial 2 1. Take out the USB-C cable from the box, and use it to connect Inspiroy Dial 2 to a computer. 2. Please choose and download the correct driver Driver-Inspiroy Dial 2 from our official website. 3. Open the driver and a picture of Inspiroy Dial 2 will appear, indicating that the pen tablet is successfully connected to your computer.
  • Page 6 Inspiroy Dial 2 If you do not find the tablet (Inspiroy Dial 2-xxx) on your computer or Android device, follow the instruction below to pair them: 1. Turn on Bluetooth on your computer or Android device. 2. Press the power button of Inspiroy Dial 2 to start it.

  • Page 7: Driver Installation

    Inspiroy Dial 2 Note: If the aspect ratio of active working area of Inspiroy Dial 2 is out of proportion with that of your phone screen or computer screen, please press K1+K4 simultaneously for 3 seconds to adjust it. Driver Installation...
  • Page 8 ② Please make sure your computer operating system is Windows 7 or later/mac OS 10.12 or later. ③ Open the driver and a picture of Inspiroy Dial 2 will appear, indicating that the pen tablet is successfully connected to your computer. Now you can use your pen tablet.

  • Page 9: Driver

    Inspiroy Dial 2 Driver Driver Interface Overview 9 / 33...
  • Page 10 Pressure Sensitivity Adjustment, and Pressure Test. See Section 3. Store Huion Store is where you can get the latest information about the product such as its FAQ or sales promotion. In addition, you can also purchase Huion’s other products or accessories here.

  • Page 11: Pen Tablet Setting

    Inspiroy Dial 2 4. Add Programs 1. Some programs which have already been opened will appear for you to choose from after clicking Add a Program on the screen. For more programs, click Browser and choose the item that you want to get it added.
  • Page 12 Inspiroy Dial 2 default value. 2. Click a button and assign the function you want to it. (You can choose among the functions below.) Refer to this table of settings below to help you decide if you want to change the existing settings.
  • Page 13 Inspiroy Dial 2 Wheel Forward and Wheel Backward. Other functions: Ctrl, Alt, Shift, and Win. Switch Select between Switch Screen, Switch Brush, Mouse Mode On/Off, and Game Mode On/Off. Run Program Click Browse and select the program that you want to run quickly. After that, press the key to launch the item.
  • Page 14 Inspiroy Dial 2 Note: The pictures are for reference only. Click Customize in the picture above to call out a quick menu (see picture 1). For each of the six buttons on the left, users can enter a name for it and set unique function for it. After that, users can call up the Quick Menu by pressing the key (see picture 2).
  • Page 15 Inspiroy Dial 2 Picture 2 Picture 3 Working Area Select the Working Area tab to adjust the ratio of the distance of pen movement on the pen tablet to that of the corresponding cursor movement on the monitor. If only one monitor is in use: By default the entire active area of pen tablet maps to the whole monitor.
  • Page 16 Inspiroy Dial 2 1. Working Area Setting Define the active working area of Inspiroy Dial 2 that will be mapped to the monitor. Three modes on the driver can be chosen: [1] Full Area: The entire active area of the pen tablet will be mapped to the monitor. It is the default setting.
  • Page 17 Inspiroy Dial 2 Picture 2 Picture 3 17 / 33...

  • Page 18: Dial Setting

    You can use any dial controller separately or use it to work with Windows Radial menu. The function of a dial controller can be programmed in Huion driver. To change or customize the tools of Windows Radial menu, please go to Windows Settings > Devices > Wheel. In addition, you can press the function-switch button to switch between three functions of a dial controller or different tools of your Windows Radial menu.
  • Page 19 Inspiroy Dial 2 1.Open the driver and click “Dial Setting”. 2.Choose Dial 1 (Dial 2). 3.Select “Customize”. 4.Drag the slider to select the sensitivity of Dial 1. 5.Turn the dial controller clockwise or anti-clockwise to use it. Note: There are three default functions for every dial controller and any of them can be changed.
  • Page 20 Inspiroy Dial 2 2.Click Dial 1 (Dial 2) on the picture of Inspiroy Dial 2 on the “Pen Tablet” interface. 20 / 33...
  • Page 21 Inspiroy Dial 2 3.Choose the functions you want to assign to Dial 1 (Dial 2). *For detailed information about the functions of a dial controller, please refer to the table of settings below. Default The default three functions of a dial controller are “Zoom in/out”, “Adjust Brush Size”, Multimedia You can turn the dial controller to play the previous song or next song.

  • Page 22: Digital Pen Setting

    Inspiroy Dial 2 1.Open the driver and click “Dial Setting”. 2.Choose Dial 1 (Dial 2). 3.Select “Radial”. 4.Turn the dial controller clockwise or anti-clockwise to use it. *To change the tools of your Windows Radial menu, please follow the instructions below: 1.Select “Radial”...
  • Page 23 Inspiroy Dial 2 refer to it.See Section 2. Pen Nib Activity The pen nib of the digital pen can be set as Valid/Invalid according to users’ needs. Click the drop-down button to set its activity. In Valid mode, the pen works well, and in Invalid mode, the pen has a cursor movement, but cannot complete specified actions.
  • Page 24 Inspiroy Dial 2 3. Enable Windows ink Microsoft Windows provides extensive support for pen input. When the “Enable Windows Ink” option is ticked, pen features are supported in software such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6, etc.
  • Page 25 Inspiroy Dial 2 5. Pressure Sensitivity Adjustment Users can adjust the pressure sensitivity level by dragging the slider in the Pressure Sensitivity Adjustment box according to your usage habits. Users can also check the five options from soft to hard on the right of the box to find the proper pressure sensitivity for themselves.

  • Page 26: Driver Setting

    Inspiroy Dial 2 Driver Setting 1. Device You can view the information of the firmware, the connected product, sleep time, and Device Diagnosis here. You can also move the bar to adjust the brightness of smart LCD screen on the top left of your tablet.
  • Page 27 Inspiroy Dial 2 2. Backup The Driver can import and export your custom settings, which helps to avoid repeated settings when launching a different program. 27 / 33...
  • Page 28 [5]Low Battery Notification: A pop-out notification with a low battery icon will show up if the battery of Inspiroy Dial 2 is less than 20%. This notification is activated by default. If you want to stop it from appearing again, you can cancel it in the Settings.
  • Page 29 Inspiroy Dial 2 4. About Users can check the Driver version here. Click “Check for Updates” to find the latest Driver version and then follow the prompts to update the Driver if needed. 29 / 33...

  • Page 30: How To Use The Digital Pen

    Inspiroy Dial 2 How to Use the Digital Pen Hold the Pen: Hold the digital pen as you hold a real pen. Adjust your grip so that you can toggle the pen press keys easily with your thumb or index finger. Be careful not to accidentally press the key while drawing with the pen.

  • Page 31: Troubleshooting

    The pen tablet cannot sense the pen pressure while the cursor can move. You may have installed other drivers or run the drawing software when installing the driver. Please uninstall all the drivers, close the drawing software, and then reinstall the Huion driver. 31 / 33...
  • Page 32 Please check whether the USB port of your computer functions well. If not, please try another USB port. The Failed to connect Inspiroy Dial 2 to other device and “Device Disconnected” appears. Please restart your computer or driver; make sure the USB port and USB-C cable work well;...
  • Page 33 Inspiroy Dial 2 If your problem is not resolved, please clickFAQsto view more troubleshooting methods or email us(service@huion.com). 33 / 33...
