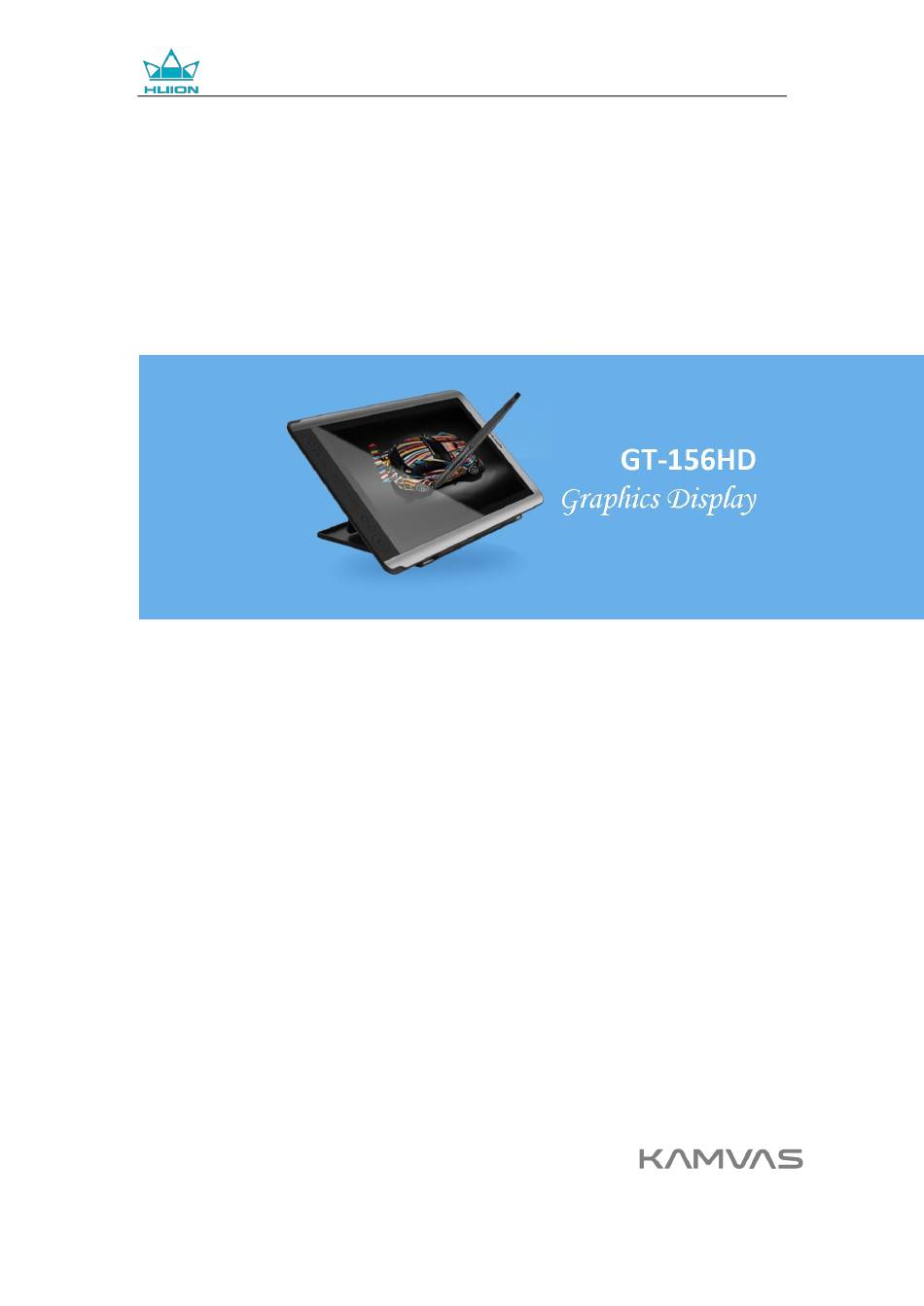

GT-156HD Graphics Display
User Manual
For Windows and Macintosh OS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kamvas GT-156HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Huion Kamvas GT-156HD

  • Page 1 GT-156HD Graphics Display User Manual For Windows and Macintosh OS...
  • Page 2 3 months, otherwise it will cause lithium battery damage. 15. The nib of the digital pen can’t be pressed when it is placed, otherwise the pen can’t enter the power-saving state, which is easy to cause lithium battery over-discharge damage. 1 / 19 www.huion.com...
  • Page 3: Table Of Contents

    3.8 Enable the Windows Ink feature ......................16 3.9 Data export and import ........................16 4. Specifications ............................... 17 5. Trouble Shooting ..............................18 5.1 Possible Breakdowns Related to DISPLAY..................18 5.2 Possible Breakdowns Related to FUNCTIONS ................18 2 / 19 www.huion.com...
  • Page 4: Display Overview

    1. Display Overview 1.1 Display Introduction ® ® Thanks for choosing HUION KAMVAS GT-156HD graphics display. This is a new generation of portable desktop-level professional drawing display, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen write on the paper, which brings you a real shock experience.
  • Page 5 The stylus pen is a rechargeable pen with 2048 levels pressure sensitivity and can be used for 350hrs with full battery. ① Charging Port ② Charge Lamp ③ Upper Button ④ Lower Button ⑤Nib 1.2.3 3-in-1 Connection Cable ② ③ ① ④ ① HDMI ②USB ③Power ④30pin 3-in-1 Interface 4 / 19 www.huion.com...
  • Page 6 We designed this stand specially for your KAMVAS display, you can adjust the angle of the display according to your usage habit, and make you feel more comfortable in painting and creation. ①30° ②60° ② ① 5 / 19 www.huion.com...
  • Page 7: Display Connection

    Turn on computer and switch on the display, the LED indicator will show the current status: Green means working normal, Orange means no signal. The display shows normal, and the pen can operate the system to prove that the connection has been successful. 6 / 19 www.huion.com...
  • Page 8: Driver Installation

    1.4.3 Install via Download If you don’t have a CD/DVD drive, you can download the driver from our website: www.huion.com After finishing installation, you can find the driver icon in the system tray area, which means the driver was installed successfully; When you connect the display...
  • Page 9: Charging The Pen

    Notice:When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep state. 8 / 19 www.huion.com...
  • Page 10 2.1.3 Click Use the pen tip to tap once on the screen to produce a click. Tap to highlight or select an item on the screen and double-click to open it. 9 / 19 www.huion.com...
  • Page 11 You can use the side switch whenever the pen tip is within 10mm of the display active area. You do not have to touch the pen tip to the display in order to use the switch. 10 / 19 www.huion.com...
  • Page 12: Using The Display

    3. Function Setting 3.1 Device Connection Prompt 1. Device disconnected:The display didn’t connected to your computer. 2. Device connected:The display has already connected to your computer. 11 / 19 www.huion.com...
  • Page 13: Working Area Setting

    1. Full Area: the entire active area of the Display. This is the default setting. 2. Same Ratio with LCD: 3. Customized Area: 1.> Enter coordinate values. or 2>. Drag the corners of the foreground graphic to select the screen area. 12 / 19 www.huion.com...
  • Page 14: Press Keys Function Setting

    Customize Press:Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. Touch Bar:you can slide up and down to achieve zoom function Enable/Disable Press Key: Check/Uncheck”Enable Press key” Enable/Disable Touch Bar: Check/Uncheck”Enable Touch” 13 / 19 www.huion.com...
  • Page 15: Pen Button Setting

    Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. 3.5 Pressure Sensitivity Setting The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more sensitive the pressure. 14 / 19 www.huion.com...
  • Page 16: Pen Pressure Testing

    Screen Calibration:Click the red point of the cross center appears on the screen to complete the calibration. Restore factory settings: Click "Restore factory settings" to restore to the factory settings. Cancel Calibration:Click"Cancel calibration” or press ESC on the keyboard to cancel the calibration. 15 / 19 www.huion.com...
  • Page 17: Enable The Windows Ink Feature

    SketchBook6 or latest version 3.9 Data export and import The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software to avoid the trouble of repeated settings. 16 / 19 www.huion.com...
  • Page 18: Specifications

    432 X 264 X 14.8mm General Net Weight 1.5kg(without stand) Adjustable Stand Two Levels Stand OS Support Windows 7/8/8.1/10,MAC OS ×10.10 or later Working Temperature and 0 -+40°C 、 20-80% Humidity Storage Temperature and Humidity —20°C~60°C、 10-90%RH 17 / 19 www.huion.com...
  • Page 19: Trouble Shooting

    10mm There is a deviation between the tip Try calibration and the cursor For more information, please contact us with our email:service@huion.com 18 / 19 www.huion.com...
