Related Manuals for NOMA 052-8687-4
Summary of Contents for NOMA 052-8687-4

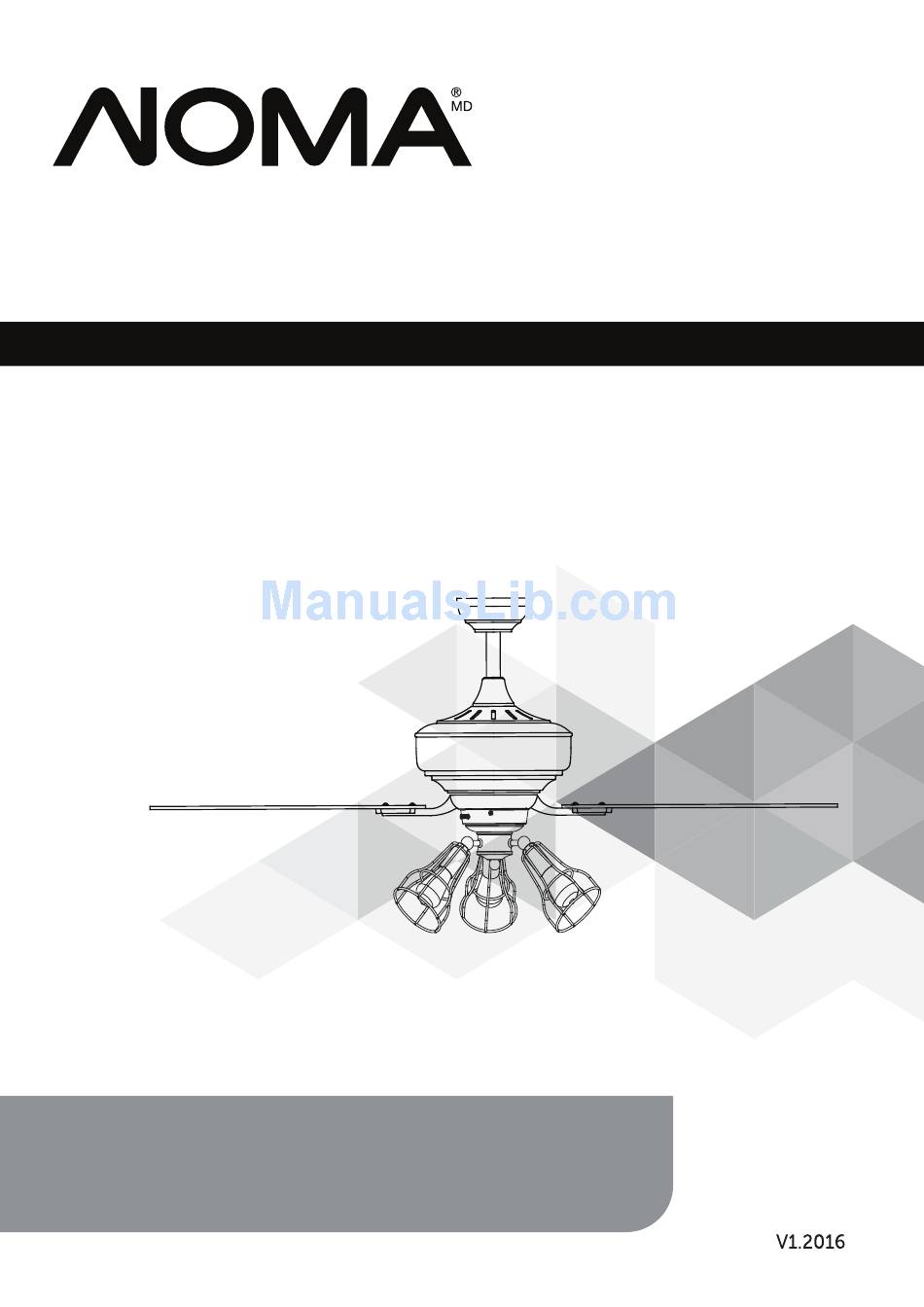

- Page 1 Gunnar Ceiling Fan model no. 052-8687-4 Toll-free 1-866-827-4985 IMPORTANT: For your safety, please read and understand OWNER’S MANUAL this manual before installing or operating this product.
- Page 2 Toll Free 1-866-827-4985 model no. 052-8687-4 Safety Rules – Read and Save These Instructions before beginning. 2. All wiring must be in accordance with the national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
- Page 3 To Beging: Tools Needed (not supplied) Required Crosshead Flathead Safety glasses screwdriver screwdriver Pliers Wire cutters Electrical tape Step ladder Helpful Wire strippers Soft cloth To prevent personal injury and damage, ensure that the hanging location allows the blades a 30”...
-
Page 4: Package Contents
Toll Free 1-866-827-4985 model no. 052-8687-4 Package Contents: Unpack your fan and check the contents. You should have the following items. 1.) Hanger Bracket 2.) Canopy 3.) Canopy Cover 4.) Downrod Stand Cover Parts pack containing: 5.) Downrod Set (Included Hanger Ball, Downrod, Hanger Pin &... -
Page 5: Safety Instructions
Safety Instructions Read all safety information and installation instructions before you begin to install the fan and save instructions. 1. All set screws of the fan must be checked and retightened where necessary before installation. 2. To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades or cleaning the fan. -
Page 6: Installation Steps
Toll Free 1-866-827-4985 model no. 052-8687-4 Installation Steps : Turn OFF the electric circuit at the main fuse or circuit breaker box (Fig. 1). Fig. 1 2. (1) Securely attach the mounting bracket to an outlet box marked “Acceptable for Fan Support ”, using the supplied outlet box screws Mounting with spring washers (Fig. - Page 7 6. Insert and tighten the two collar screws. Slide lock pin into hanger pin until it is locked into position (Fig. 6). Lock Pin Collar Screws Fig. 6 7. Hang the fan on hanger bracket, and make sure the slot of hanger ball Hanger Bracket is snapped into the chip of hanger bracket exactly (Fig.
- Page 8 Toll Free 1-866-827-4985 model no. 052-8687-4 Between fan and receiver : Connect the black wire marked ”L” from the fan to the black wire marked “TO MOTOR L” from the receiver. Connect the blue wire marked ”FOR LIGHT” from the fan to the blue wire marked “FOR LIGHT” from the receiver.
- Page 9 10. Tighten fan blades to blade brackets by using blade screws and washers (Fig. 10). Blade Screw Washer Fan Blade Blade Bracket Fig. 10 11. Secure blade brackets to the motor with motor screws and washers (Fig. 11). If there are plastic tabs shaped like bottle caps, remove and discard them.
-
Page 10: Operating Your Transmitter
Toll Free 1-866-827-4985 model no. 052-8687-4 15. The slide switch on switch box sets direction of fan rotation. Select the desired direction of fan rotation. Push the slide switch left for “Forward” and right for "Reverse" (Fig. 15). Forward Reverse... - Page 11 18. Turn on the electric circuit at the main fuse or circuit breaker box (Fig. 18). Fig.18 PROBLEM SUGGESTED REMEDY 1. Check main and branch circuit fuses or circuit breakers. 1. If fan does not start: 2. Make sure forward/reverse switch is firmly in left or right position. Fan will not operate when switch is in the middle.
- Page 12 Toll Free 1-866-827-4985 model no. 052-8687-4 DYNAMIC BLADE BALANCING KIT YARDSTICK BALANCING WEIGHT CENTRELINES MEASURING POINT COUNTER- CLOCKWISE PLASTIC CLIP PREFACE Your ceiling fan may sometimes have wobbling problems when operating due to irregularity in the blades or the blade holders. Improper assembly in the mounting systemmay cause some additional problems.
-
Page 13: Care Of Your Fan
This product carries a limited ten (10) year warranty against defects in the motor, and a one (1) year warranty against defects in workmanship and materials. Noma Canada agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
Need help?
Do you have a question about the 052-8687-4 and is the answer not in the manual?
Questions and answers

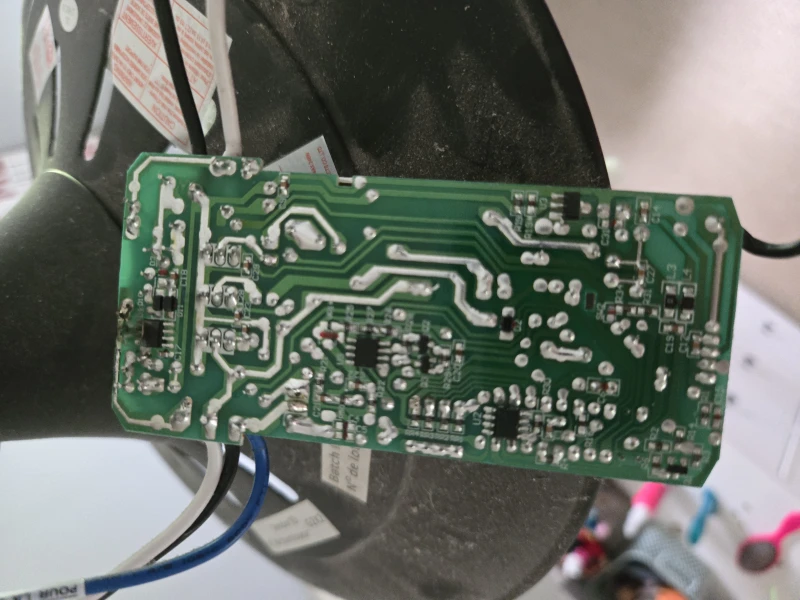

Fan blew up
If the NOMA fan (part number 052-8687-4) has stopped working, follow these troubleshooting steps:
1. Check the main and branch circuit fuses or breakers.
2. Check the line wire connections to the fan.
3. Check the switch wire connections in the switch housing.
This answer is automatically generated
