Pro-Form PFEX01215.0 User Manual page 12

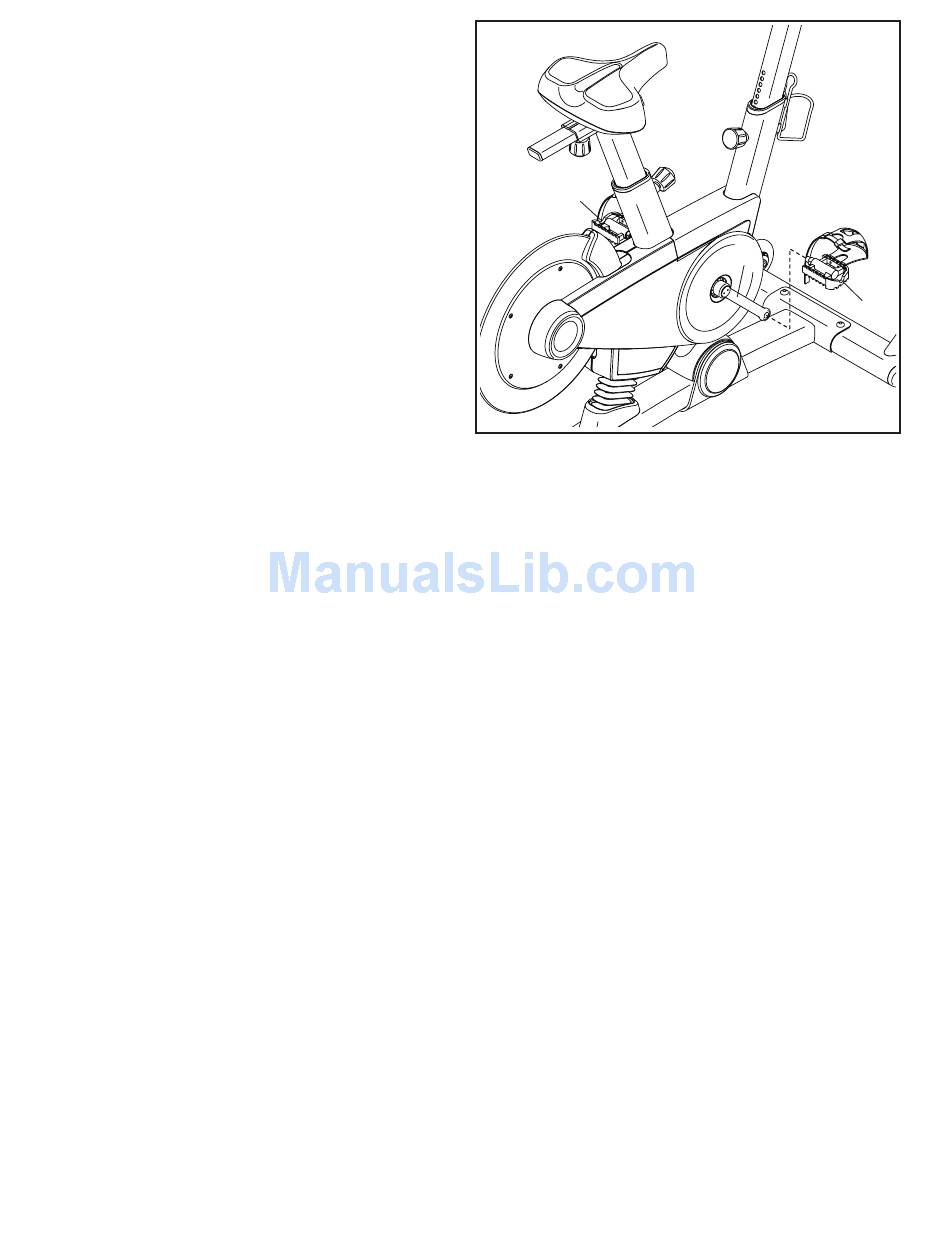

12. Identify the Right Pedal (62).
Using the included flat wrench tool, firmly
tighten the Right Pedal (62) clockwise into the
Right Crank Arm (64).
Firmly tighten the Left Pedal (61) coun-
terclockwise into the Left Crank Arm (not
shown). IMPORTANT: You must turn the Left
Pedal counterclockwise to attach it.
To adjust the straps on the Pedals (61, 62), see
HOW TO USE THE PEDALS on page 15.
13. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.
12
61
12
64
62
