Connectivity with TBS CORE PRO OSD
One of the biggest advancements with the TBS POWERCUBE is the connectivity to the TBS CORE PRO /
FPVision, a next-generation OSD system. The software update that we released together with the TBS
POWERCUBE enables the CORE PRO (V1.24 and later) to access and modify CleanFlight settings from the CORE
OSD, as well as other handy features.
TBS CORE PRO Connection
The POWERCUBE has a BST connector on the PDB layer which allows a connection to the CORE PRO. This
connection provides battery power and current sensor data for the OSD on the CORE PRO. The FPV
transmitter and camera must be connected to the CORE PRO not the POWERCUBE for the OSD to work.
See the TBS CORE PRO manual for further details on selecting output voltage and configuring the OSD:
http://www.team-blacksheep.com/tbs-core-pro-manual.pdf

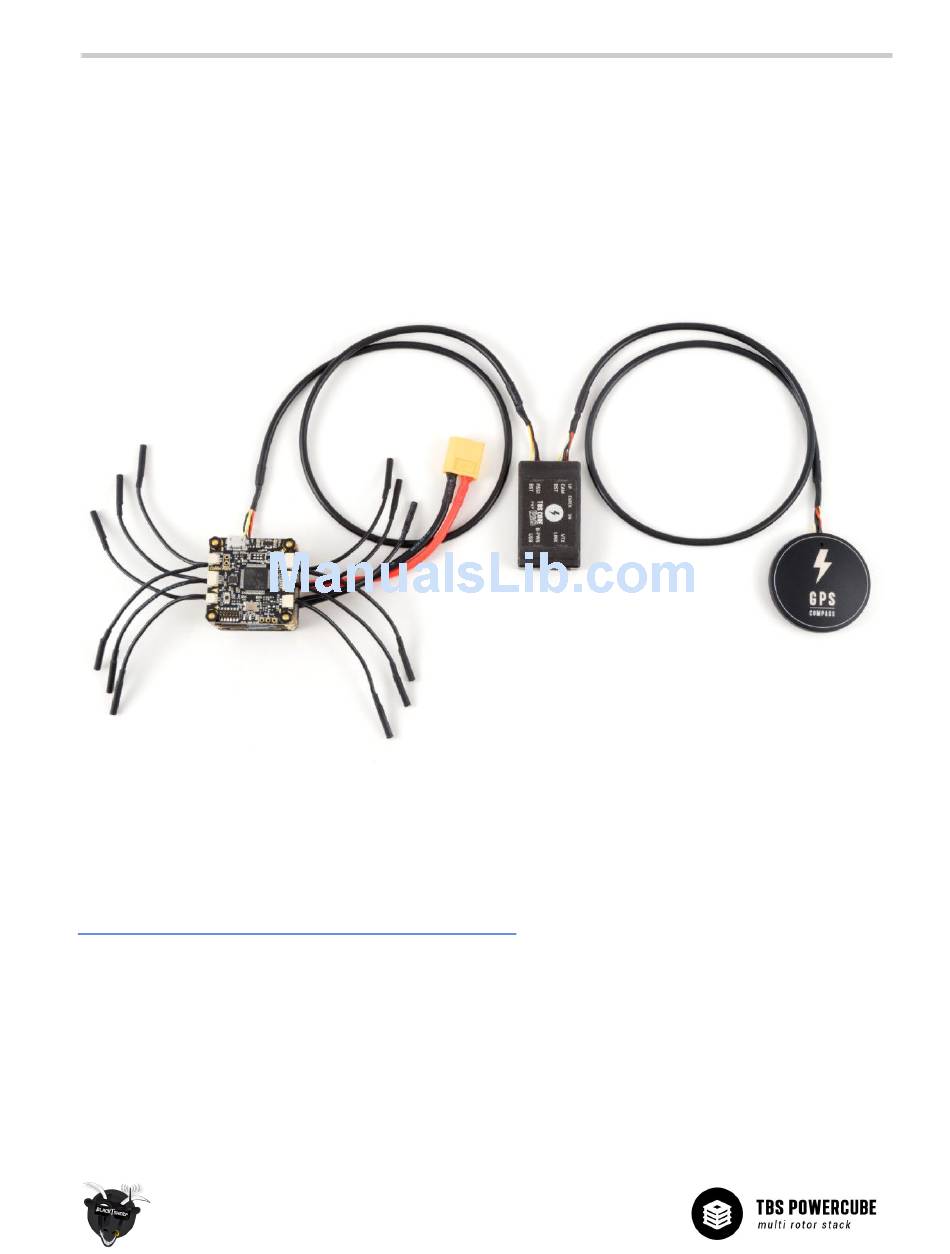

Connect a suitable length cable between the CORE PRO and POWERCUBE (long and short cables supplied).
Connect a GPS to the CORE PRO if you require position data. If you run out of BST ports, you can use a TBS
4-way BST splitter to get more ports.
