West
V1&V2:

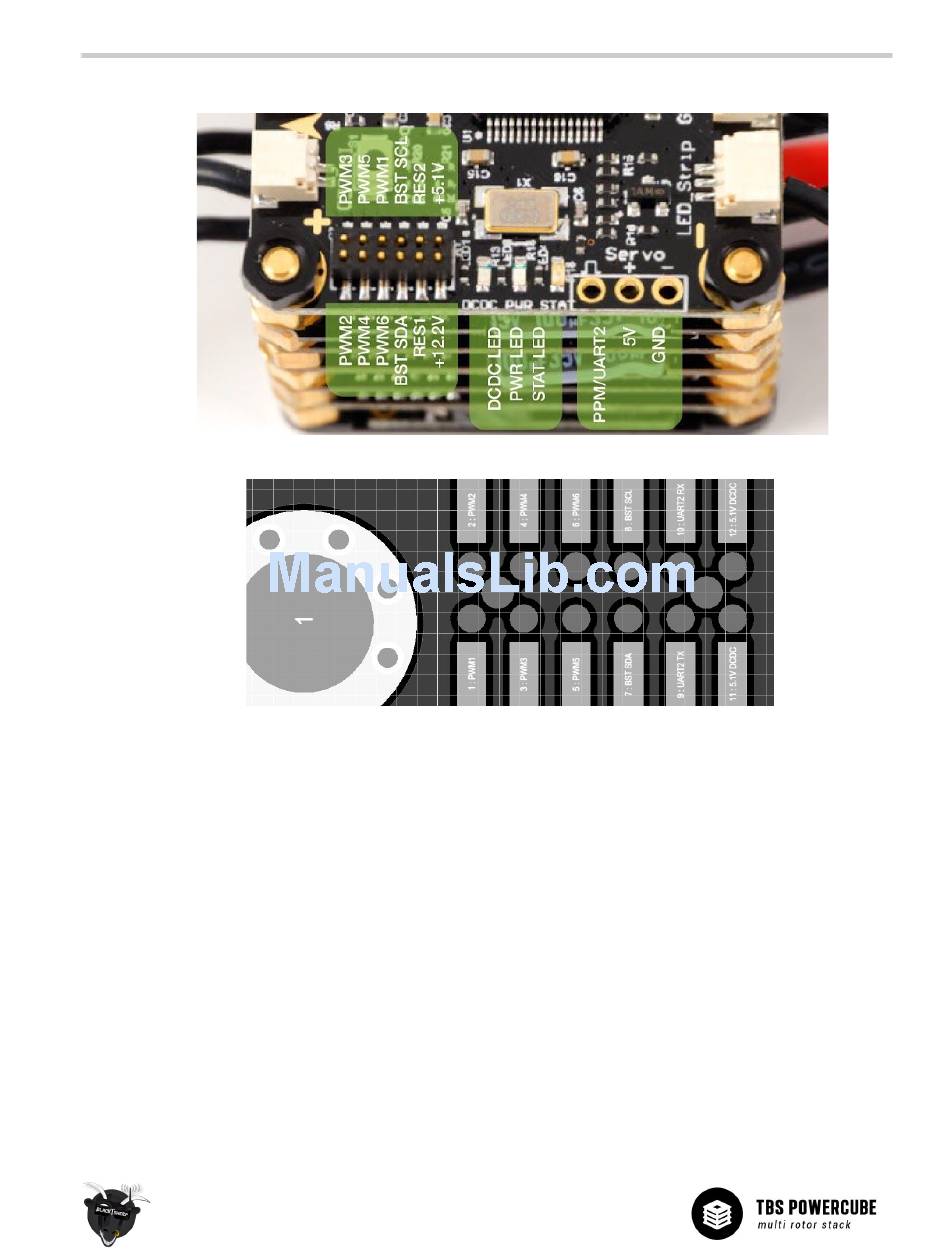

Stacking header - Connecting the different layers in the stack
•
Top row: PWM2, PWM4, PWM6, BST SCL, UART2_RX, +5V
Bottom row: PWM1, PWM3, PWM5, BST SDA, UART2_TX, +5V PDB V2 and FPVision (NEW!) /
+12V PDB V1
•
LEDs - Status indicator
DCDC LED, lights up once 12V is available over internal BUS
PWR control LED, controlled via CleanFlight/BetaFlight
STAT LED, controlled via CleanFlight/BetaFlight
Servo - One Servo output (for tricopters) with 3-pins for PWM / 5V / GND
•
5V is provided from internal BUS
Stacking header pin-out:
18
