South - tbs electronics PowerCube Manual

South

V1&V2:

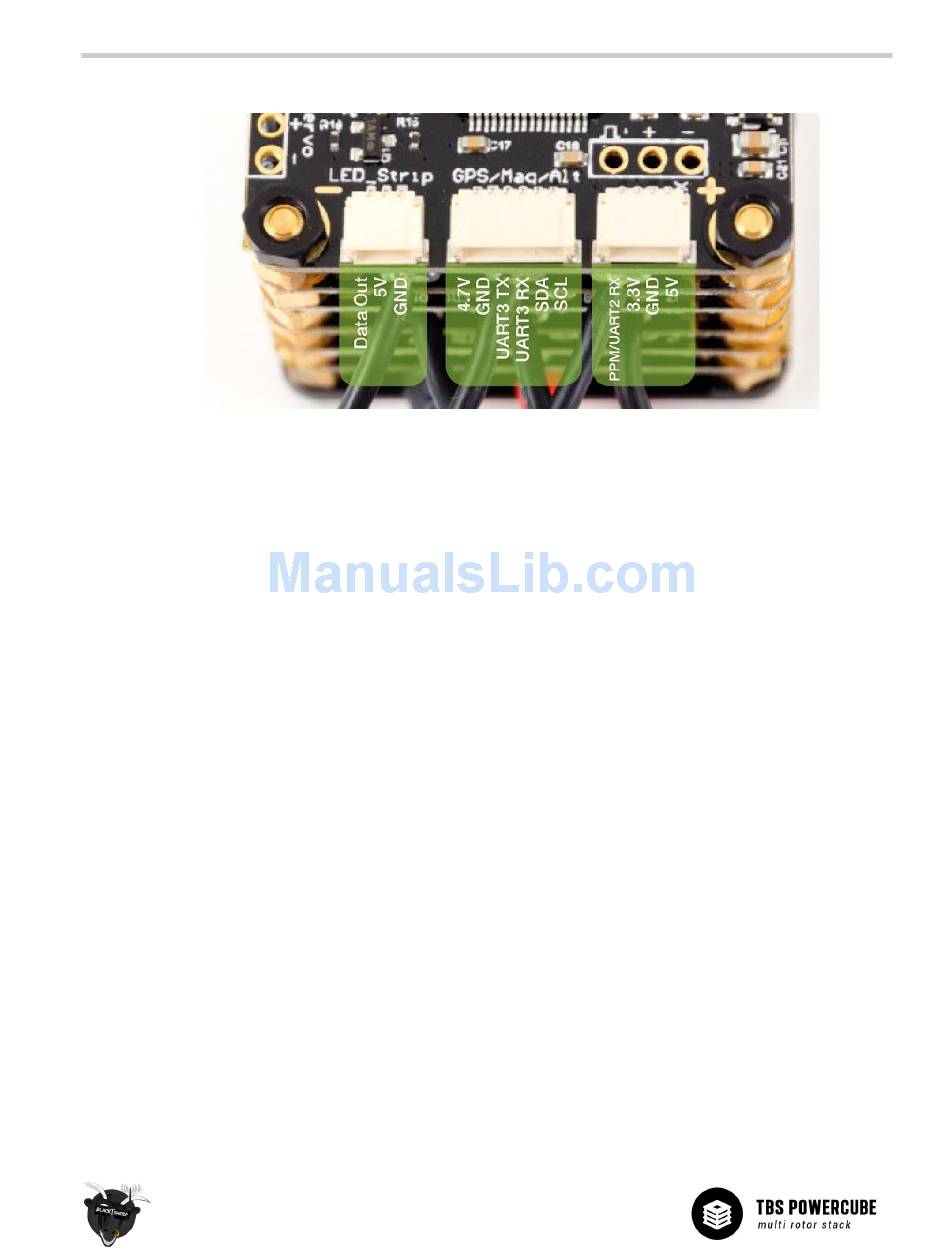

• LED_Strip ​ - For directly connecting WS2812B, WS2812, and WS2811 based RGB LED strips
Regulated 5V PWR provided to connector over internal BUS, no additional voltage regulator
required!
Any WS2812B LED boards with up to 32 LEDs should work
Pin-out from left: Data Out / 5V / GND
Signal-pin connects to DIN on WS28xx pads
GPS/Mag/Alt (UART3) ​ - Connector for external GPS, magnetometer and altitude sensors - or other
•
uses, can be configured in Cleanflight/BetaFlight.
Pin-out from left: 5V / GND / UART3 TX / UART3 RX / SDA / SCL
RC_RX ​ - Two receiver signal connectors, supports: PPM, S.BUS, SPEKT, DSM, DSMX
•
Pin-out from left: PPM, UART2 RX / 3.3V / GND / 5V
Additional 2.54mm pitch soldering pads available for direct soldering receiver signal
17
