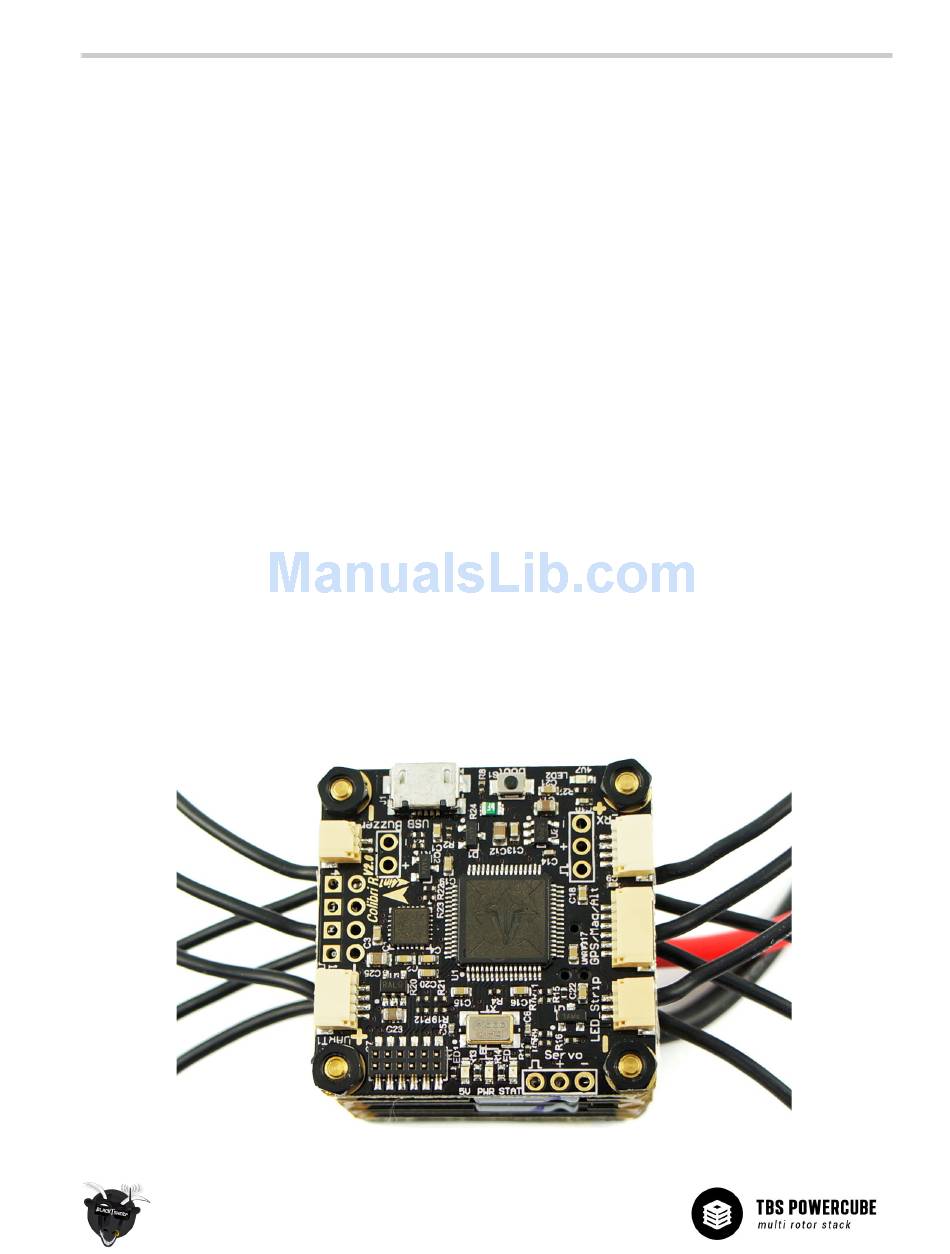

TBS COLIBRI V2 - Flight control

The TBS COLIBRI RACE edition is a barebone version of the TBS COLIBRI (debuted in the TBS GEMINI), built
specifically for the TBS POWERCUBE. Flashed by default with Cleanflight to allow maximum tuning capabilities
for racers, with multiple innovative features such as built-in IR port, MPU6500 with serial support (insanely
low looptimes!!), USB VCP, JST-SH plug&play ports, as well as solder sockets for the most critical input and
outputs for seasoned builders.
Note: ​ T BS COLIBRI V2 is only compatible with TBS PDB V2, only use V2 FC on V2 PDB.
• STM32F303 based chipset for ultimate performance
• PPM, SBUS, DSM, DSMX input (5V and 3.3V provided over internal BUS)
• 6 PWM ESC output channels (autoconnect, internal BUS)
• Choose between plug&play sockets or solder pads for R/C and buzzer
• 36x36mm standard size (30.5mm grid)
• RGB LED strip support incl. power management
• Extension port for GPS/external compass/pressure sensor
• UART serial port for peripherals (Crossfire CRSF, Blackbox, FrSky telemetry etc.)
• 5V buzzer output
• MPU6000 ​ ( NEW!) ​ accelerometer/gyro sensors
• Runs Cleanflight/ Betaflight software
• 3x status LED (DC-DC Pwr/3.3V Pwr/Status)
• Weight only 4.4g
