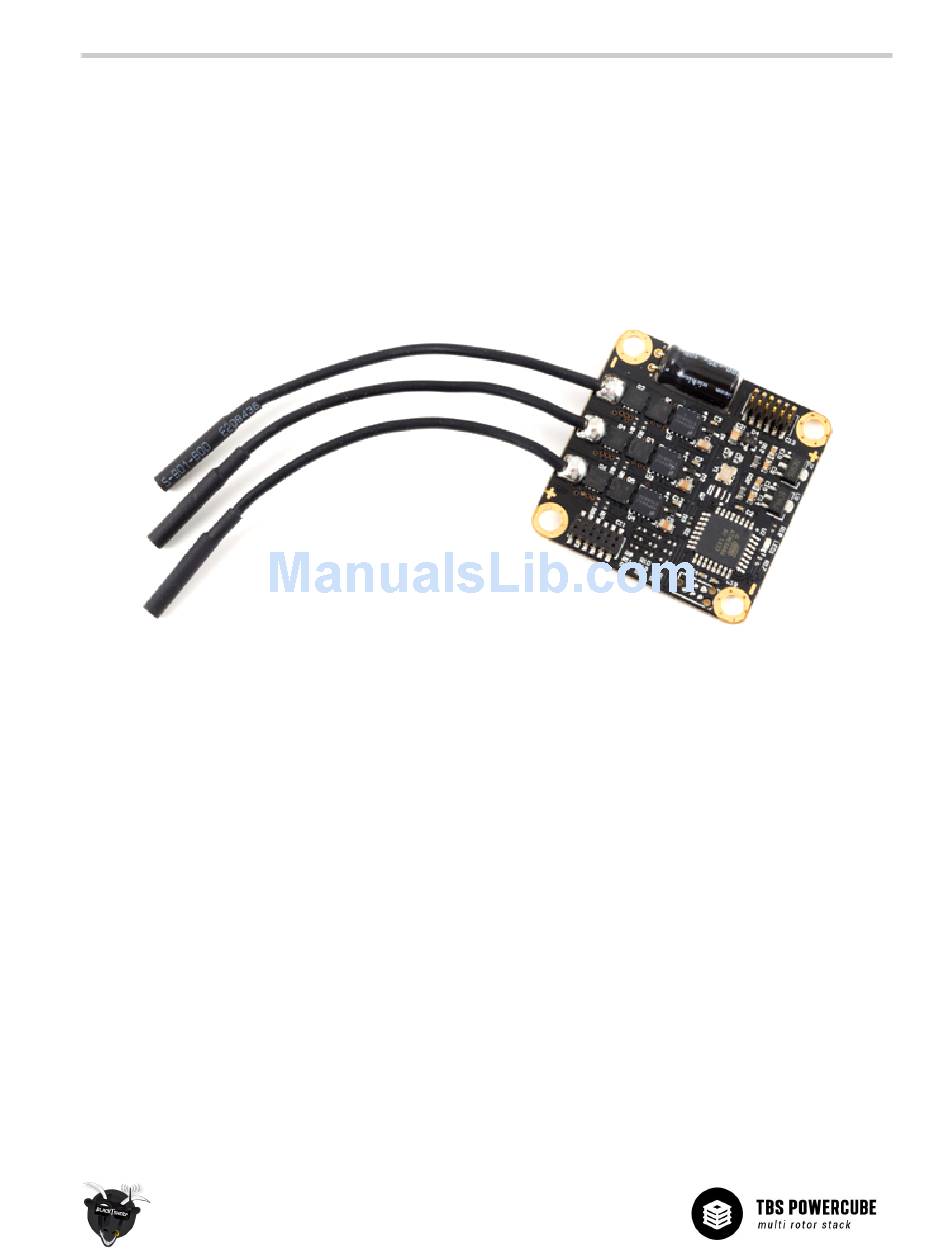

TBS BULLETPROOF 25A ESC - Speed control

The next in line of the most innovative, reliable and powerful ESC for multirotors. The first 2S to 6S capable
TBS BULLETPROOF ESC, forged and optimized for racing. The best thing about those ESCs - no soldering and a
very short manual. There is nothing to set up, configure, or solder. Simply plug your motors into the provided
2mm bullet connector sockets, check motor spin direction and you are all set. More seasoned builders and
pilots may wish to directly solder motor cables to the ESC, for greater reliability.
The ESCs stack into the TBS POWERCUBE in alternating fashion. The location in the stack determines which
motor they are assigned to - assignment starts closes to the flight controller (from #1) and downward.

Configuration

The ESCs are configured via the BLHeli Suite, using either "escprog sk [1-4]" for Cleanflight, or "1wire [1-4]" in
the Cleanflight CLI. ESC calibration is not required, and is disabled by default.
The min throttle is 1025, and max throttle is 1980, in case you have changed those values.
