2.4 Begin to place the connection tubes on both sides
of the splitter attachment. Firmly screw the black
ring nut. (Fig. 3-4).
• Every connection is identified by a letter
printed on both sides of the connection. Make
sure to match the letters in order to correctly
assemble the microscope.
2.5 Repeat the same procedure on the other side of
the splitter.
2.6
Insert the second part of the extension tube (Fig.
6).
• At the end of the first extension tube there is
a lens (Fig. 5). Make sure it is free from dirt,
dust or other contaminants before to proceed
with the assembling of the second extension
tube.
2.7
Fully insert the second extension tube in
the right position. Using the provided Allen
wrench (small one) lock the fixing screws
(1) to block the extension tube (Fig. 6).
Page 3

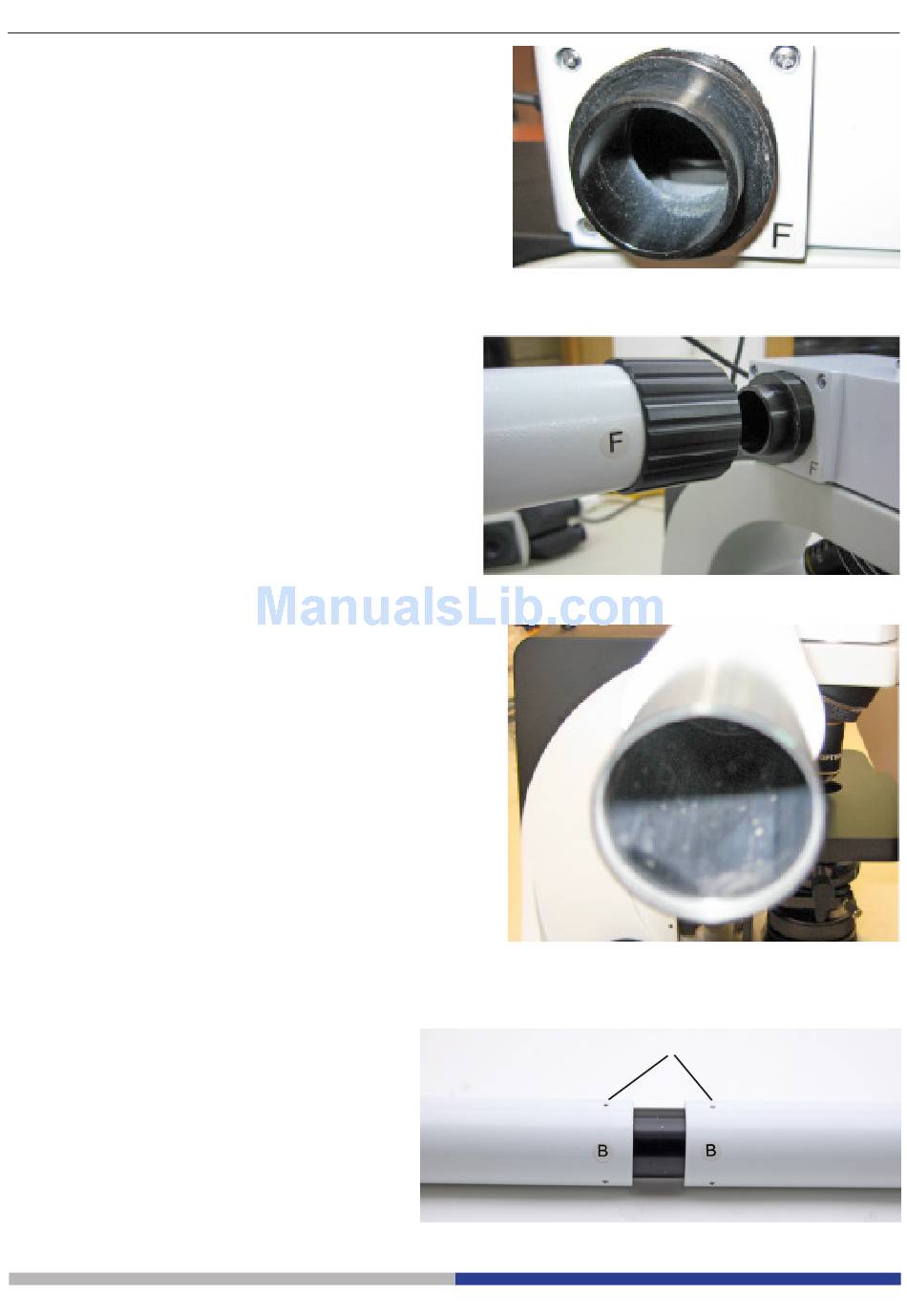

Fig. 3
Fig. 4
Fig. 5
(1)
Fig. 6
