35SD21 35SD25 35SD27
Connections Smart Deck Table
Assembly Instructions
PARTS LIST
Qty
Part#
Description
1
Wood Top and Upper Leg Assembly
2
022-2361
Right/Left Lower Legs
1**
010-3026
Lower Inner Bracket
010-4977
Lower Inner Bracket for MT Models
**(2) for Model 35SD25 & 35SD27
1**
010-3027
Bottom Bracket
**(2) for Model 35SD25 & 35SD27
1**
010-3028
Top Bracket
**(2) for Model 35SD25 & 35SD27
1**
010-3030
Upper Outer Bracket
010-4979
Upper Outer Bracket for MT Models
**(2) for Model 35SD25 & 35SD27
1**
010-3031
Upper Inner Bracket
010-4978
Upper Inner Bracket for MT Models
**(2) for Model 35SD25 & 35SD27
TABLE BACK EDGE

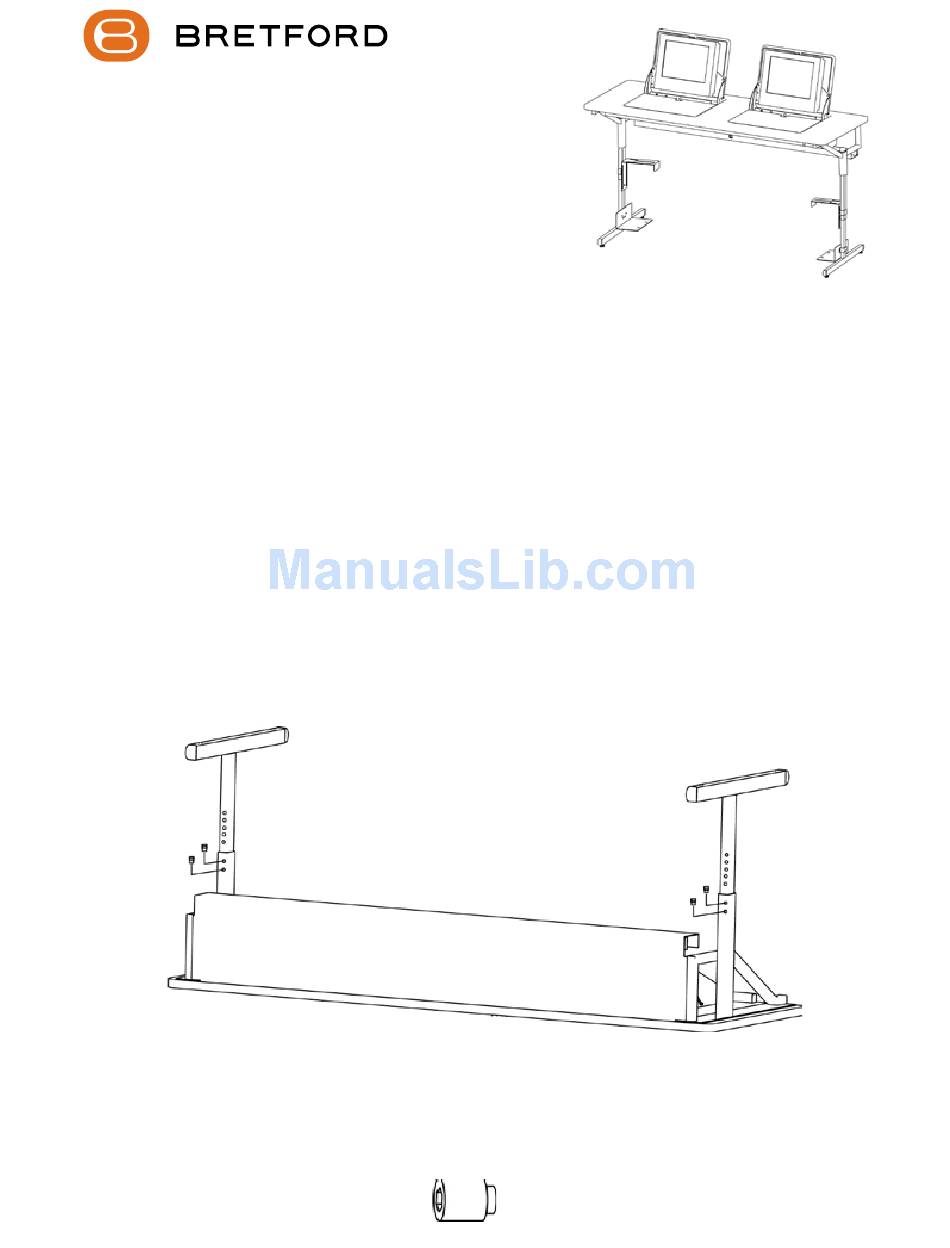

CAREFULLY lay the wood top/leg assembly on a carpeted surface as shown. Insert lower legs
into upper legs with holes facing the back edge as shown and set desired height. Insert set
screws (AA) into legs and tighten with Allen wrench (provided).
HARDWARE LIST
Ref
Qty
Part#
AA
4
030-0396
BB
4
015-0045
CC
5**
030-0272
DD
5**
030-0207
EE
1**
031-1822
FF
1**
031-1823
1
030-0397
STEP 1
AA
Description
3/8-16 x 1/2" Set Screws
Non-Swivel Glides
1/4-20 x 1/2" Carriage Bolts
**(10) for Model 35SD25/27
1/4-20 Flange Nuts
**(10) for Model 35SD25/27
Velcro Hooks
**(2) for Model 35SD25/27
Velcro Loops
**(2) for Model 35SD25/27
3/16 Standard Allen Wrench
1
Advertisement
Related Manuals for Bretford 35SD27
Summary of Contents for Bretford 35SD27
- Page 1 Lower Inner Bracket 030-0272 1/4-20 x 1/2” Carriage Bolts 010-4977 Lower Inner Bracket for MT Models **(10) for Model 35SD25/27 **(2) for Model 35SD25 & 35SD27 030-0207 1/4-20 Flange Nuts 010-3027 Bottom Bracket **(10) for Model 35SD25/27 **(2) for Model 35SD25 & 35SD27...
- Page 2 STEP 2 Position the bottom bracket (with notch) and the lower inner bracket to the bottom half of your pedestal leg as shown. LOOSELY attach the brackets around the pedestal with bolts (CC) and nuts (DD). STEP 3 Position the top bracket and the upper inner bracket around the upper half of your pedestal as shown.
- Page 3 STEP 4 Position the upper outer bracket over the upper inner bracket as shown. LOOSELY attach the brackets together with bolts (CC) and nuts (DD). Determine the correct height distance needed for your CPU and TIGHTEN THE TOP AND BOTTOM BRACKETS IN PLACE. Attach Velcro piece to inside of outer bracket...
- Page 4 MOUNTING THE MONITOR FIGURE 2 FIGURE 1 Align monitor with holes and attach Remove the 6 screws and detach wood top STEP 6 Remove the 6 screws shown in FIGURE 1. Detach the wood top and set aside. Attach your monitor as shown in FIGURE 2. Reattach the wood top. WHEN LOCK DOES NOT FULLY CATCH ON LATCH, ADJUSTMENTS SHOULD MADE.
