DREAM ON ME INC.
1532 S WASHINGTON AVE
PISCATAWAY TOWNSHIP
NJ 08854
TEL: 732-752-7220
CUSTOMER CARE: +1 (732) 366-1788

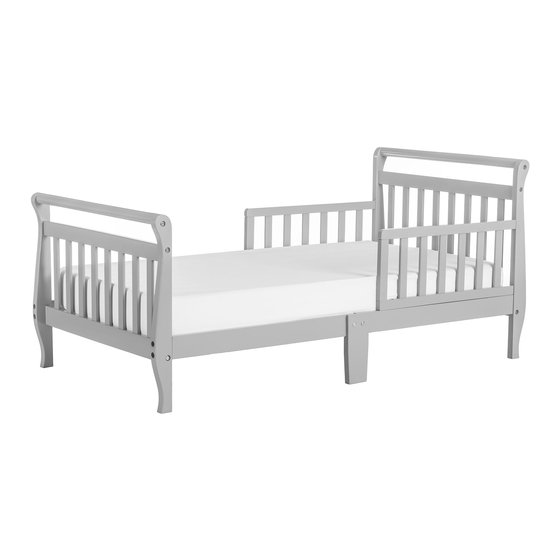

DOUBLE BAR TODDLER
BED STYLE NO: 642
CAUTION: ANY MATTRESS USED IN THIS TODDLER BED
MUST BE AT LEAST 51-5/8 INCHES(131CM) BY 27-1/4
INCHES (69CM) WITH A THICKNESS OF AT LEAST 4
INCHES(10CM) BUT NOT EXCEEDING 5 INCHES(12.5CM)
INFANTS CAN SUFFOCATIE IN GAPS BETWEEN CRIB
SIDES AND A MATRESS THAT IS TOO SMALL.
KEEP INSTRUCTIONS FOR FUTURE USE
READ ALL INSTRUCTIONS BEFORE ASSEMBLY
CAUTION: BEFORE USING THIS TODDLER BED, RECHECK ALL
SCREWS TO BE SURETHAT THEY ARE TIGHTENED SECURELY.
A PERIODICAL CHECK SHOULD BE MADE TO CONFIRM THAT
ALL SCREWS & NUTS REMAIN TIGHT.
DO NOT SUSPEND STRINGS OVER THE TODDLER BED OR
ATTACH STRINGS TO TOYS.
WARNING:
PAGE 1
MADE IN CHINA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dream On Me 642
Summary of Contents for Dream On Me 642
- Page 1 NJ 08854 TEL: 732-752-7220 CUSTOMER CARE: +1 (732) 366-1788 DOUBLE BAR TODDLER BED STYLE NO: 642 MADE IN CHINA CAUTION: ANY MATTRESS USED IN THIS TODDLER BED MUST BE AT LEAST 51-5/8 INCHES(131CM) BY 27-1/4 INCHES (69CM) WITH A THICKNESS OF AT LEAST 4 INCHES(10CM) BUT NOT EXCEEDING 5 INCHES(12.5CM)
- Page 2 JOINTS,MISSING PARTS,OR SHARP EDGES. DO NOT USE THE TODDLER BED IF ANY PARTS ARE MISSING OR BROKEN.ASK YOUR DEALER OR WRITE TO DREAM ON ME FOR REPLACEMENT OF THE PARTS AND INSTRUCTIONAL LITERATURE IF NEEDED. DO NOT SUBSTITUTE ANY PARTS.
-
Page 3: Component Parts
HARDWARE AND TOOL DIAGRAM (c) Allen Wrench 1 PC (b) Barrel Nut 18 PCS (a) Bolt 3” 18 PCS (h) L Metal Plate 2PCS (d) Bolt 1-3/5” 12 PCS （e）1-3/5” Wood Dowel 20 PCS （f）Selfdrilling screw 8 PCS FLAT HEAD SCREWDRIVER (g) Stopper 16PCS （j）2-2/5”... - Page 4 STEP# 1 STEP# 2 (A2) (A1) Press the stopper(g) into the bottom Using the bolt (d) and the wood dowel rail with warning label(H) with slat (D), (e) to connect the left leg (A1) and right leg (A2) to top rail(G) and rail (H); connect the slat(D) to the rail without Note: put the rail with waring label down warning label (H).
- Page 5 STEP# 5 Connect the side bar (J1&J2) to the side bar (K) by wood dowels (j). (J1) (J2) STEP# 6 Connect the side bar (J1&J2) to the side bar (K) by L metal plates (h) and selfdrilling screws (f). (J1) (J2) Note: When attach the L metal plates (h), make sure the holes on the L metal plates (h) match to the holes on the side...
- Page 6 STEP# 7 Insert the cross bar (L&M) to the left side bar (J1&K). then attach the split legs (F) to the cross middle bar(L) by bolts (a) and barrel nuts (b). (J1) STEP# 8 Insert the cross bar (H&G) to the right side bar (J2&K) .
- Page 7 STEP# 9 Connect the headboard Leg (A1) to the left side bar (J1) using bolts (a) and Barrel Nuts(b).The right side bar (J2) use the same way. (A1) (A2) (J1) (J2) STEP# 10 Connect the side bar (K) to the footboard Leg (B1) by using bolts (a) and barrel nuts (b) .The footboard leg (B2) use the...
- Page 8 STEP# 11 1.Connect left bed rail (C1) to the left side bar (J1) using bolt (d),Then connect the left bed rail (C1) to the headboard leg (A1) by using bolts (a)&(d) (A1) and barrel nut (b). 2.Connect right bed rail (C2) to the right (C1) side bar (J2) using bolt (d),Then connect the right bed rail (C2) to the headboard...
